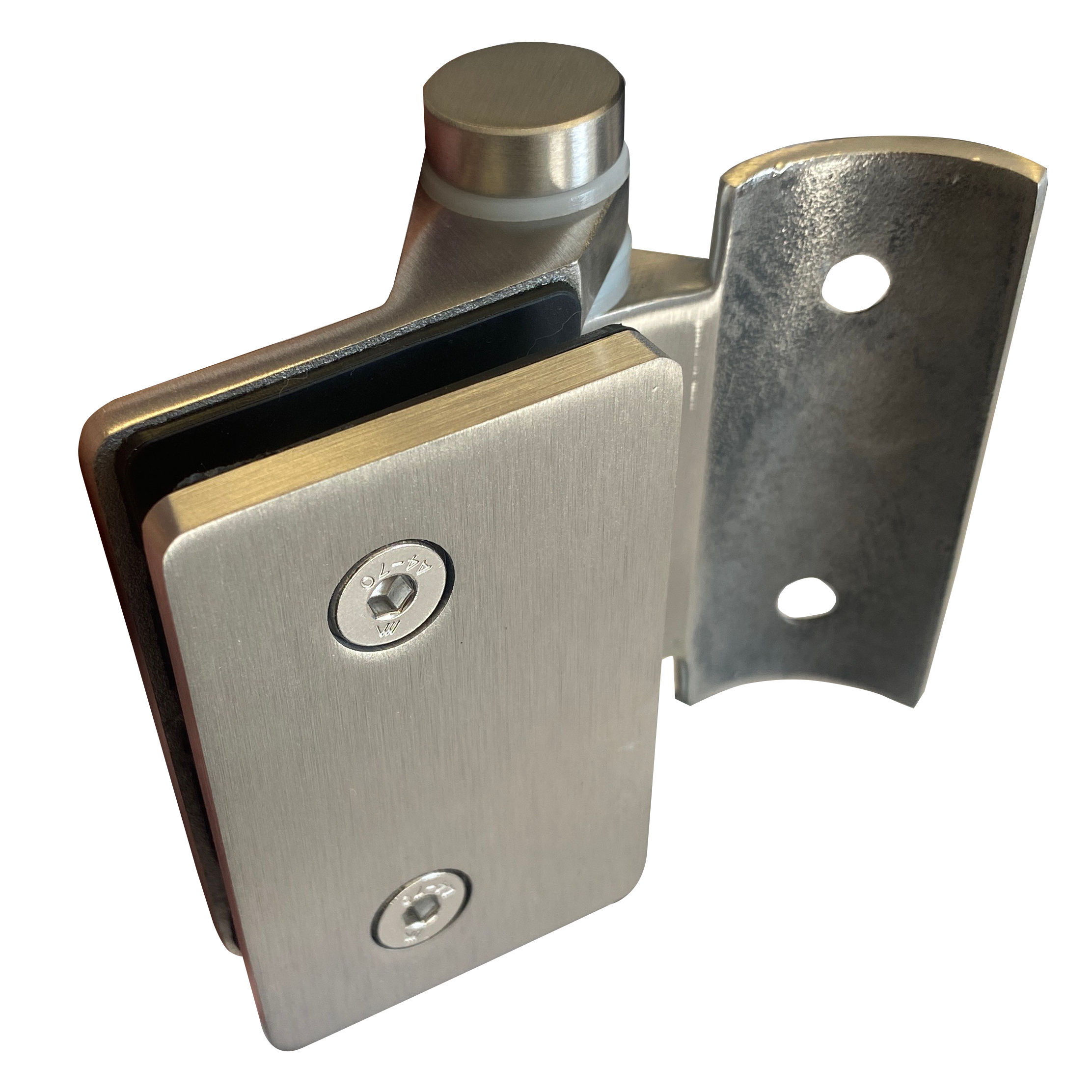

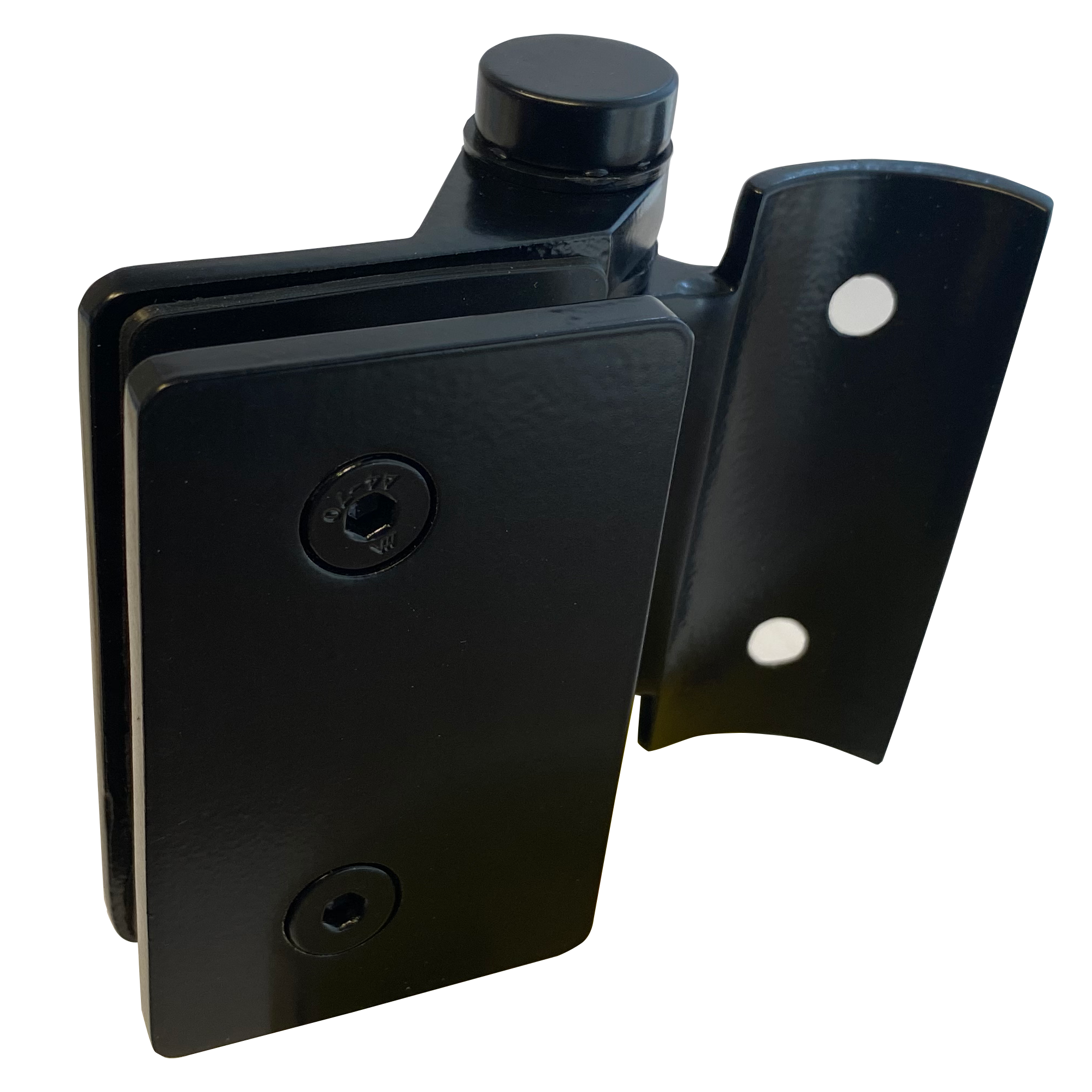

The DIVE Series Heavy-Duty Glass-to-Round Post Hinge is a robust, spring-loaded hinge designed for secure pool fencing installations. Engineered with high-grade stainless steel, it provides long-lasting durability and reliable closing action for residential and commercial applications.

Material: 316 Stainless Steel

Profile: Square
Product Length: 3-3/4" (94.2mm)
Product Width: 4-1/8" (104.07mm)
Product Height: 1-7/8" (48mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Tempered Glass

Includes: Screws, Gaskets
Gasket Material: EPDM (Black)
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: 1/4" (6mm) Hole

Adjustability Type: Tilt (Angular)
Tilt Adjustment: 180°

Mounting Type: Glass Mount

Minimum Height Requirements:
Single Residential Property: 47.24" (1.2m)
Multiple Residential Property: 70.87" (1.8m)
Non-Residential Property: 70.87" (1.8m)
Maximum Glass Width: 48"
Maximum Weight Capacity: 50 kg (110 lbs)

Tension Adjustment Instructions

Remove the Cone and Grub Screw
Use an Allen key to unscrew and remove the grub screw on the hinge side.
Adjust the Tension Pin
Turn the tension pin clockwise to the next hole in the tension plate to increase tension.
If needed, turn anticlockwise to reveal the tension pin for adjustment.
Re-tighten the Grub Screw
After adjusting the tension pin, securely tighten the grub screw with the Allen key.
Repeat as Needed
Perform this adjustment up to six times (360° in total).
