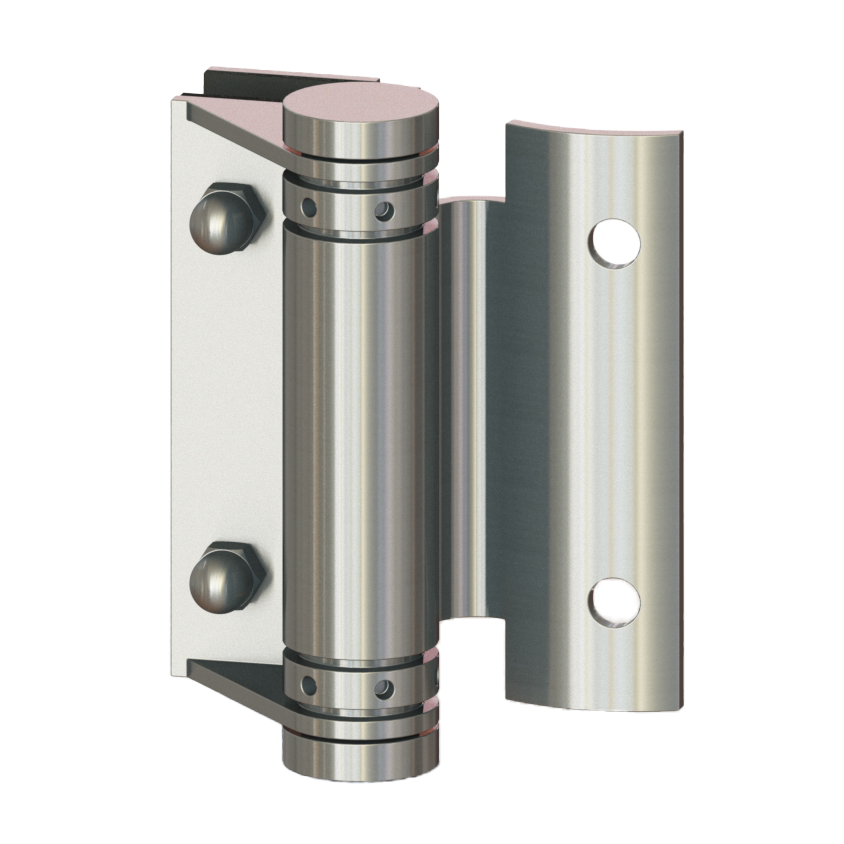

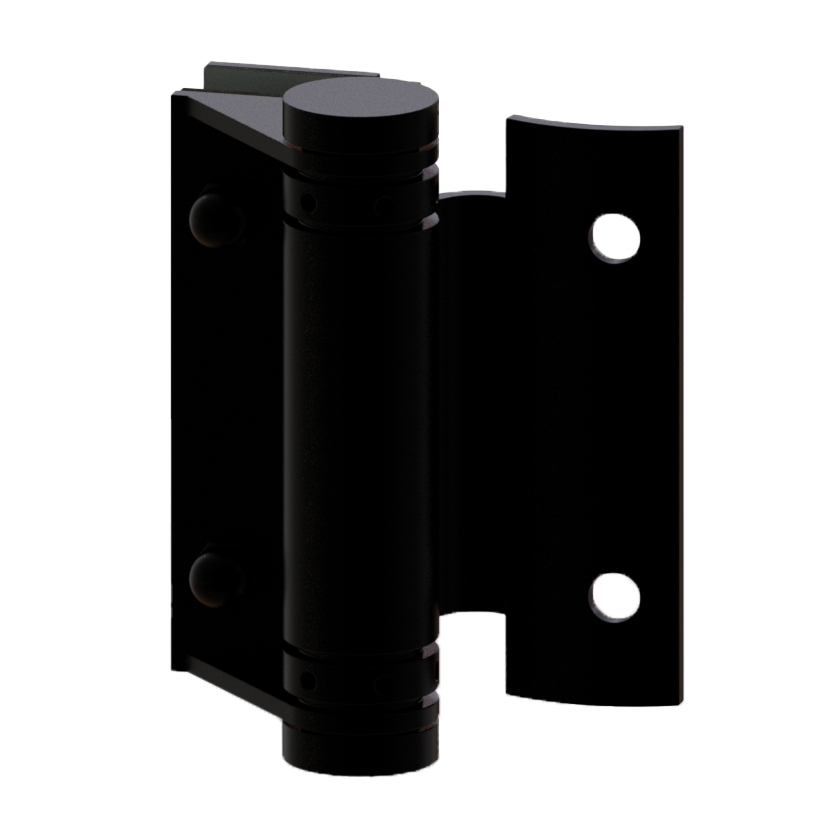

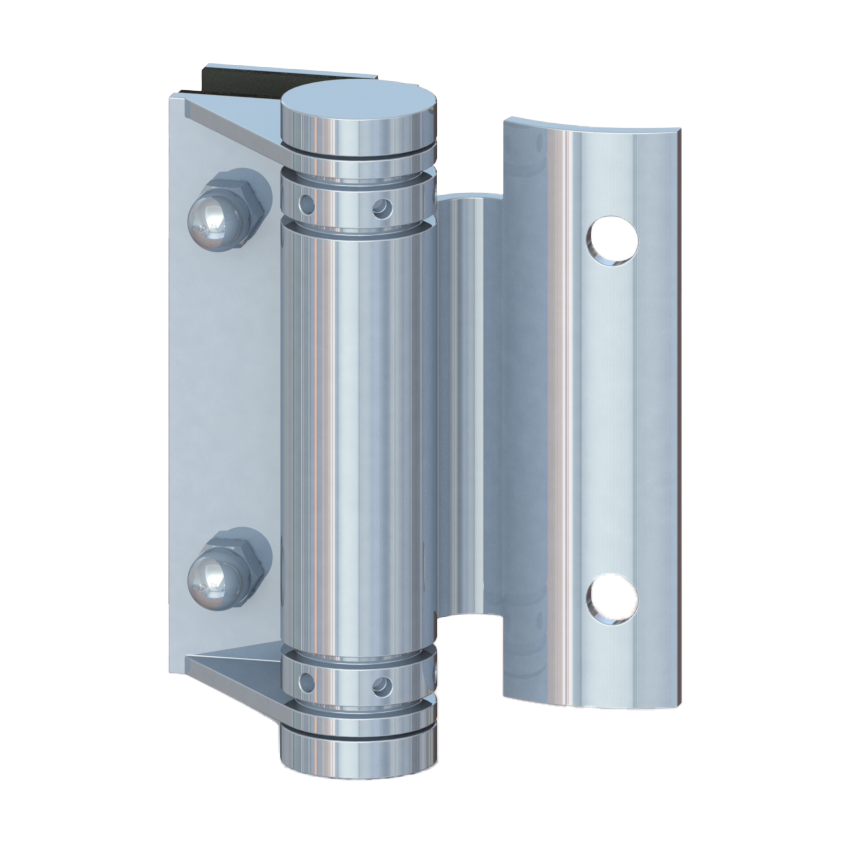

The DIVE Series Pool Fencing Hinge is a high-quality stainless steel hinge engineered for secure glass-to-round post installations. Designed for durability and corrosion resistance, it is ideal for both residential and commercial pool fencing applications.

Material: 316 Stainless Steel

Profile: Square
Product Length: 3-1/2" (90.2mm)
Product Width: 3" (77.01mm)
Product Height: 2" (49.99mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Tempered Glass

Includes: Screws, Gaskets, Adjustment / Tension Pin
Gasket Material: EPDM (Black)
Gasket Thickness: 1/16" (2mm)

Mounting Fastener Size: 1/4" (6mm) Hole

Adjustability Type: Tilt (Angular)
Tilt Adjustment: 180°

Mounting Type: Glass Mount

Minimum Height Requirements:
Single Residential Property: 47.24" (1.2m)
Multiple Residential Property: 70.87" (1.8m)
Non-Residential Property: 70.87" (1.8m)
Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
