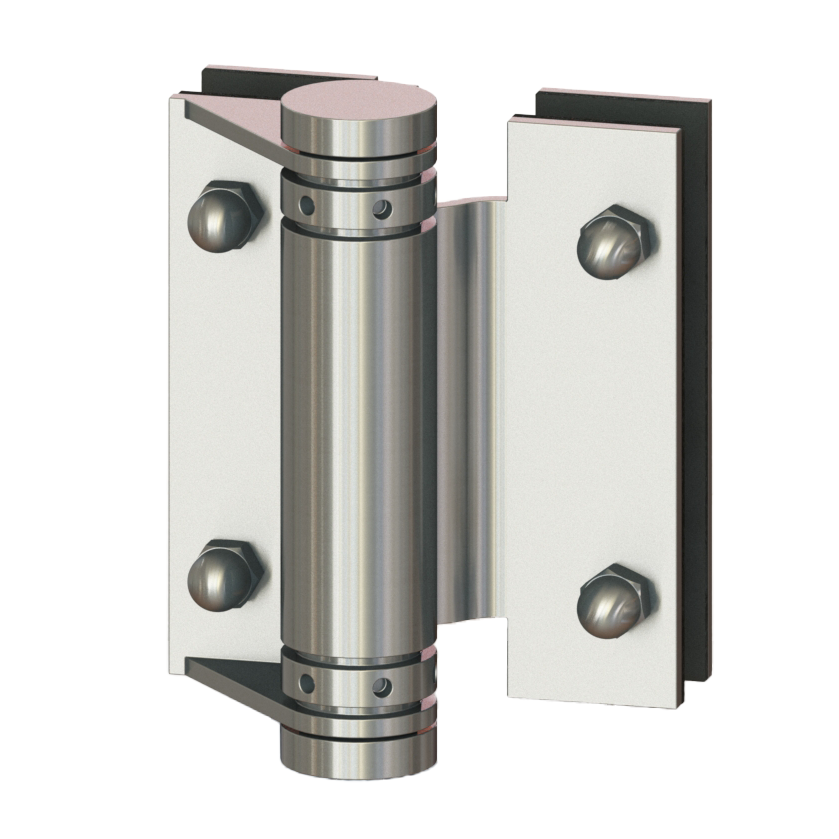

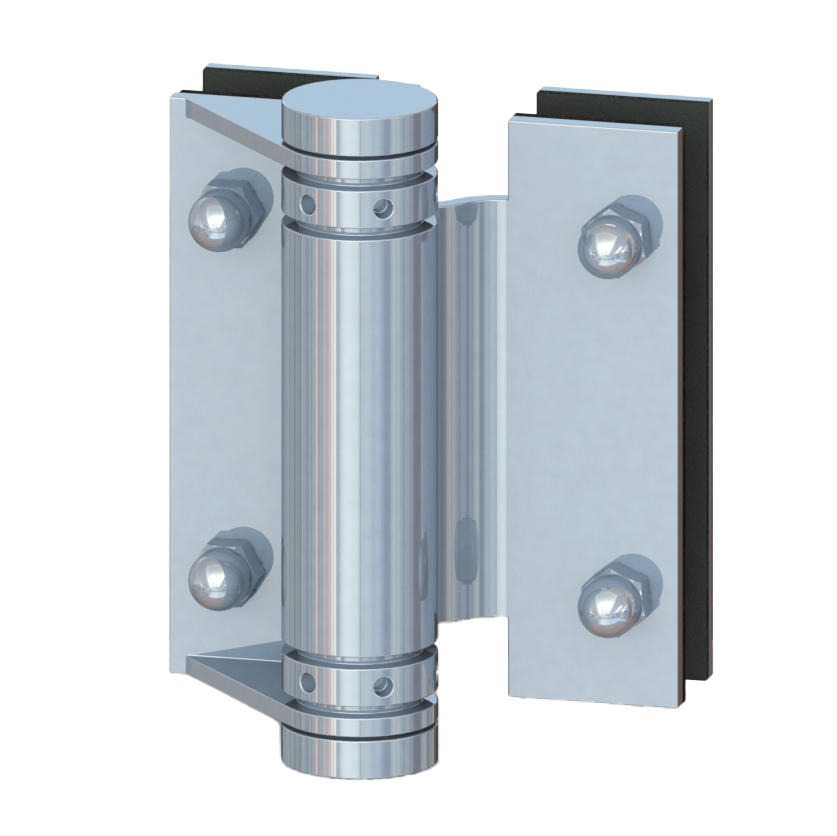

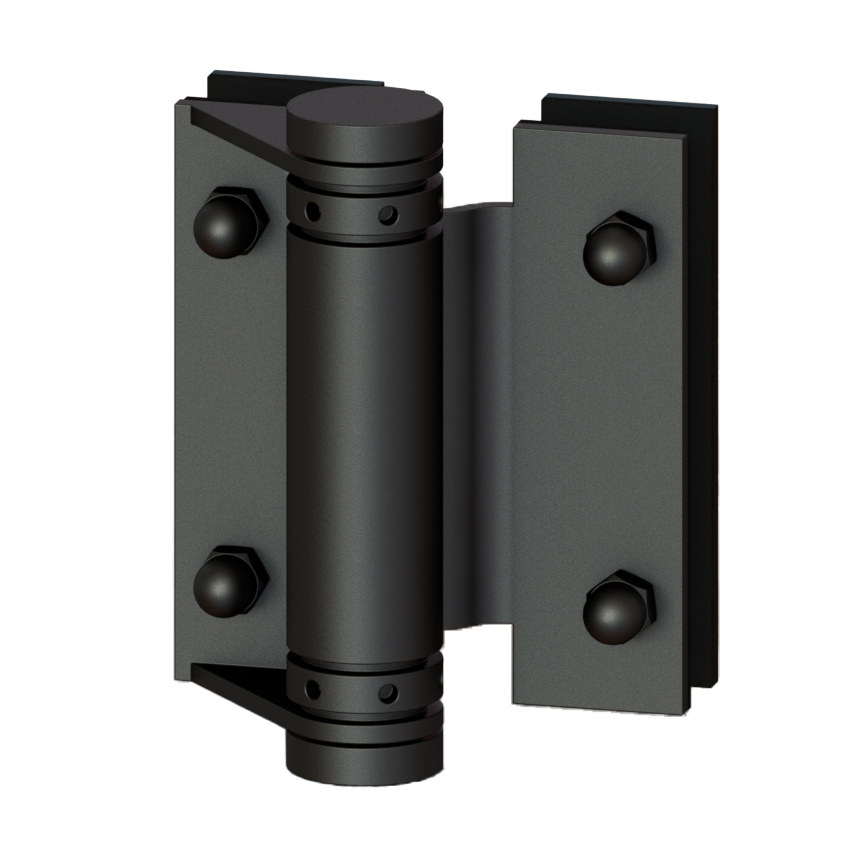

The DIVE Series Pool Fencing Hinge is a premium stainless steel hinge designed for seamless glass-to-glass installations in pool fencing systems. Built for durability and corrosion resistance, it provides a secure and stylish solution for both residential and commercial applications.

Material: 316 Stainless Steel

Profile: Square
Product Length: 3" (76mm)
Product Width: 2-5/8" (66.61mm)
Product Height: 1-5/8" (41.9mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Tempered Glass
Glass Fabrication: 5/8" (16mm) Hole

Includes: Screws, Gaskets, Adjustment / Tension Pin
Gasket Material: EPDM (Black)
Gasket Thickness: 1/16" (2mm)

Mounting Fastener Size: M6 Threaded

Adjustability Type: Tilt (Angular)
Tilt Adjustment: 180°

Mounting Type: Glass Mount

Minimum Height Requirements:
Single Residential Property: 47.24" (1.2m)
Multiple Residential Property: 70.87" (1.8m)
Non-Residential Property: 70.87" (1.8m)
Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
