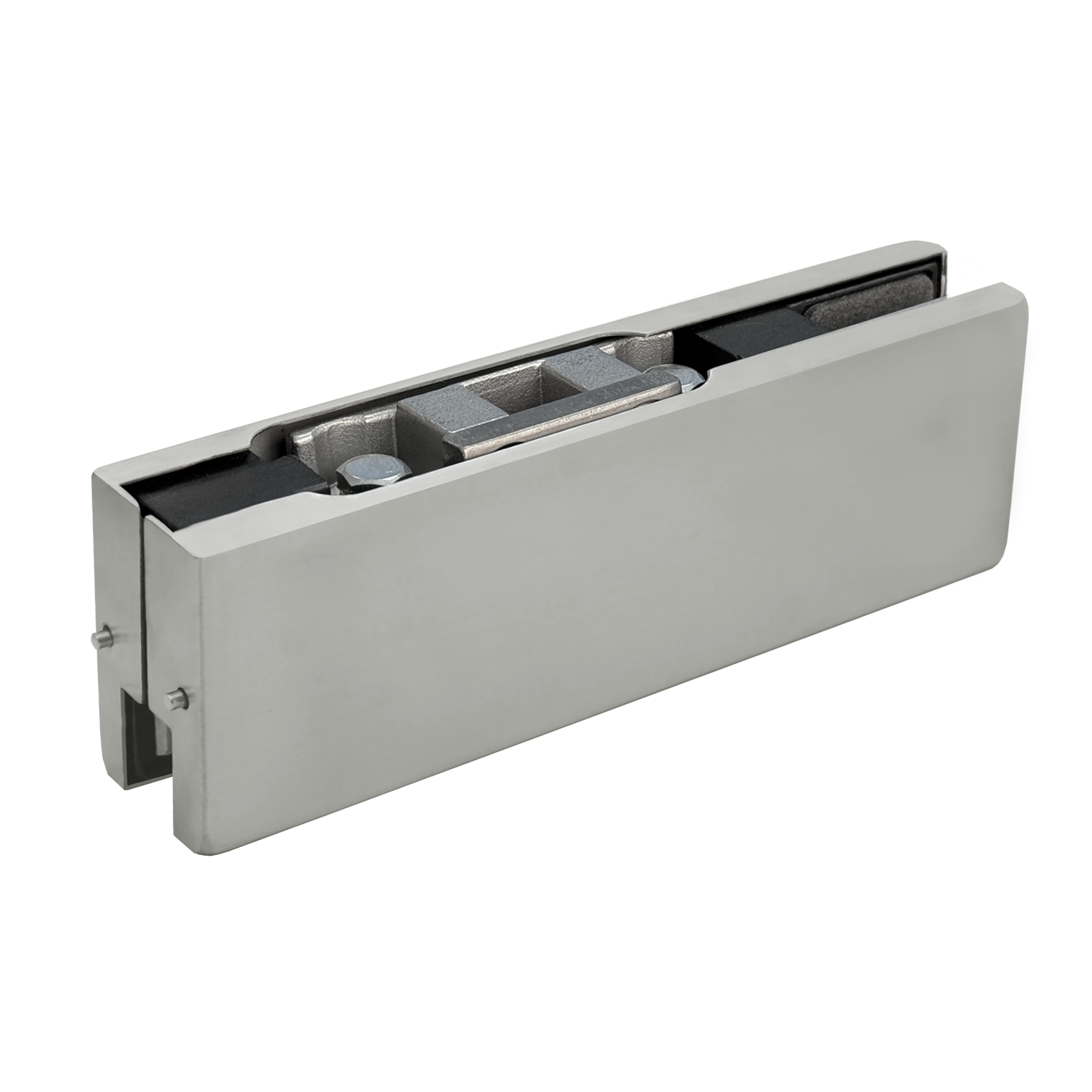

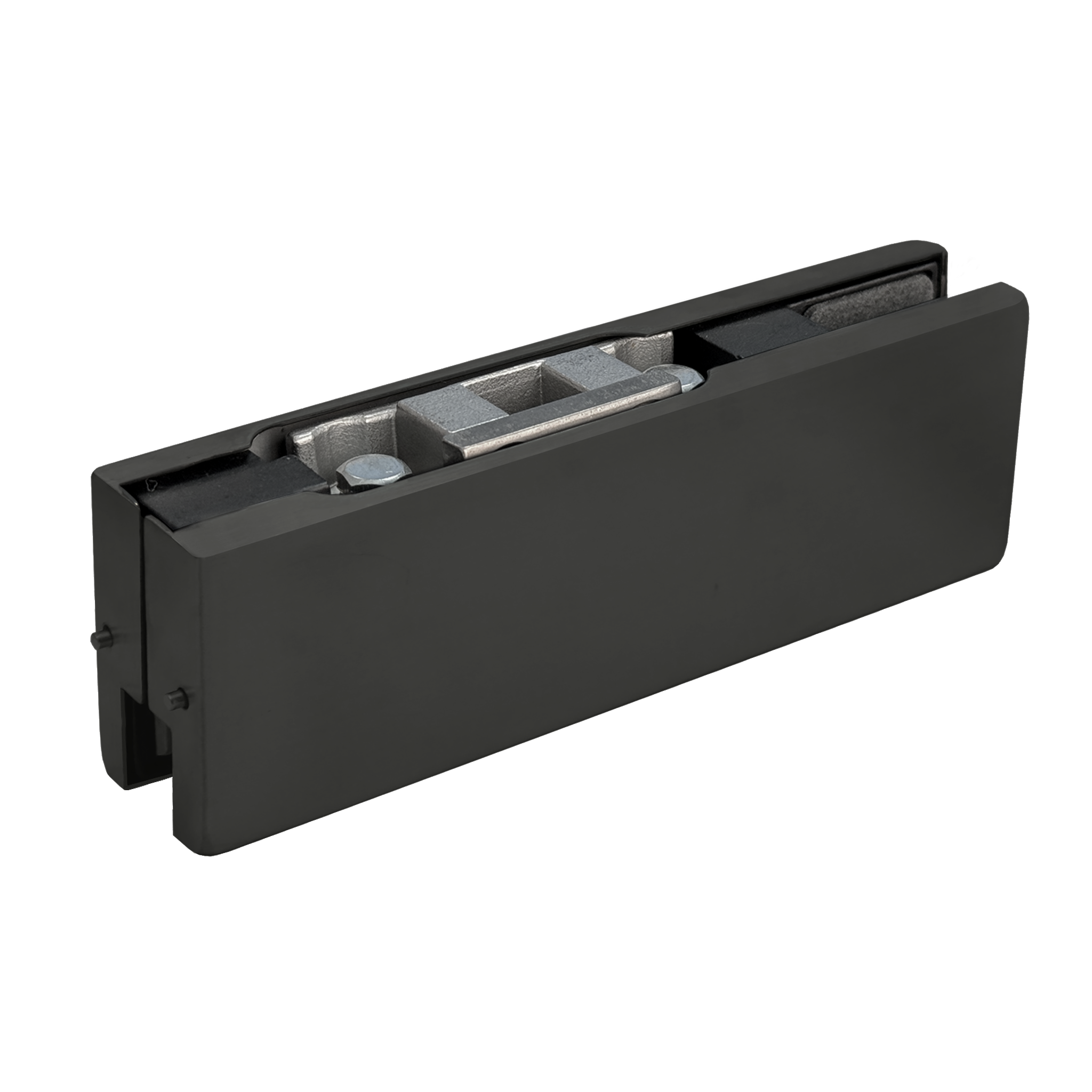

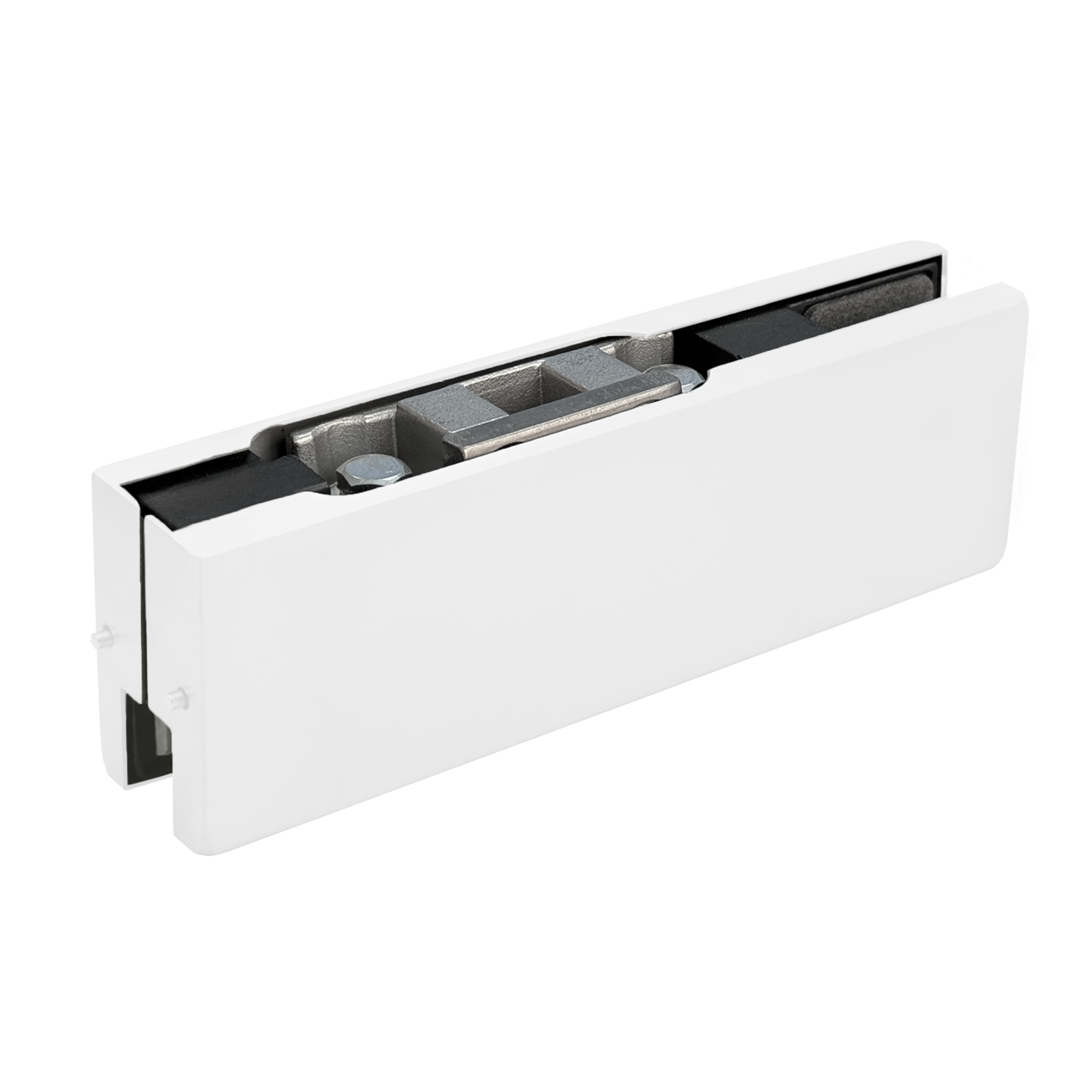

The GGH PFIT Series Top Patch with Adjustable Closer Insert is designed for frameless glass doors utilizing concealed door closer systems where precise door alignment is required. Featuring an aluminum body with a stainless steel 304 cover plate, this patch fitting incorporates an adjustable insert that allows fine-tuning during installation and maintenance. Its design provides a secure connection between the glass door and concealed closer hardware, making it ideal for storefront entrances, office doors, and other commercial glass door applications.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 6-1/2" (164mm)
Product Width: 2" (51mm)
Product Height: 1-3/8" (33.6mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 194 lbs. (88 kg)

Tested Cycles: 500,000 Operations

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
