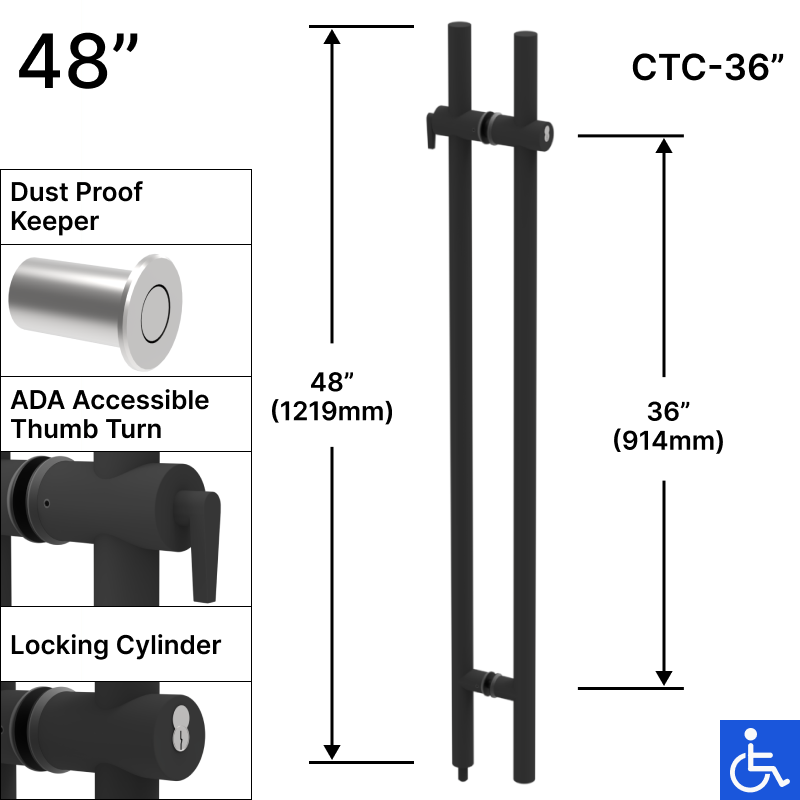

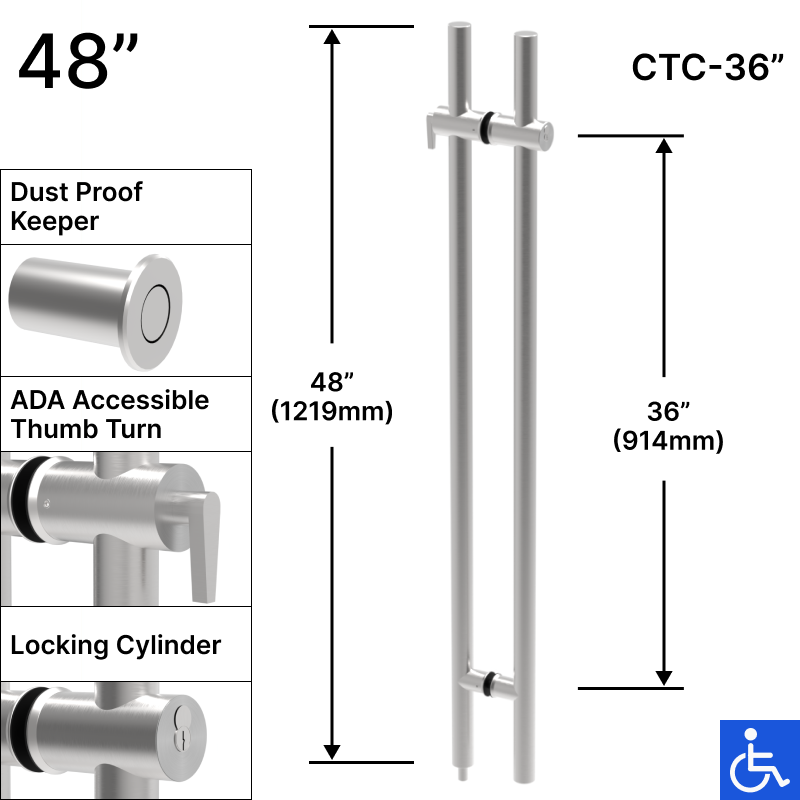

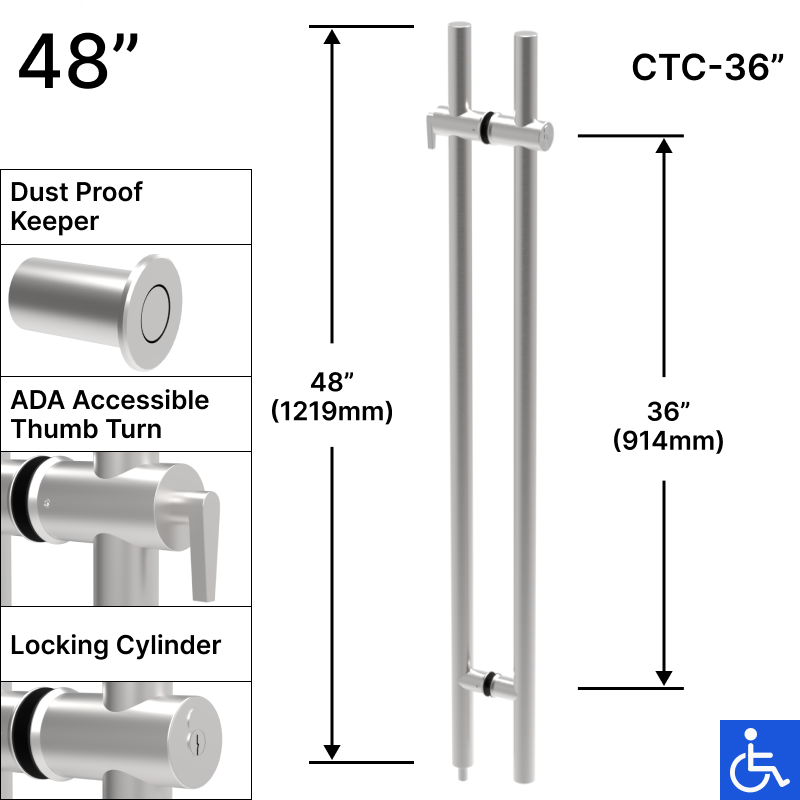

The GGH Locking Ladder Pull Handle combines a premium architectural ladder pull with an integrated locking system for frameless glass doors. Manufactured from 304 stainless steel, this back-to-back pull features a concealed deadbolt mechanism with keyed operation and secure floor locking functionality. Suitable for commercial entrances, office doors, retail storefronts, and other high-traffic applications where both security and appearance are important.

More Product Information

Material: 304 Stainless Steel

Profile: Tubular / Round
Product Length: 48" (1219mm)
Product Width: 8-1/16" (205.25mm)
Product Height: 2" (50mm)
Product Diameter: 1-3/8" (35mm)

Glass Thickness Range: 1/2" to 3/4" (12mm to 19mm)
Glass Type: Tempered Glass
Glass Fabrication: 5/8" (15.88mm), 1-1/4" (32mm) Holes

Includes: Bottom Keeper, Keys, Allen Keys
Gasket: Black Interior Gaskets
Gasket Material: PP
Gasket Thickness: 1/16" (1.6mm)

Mounting Fastener Size: M8 Threaded

Mounting Type: Glass Mount

Hole To Hole (CTC): 36"
Keyhole / Thumb Turn Spacing: 3-1/2" (Keyhole), 4-3/16" (Thumb Turn)

Compare To: LLHB48

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
