The GGH Single-Sided Ladder Pull Handle is designed for glass, wood, and aluminum door applications requiring a clean architectural pull handle with single-sided mounting. Manufactured from 304 stainless steel, this round tubular ladder pull provides reliable performance and a modern appearance for commercial entrances, office doors, retail storefronts, and other glass door systems.

More Product Information

Material: 304 Stainless Steel

Profile: Tubular / Round

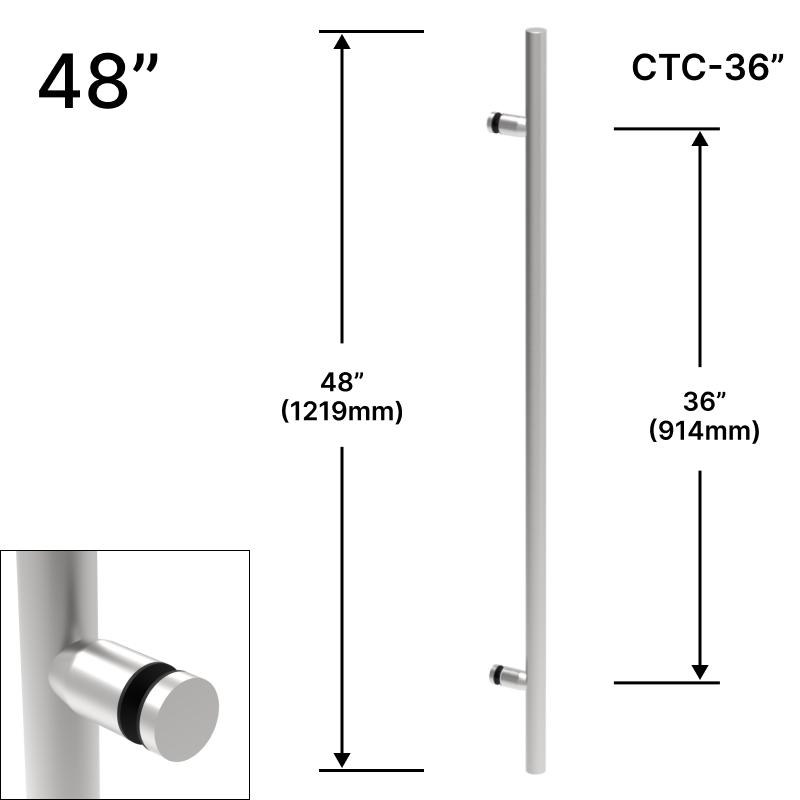

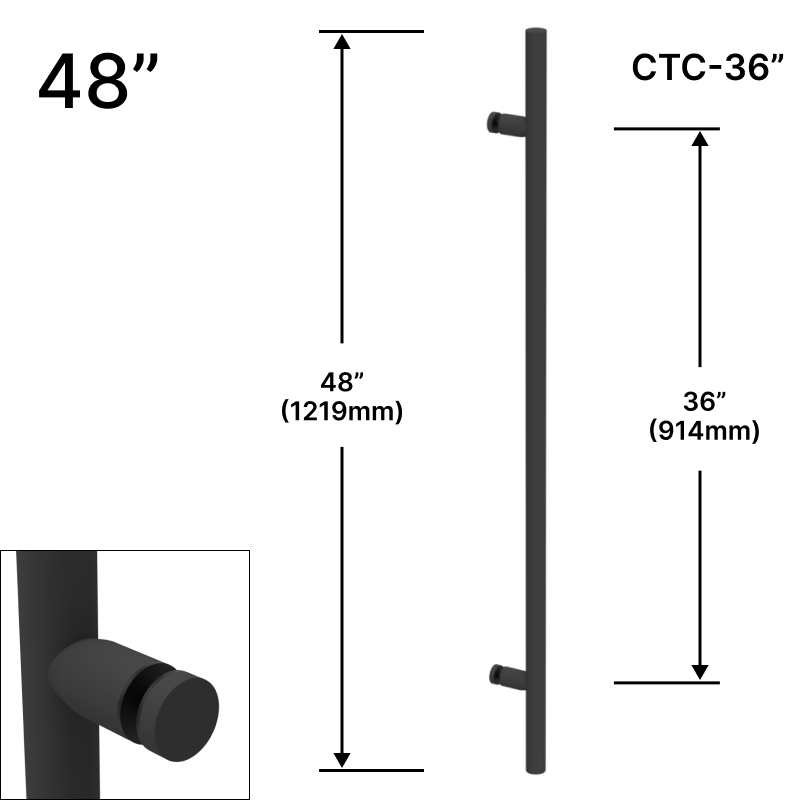

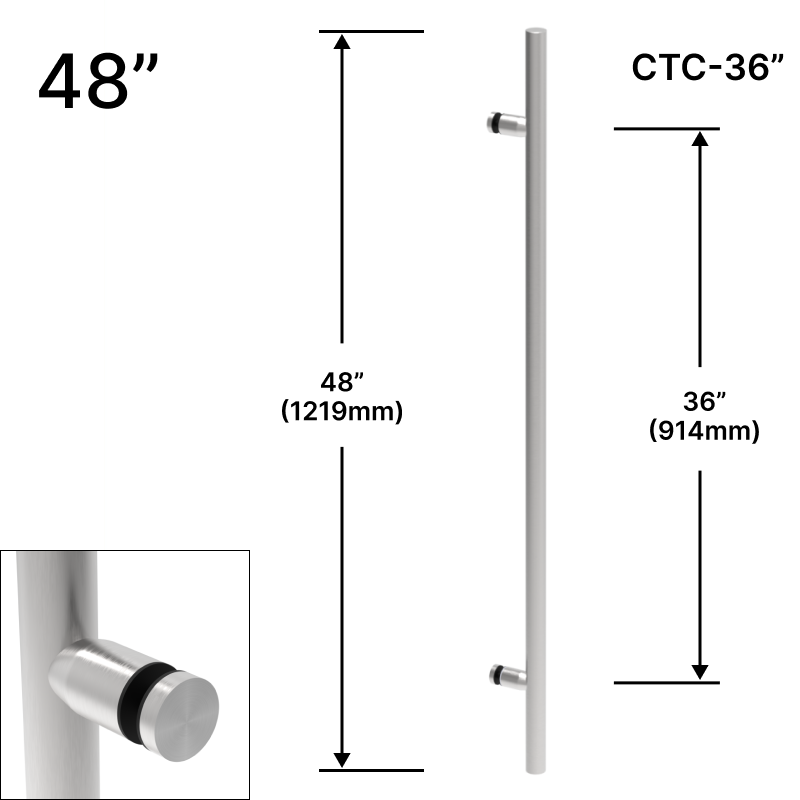

Product Length: 48" (1219mm)
Product Width: 3-5/8" (92.5mm)
Product Diameter: 1-1/4" (32mm)

Glass Thickness Range: 3/8" to 3/4" (10mm to 19mm)
For Wood/Aluminum Door Thickness: 1-3/4" (44mm) to 2" (50.8mm) thick with longer thru bolts (SCREW-LADDERPULL) available upon request
Glass Type: Tempered Glass
Glass Fabrication: 5/8" (15.88mm) Hole

Includes: Allen Keys
Gasket: Black Interior Gaskets
Gasket Material: PP
Gasket Thickness: 1/16" (2mm)

Mounting Type: Glass Mount, Single-Sided

Hole To Hole (CTC): 36"

Compare To: 48LHS

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
