The GGH Single-sided Ladder Pulls provide a sleek and versatile solution for residential and commercial doors. Constructed from high-quality 304 Grade Stainless Steel, these ladder pulls offer both durability and a refined aesthetic, making them suitable for separate entry-exit or double door environments. Designed for easy back-to-back mounting, they are compatible with 3/8" to 3/4" (10mm - 19mm) thick tempered glass doors and are ideal for use on wood and aluminum doors with optional thru bolts for thicker door requirements.

Available in multiple sizes and finishes, GGH Straight Style Ladder Pulls deliver both style and reliable performance, enhancing the look and functionality of a variety of door types and architectural settings.

More Product Information

Material: 304 Stainless Steel

Profile: Tubular / Round

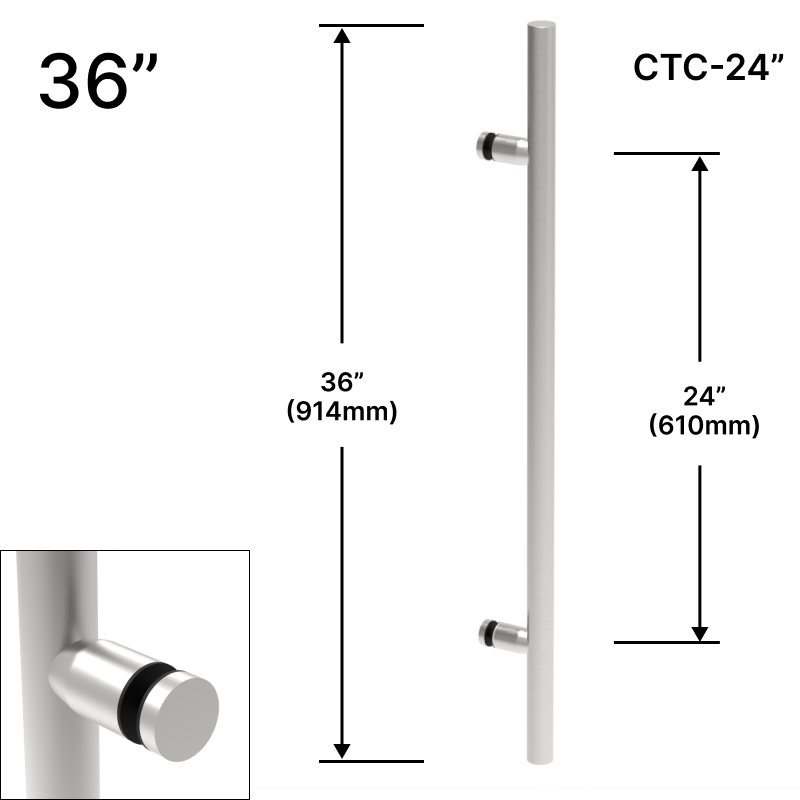

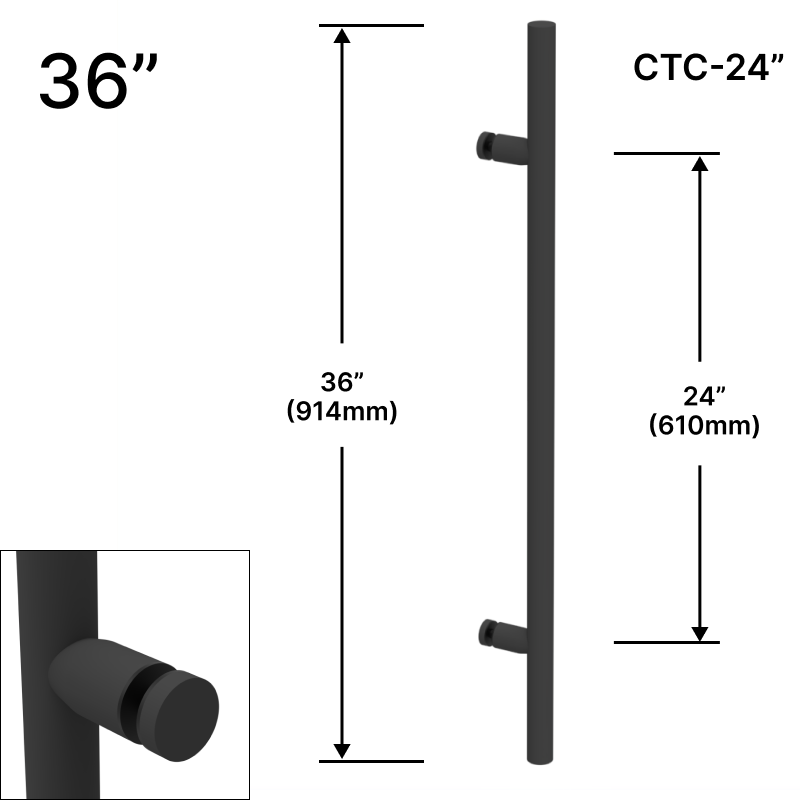

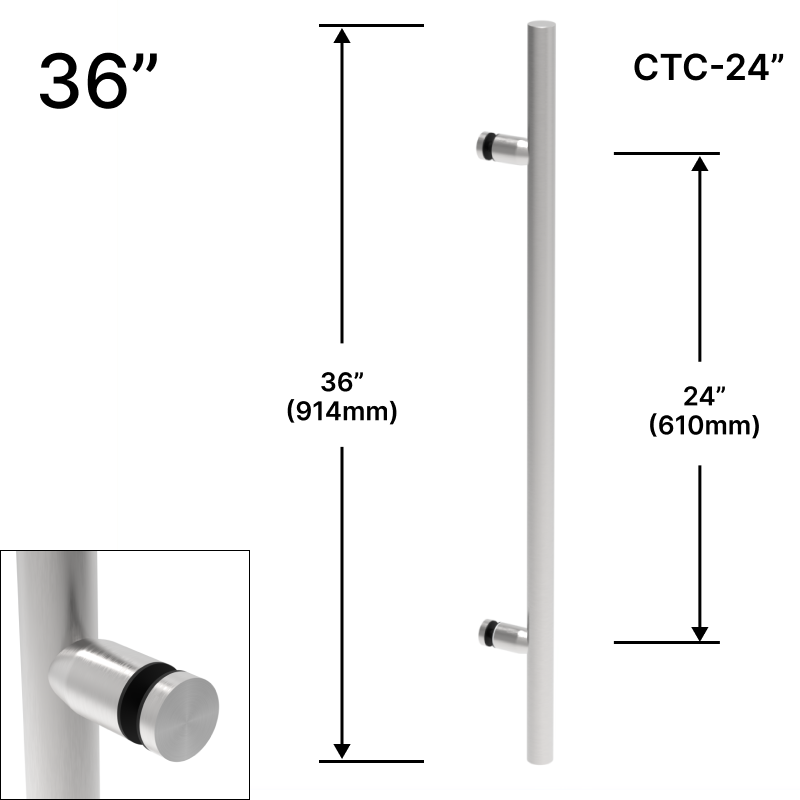

Product Length: 36" (914mm)
Product Width: 3-5/8" (92.5mm)
Product Diameter: 1-1/4" (32mm)

Glass Thickness Range: 3/8" to 3/4" (10mm to 19mm)
Glass Type: Tempered Glass
Glass Fabrication: 5/8" (15.88mm) Hole

Includes:
Ladder Pull includes hardware for 3/8" to 3/4" (10 to 19mm) thick tempered glass with standard 1-7/16" (37.00mm) threaded rod connectors.
Allen keys are included for easy installation.
Gasket: Black Interior Gaskets
Gasket Material: PP
Gasket Thickness: 1/16" (2mm)

Additional [SCREW-LADDERPULL] Ladder Pull - M8 x 3-in Phillips Flat Head Screws (Set Of 2) is available (Sold Separately) for Wood/Aluminum Door up to 1-3/4" (44mm) thick.

Mounting Type: Glass Mount, Single-Sided
Thread: M8 thread for secure installation.

Hole To Hole (CTC): 24"

Compare To: 36LHS

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
