The GGH Straight Square Style Ladder Pulls provide a modern, angular solution for residential and commercial doors. Constructed from premium 304 Grade Stainless Steel, these ladder pulls combine durability with a sleek look, making them ideal for high-traffic environments. The ladder pull combines design of Square handle with two round mounting mid post Prepped for easy back-to-back mounting, they are compatible with 3/8" to 3/4" (10mm - 19mm) thick tempered glass doors and can also be used on wood and aluminum doors up to 1-3/4" (44mm) thick.

Available in multiple sizes and finishes, GGH Straight Square Style Ladder Pulls offer both style and reliable performance, enhancing the visual appeal and functionality of a wide range of door types and architectural designs.

More Product Information

Material: 304 Stainless Steel

Profile: Square

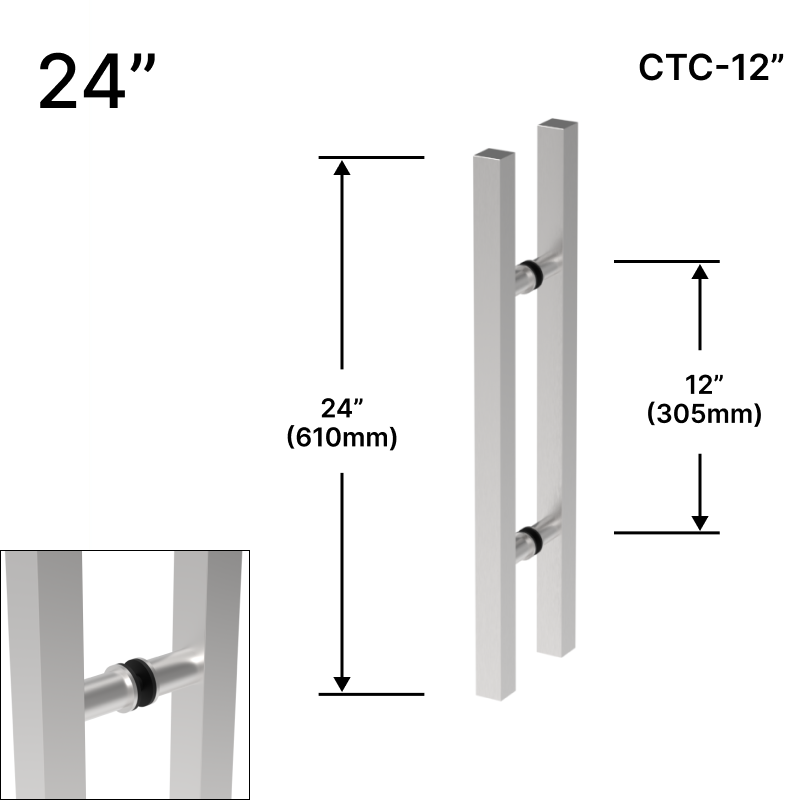

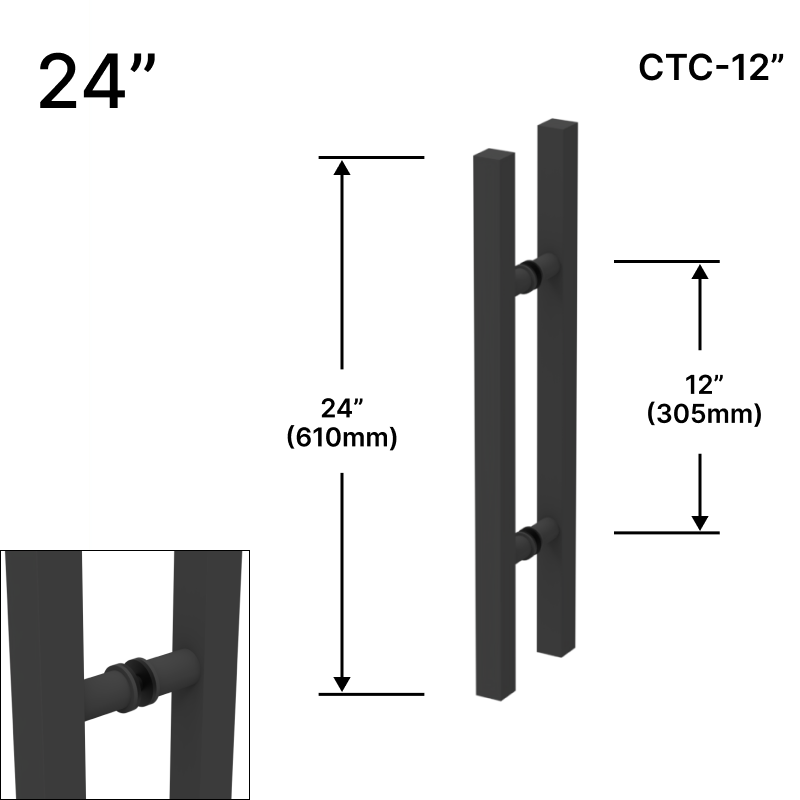

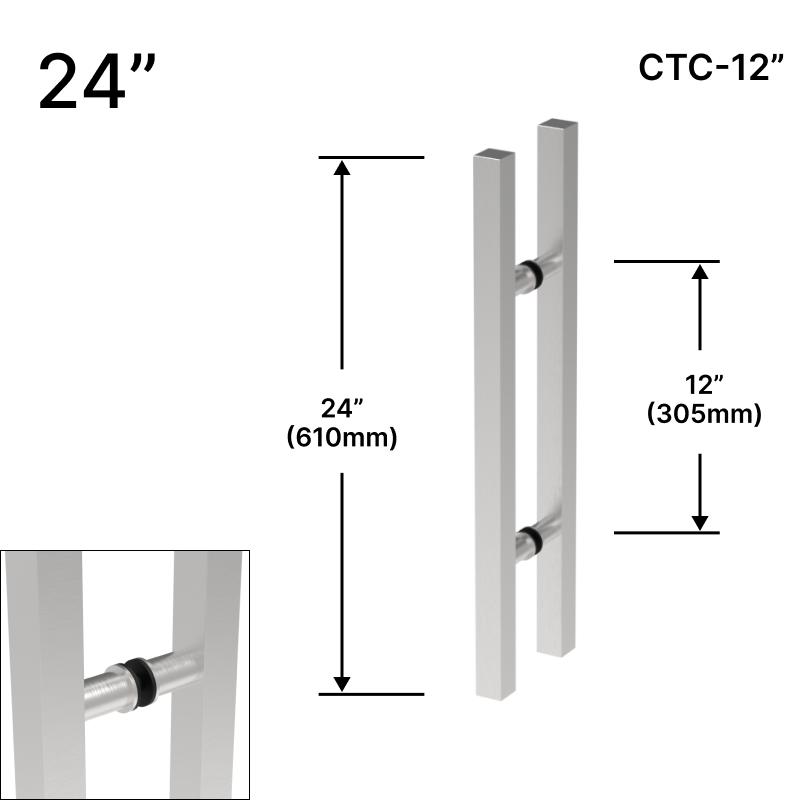

Product Length: 24" (610mm)
Product Width: 6-1/2" (165mm)
Product Height: 1-1/4" (32mm)

Glass Thickness Range: 3/8" to 3/4" (10mm to 19mm)
Suitable for Wood/Aluminum Door Thickness: 1-3/4" (44mm)
Glass Type: Tempered Glass
Glass Fabrication: 5/8" (15.88mm) Hole

Includes:
Ladder Pull includes hardware for 3/8" to 3/4" (10 to 19mm) thick tempered glass with standard 1-15/16" (50.00mm) connecting screws.
Additional 3-9/16" (90.00mm) screws are included in the package for wood or aluminum doors up to 1-3/4" (44mm) thick.
Allen keys are included for easy installation.

Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/8" (3.2mm)

Mounting Type: Glass Mount, Back-to-Back
Thread: M8 thread for secure installation.

Hole To Hole (CTC): 12"

Compare To: 24SQLH

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
