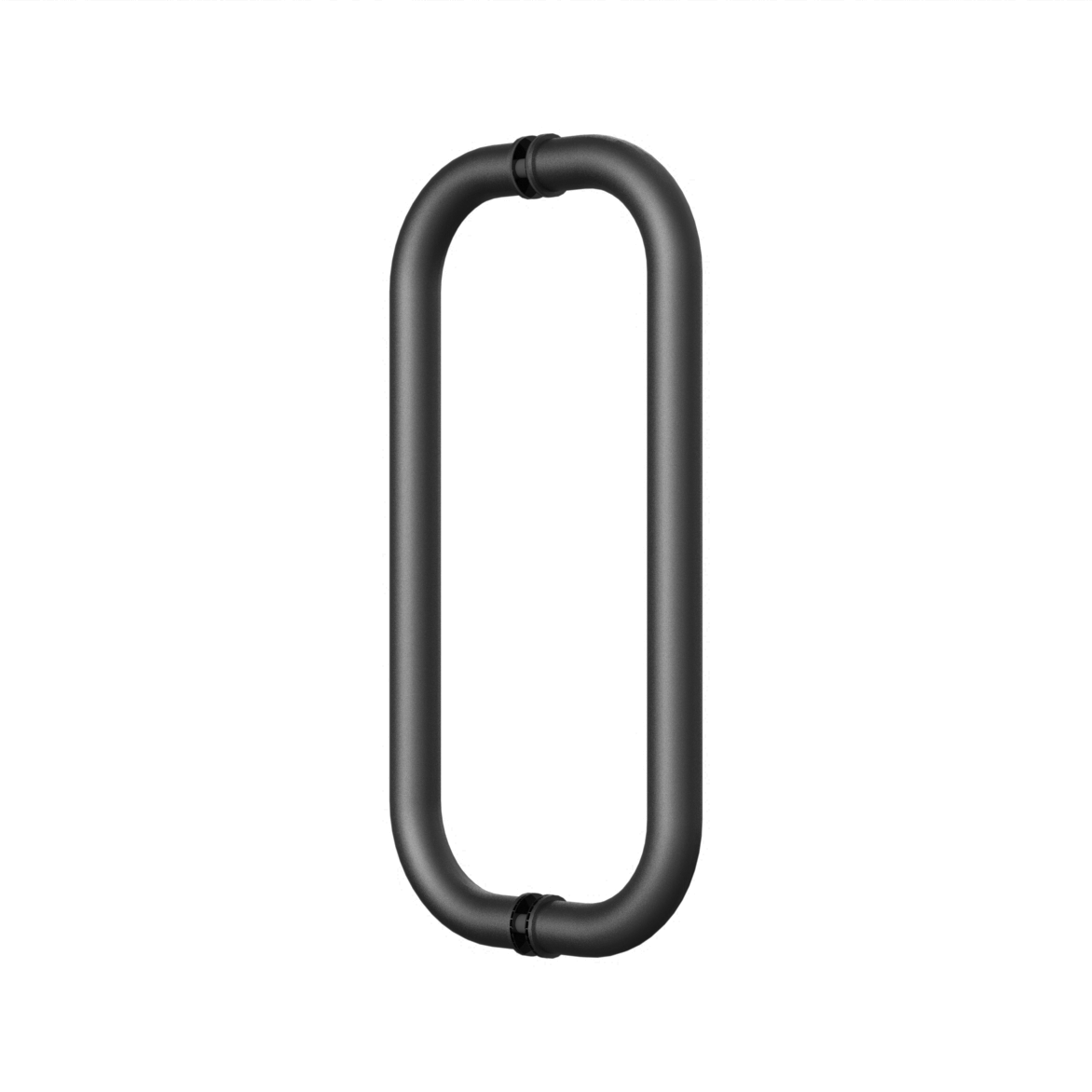

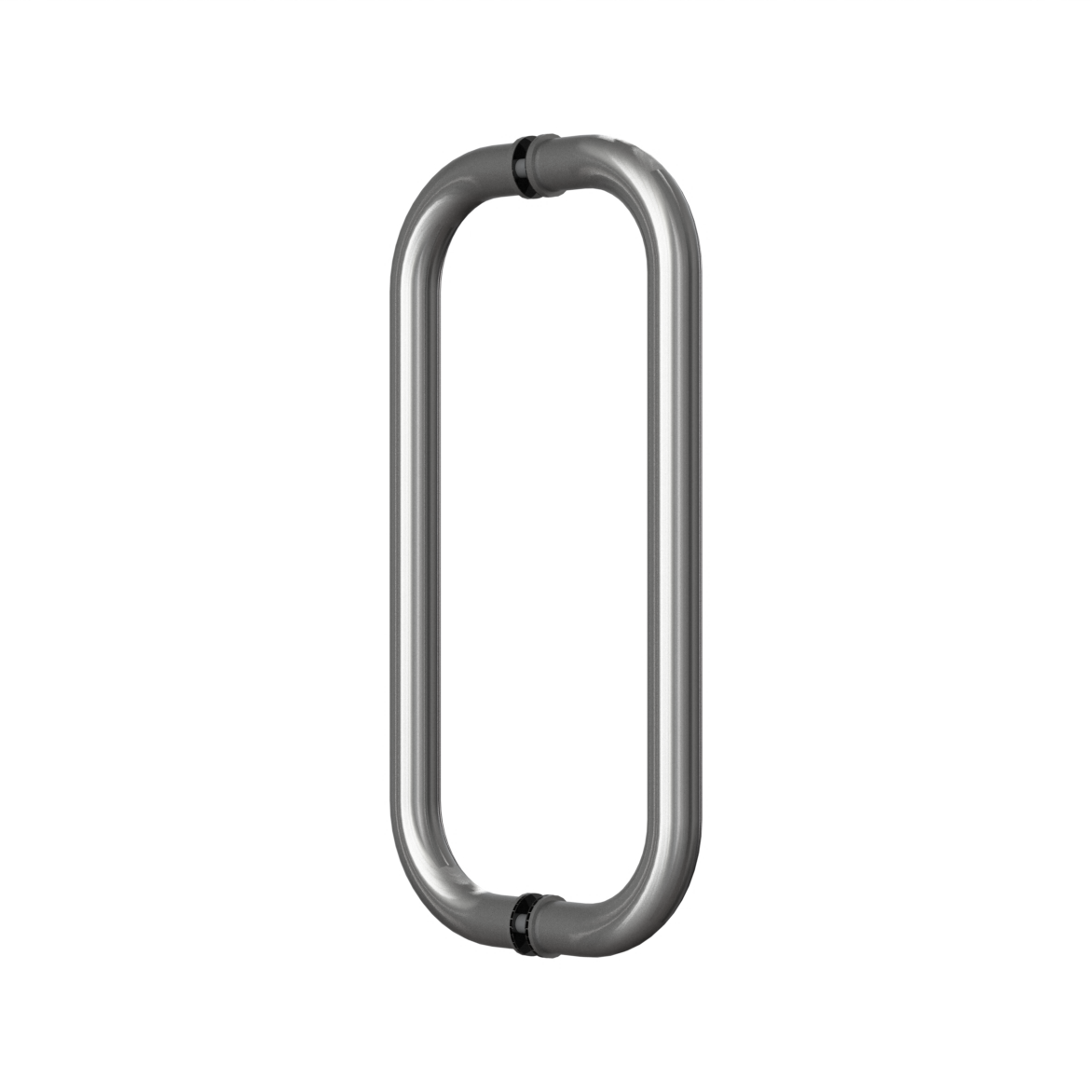

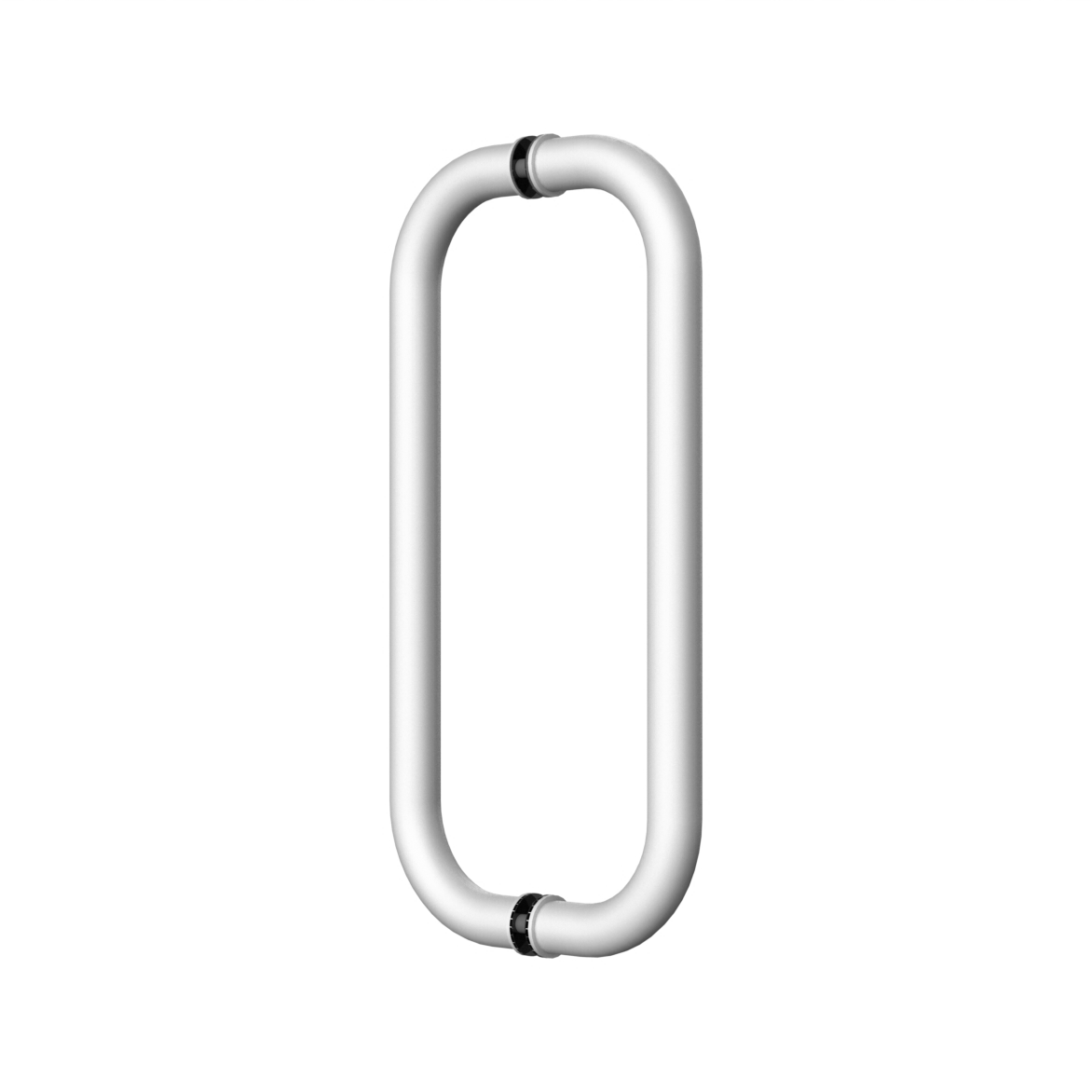

The GGH Ladder Pull Handle is designed for shower, storefront, office, and entrance door applications requiring a durable back-to-back pull configuration. Manufactured from 304 stainless steel with a tubular round profile, it provides a comfortable grip while delivering reliable performance in high-traffic commercial and residential environments.

More Product Information

Material: 304 Stainless Steel

Profile: Tubular / Round
Product Length: 19-1/2" (495.23mm)
Product Width: 7-3/16" (182mm)
Product Height: 1-1/2" (38mm)
Tubular Diameter: 1.25" (32mm)

Glass Thickness Range: 3/8" to 3/4" (10mm to 19mm)
Suitable for Wood/Aluminum Door Thickness: 1-3/4" to 2" (44 to 50.8mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 9/16" (15mm) Hole

Includes: Extra Screws (Up to 2" Door Thickness), Allen Keys
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (2mm)

Mounting Type: Glass Mount

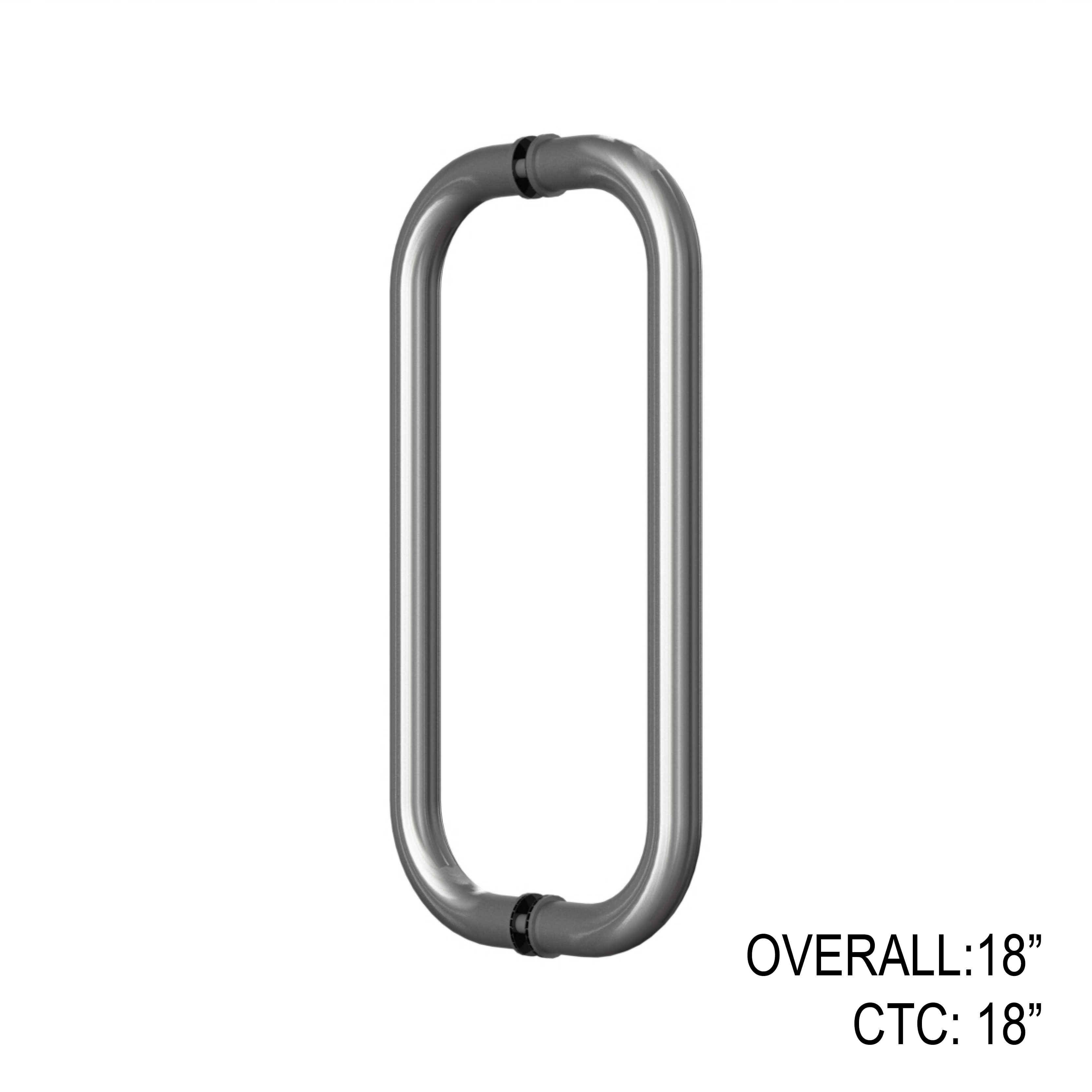

Hole To Hole (CTC): 18"

Compare To: CM18X14

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
