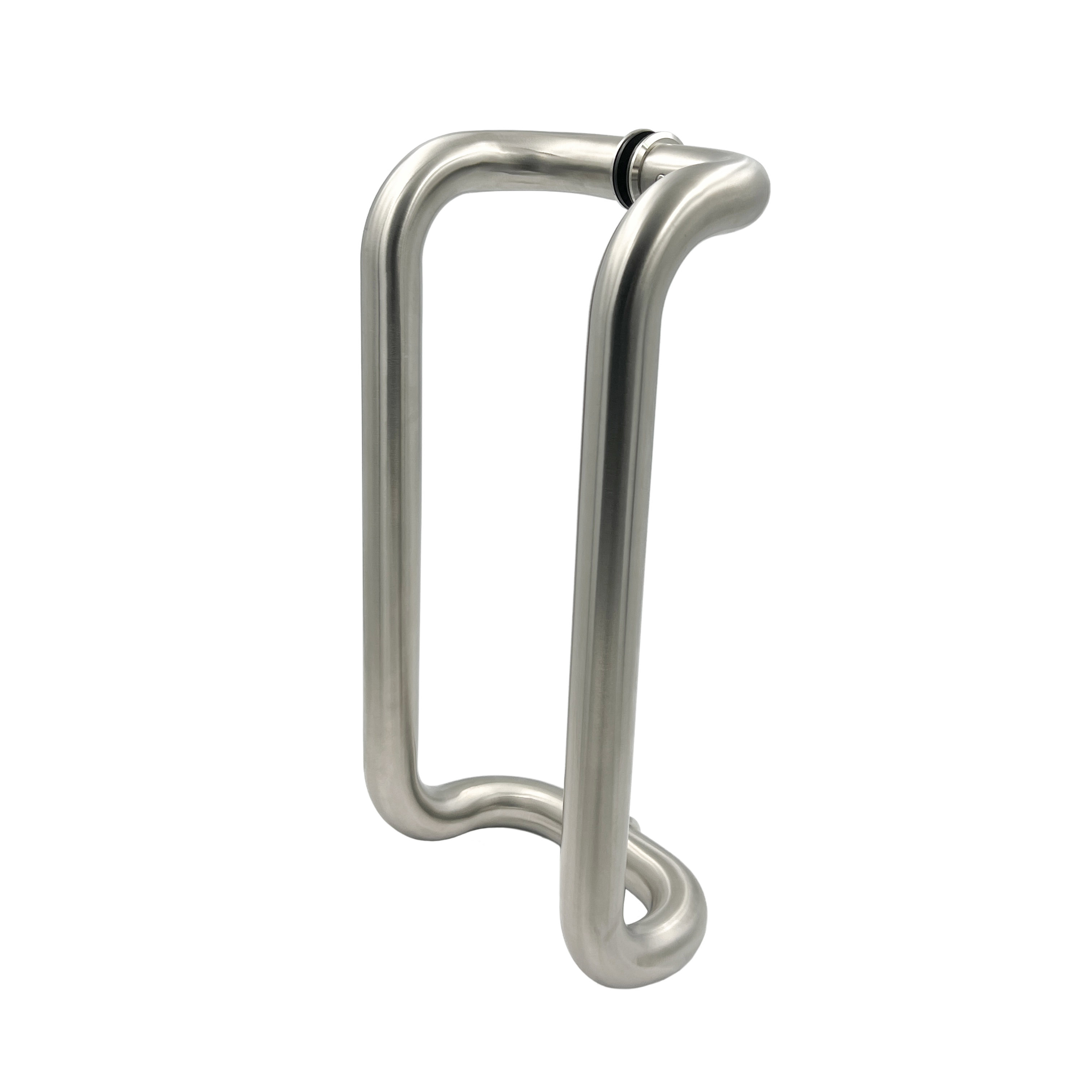

The GGH Offset Tubular Commercial Grade Back to Back Handles are the perfect choice for a variety of commercial and residential settings, including wine cellars, gyms, and business spaces. Constructed from high-quality SS304 stainless steel, these handles are built to withstand high traffic while providing a sleek, modern aesthetic. The 1" (25.4mm) tubular diameter offers a comfortable grip and durability.

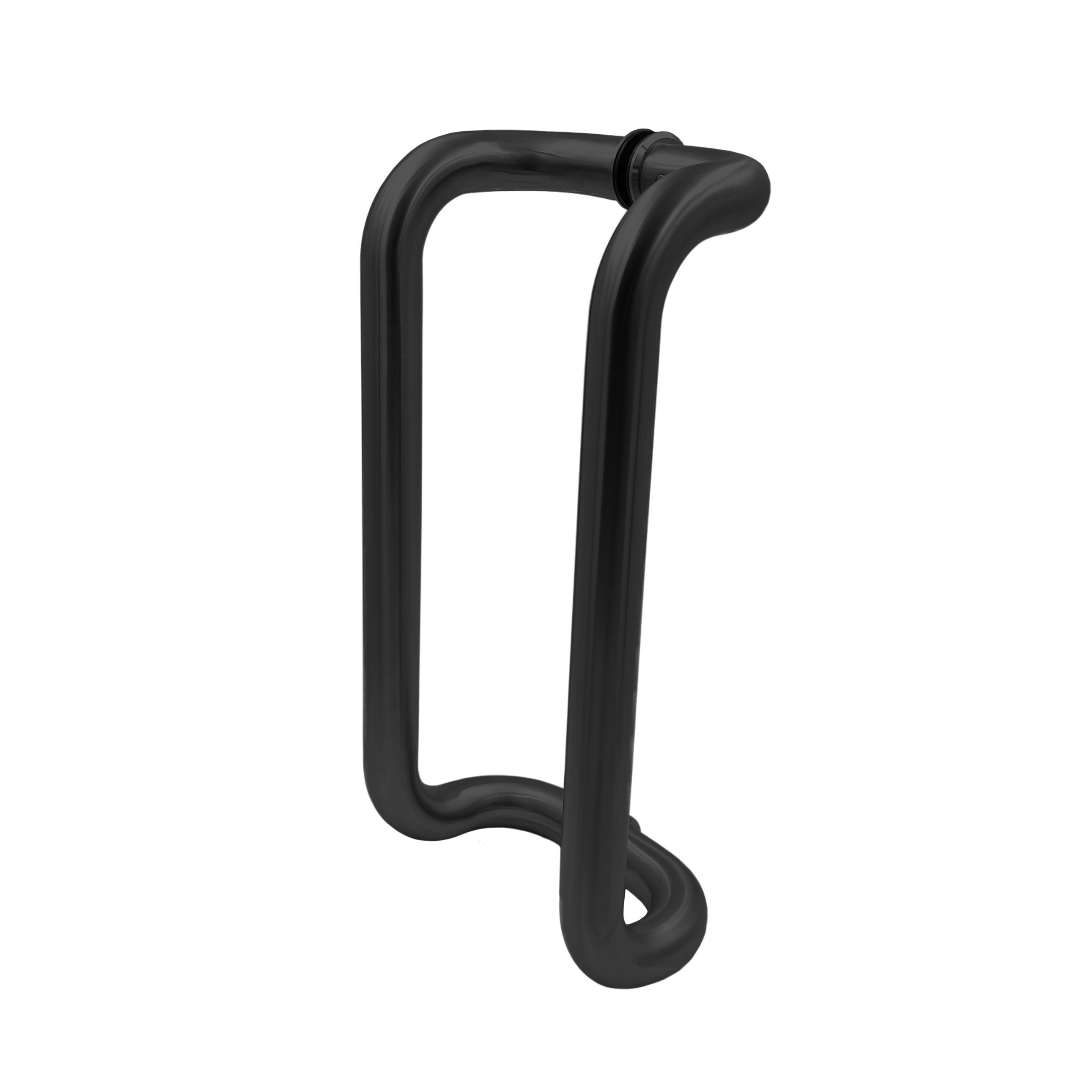

Designed for use with both glass doors (3/8" - 3/4" thick) and aluminum/wood doors up to 1-3/4" thick, these handles provide versatility and robust functionality. Available in multiple finishes, the GGH Offset Tubular Handles are sure to enhance the look and performance of your door hardware.

More Product Information

Material: 304 Stainless Steel

Profile: Tubular / Round
Product Length: 13" (336.8mm)
Product Width: 7-7/16" (189.4mm)
Product Height: 4-1/8" (104.69mm)
Tubular Diameter: 1" (25.4mm) for a modern and comfortable grip

Glass Thickness Range: 3/8" to 3/4" (10mm to 19mm)
Suitable for Wood/Aluminum Door Thickness: Up to 1-3/4" (44mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 5/8" (15.88mm) Hole

Includes:
Ladder Pull includes hardware for 3/8" to 3/4" (10 to 19mm) thick tempered glass with standard custom-made connecting screws.
Additional hardware is included in the package for installation on wood or aluminum doors up to 1-3/4" (44mm) thick.
Allen keys are included for easy installation.
Gasket: Black Interior Gaskets
Gasket Material: PP
Gasket Thickness: 1/16" (2mm)

Mounting Type: Glass Mount
Thread: M8 thread for secure installation.

Hole To Hole (CTC): 12"

Compare To: CP012X12

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
