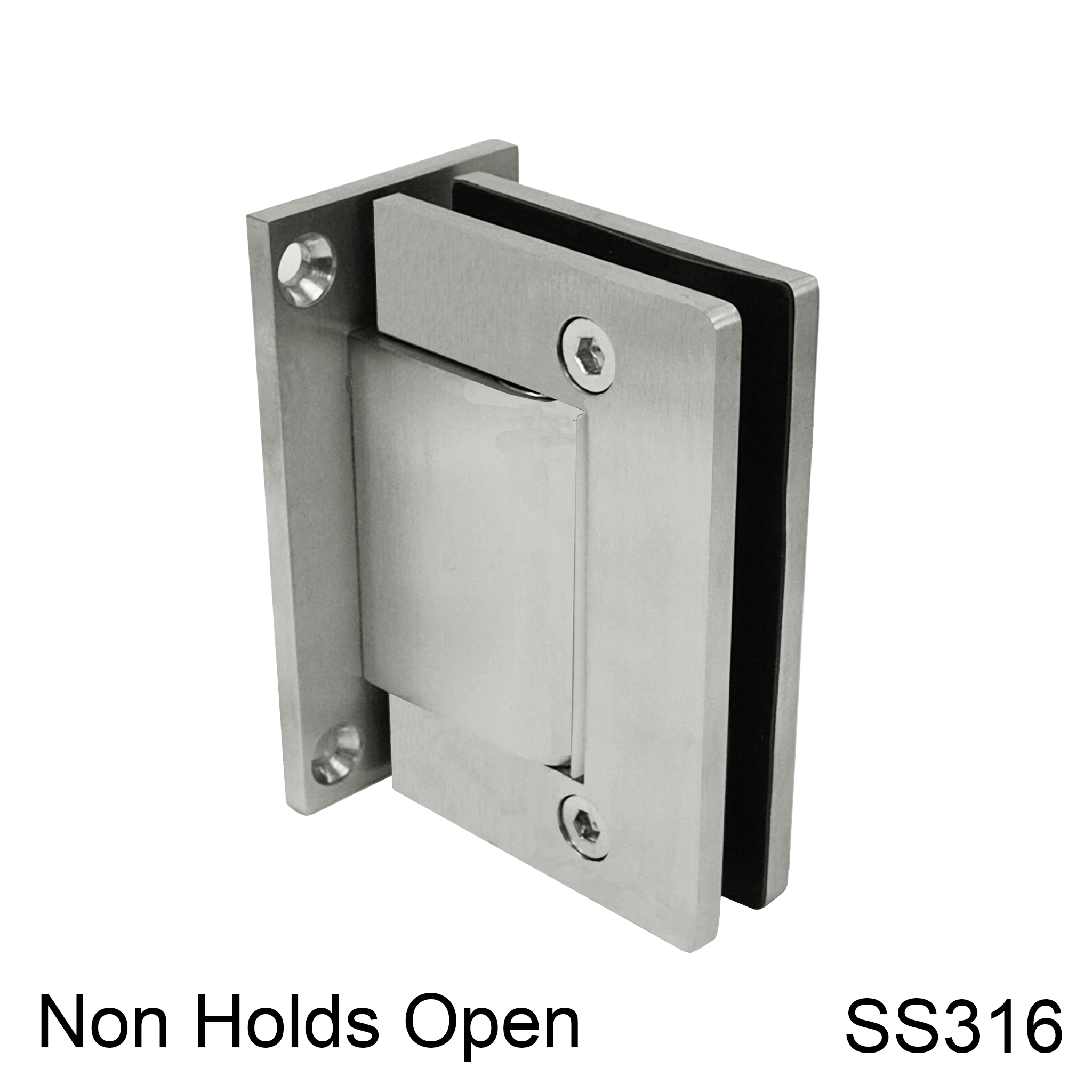

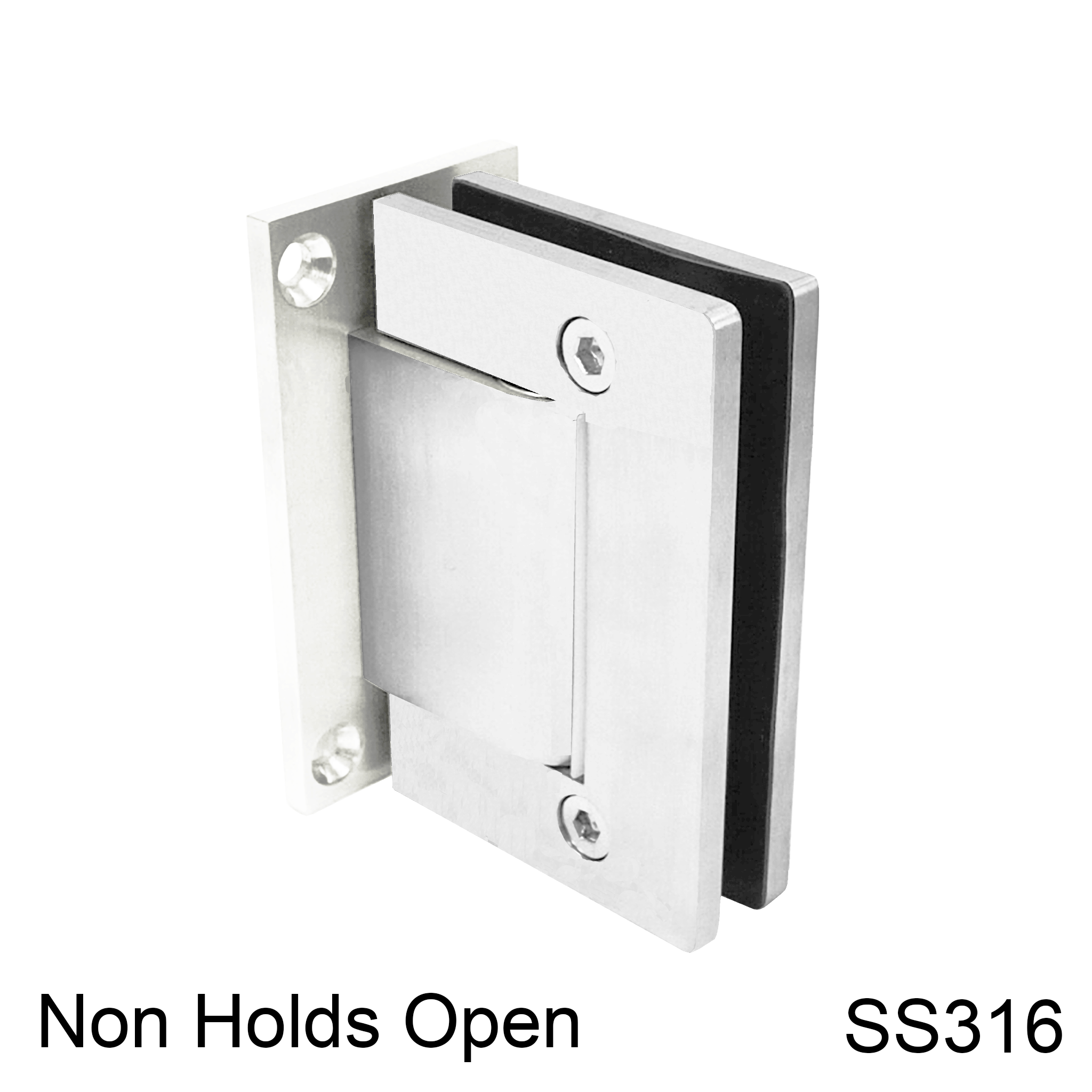

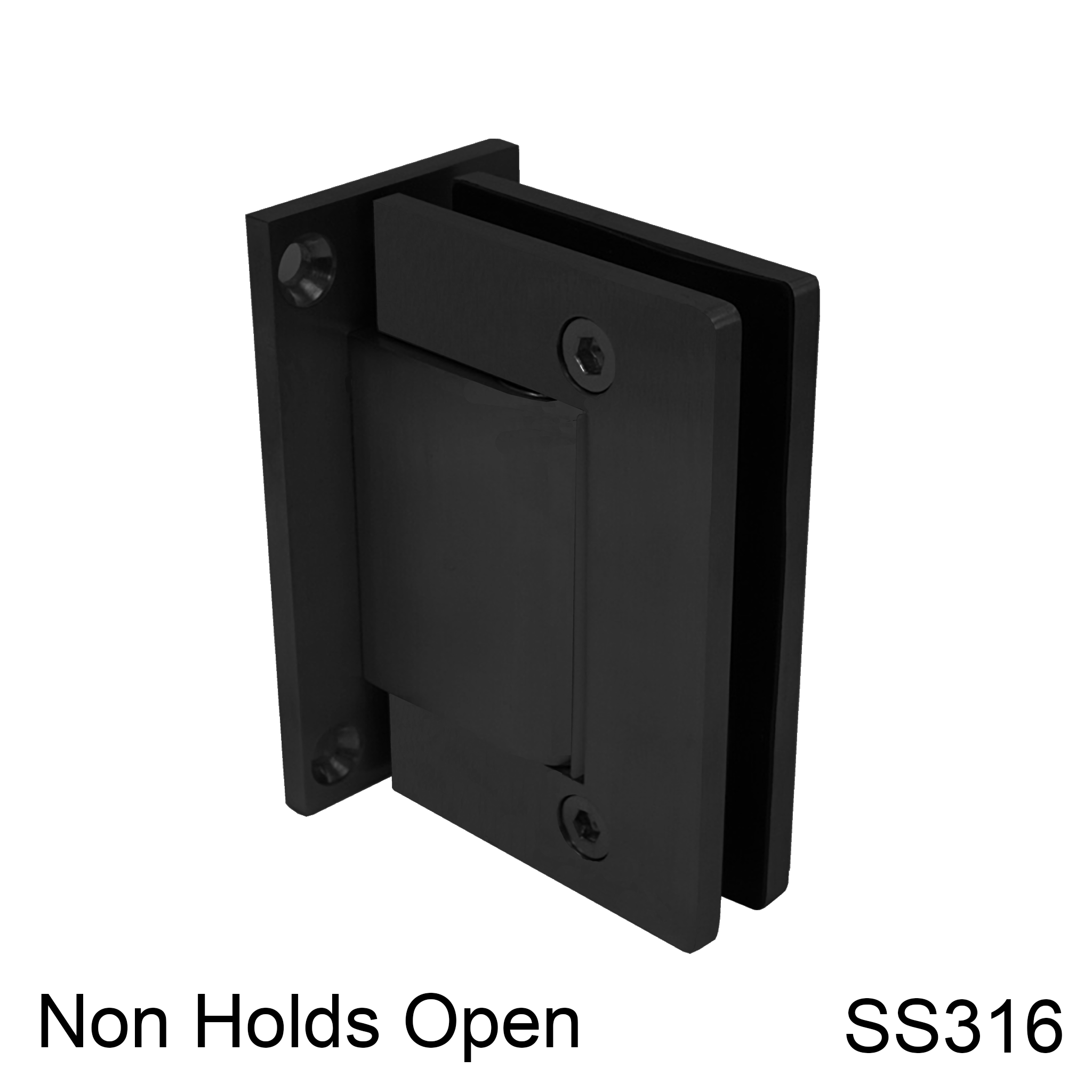

The GGH HULK Series Hydraulic Hinge is designed for wall-to-glass door applications requiring smooth self-closing performance without fixed hold-open positioning. Its built-in hydraulic mechanism supports controlled door movement without the need for floor-mounted or overhead closers, making it suitable for storefronts, entrances, office doors, and interior glass door systems.

More Product Information

Product Length: 3-1/4" (82.50mm)
Product Width: 2-3/16" (55mm)
Product Height: 4-5/16" (110mm)
Material: 316 Stainless Steel

Includes: Hinge set, gaskets, screws, and Allen key
Gasket: Black Gaskets
Gasket Thickness: 1mm
Thread Size: M6 Threaded

Mounting Type: Wall to Glass
Glass Thickness Range: 5/16" (8mm) to 9/16" (14mm)
Glass Fabrication: See glass template for details

Maximum Glass Width: 39" (1000mm)
Maximum Glass Height: 86" (2200mm)
Maximum Load: 60 kg (132 lbs)

Glass Width Deduction: 3/8" (10mm) + handle-side deduction

Compatible With: Glass panels, U-channels, and door handles
Application: Wall-to-glass installations, main entrances, office entry doors, retail storefront doors, interior passage doors, lobby areas, hallways, and corridors

Compare To: PAN1
