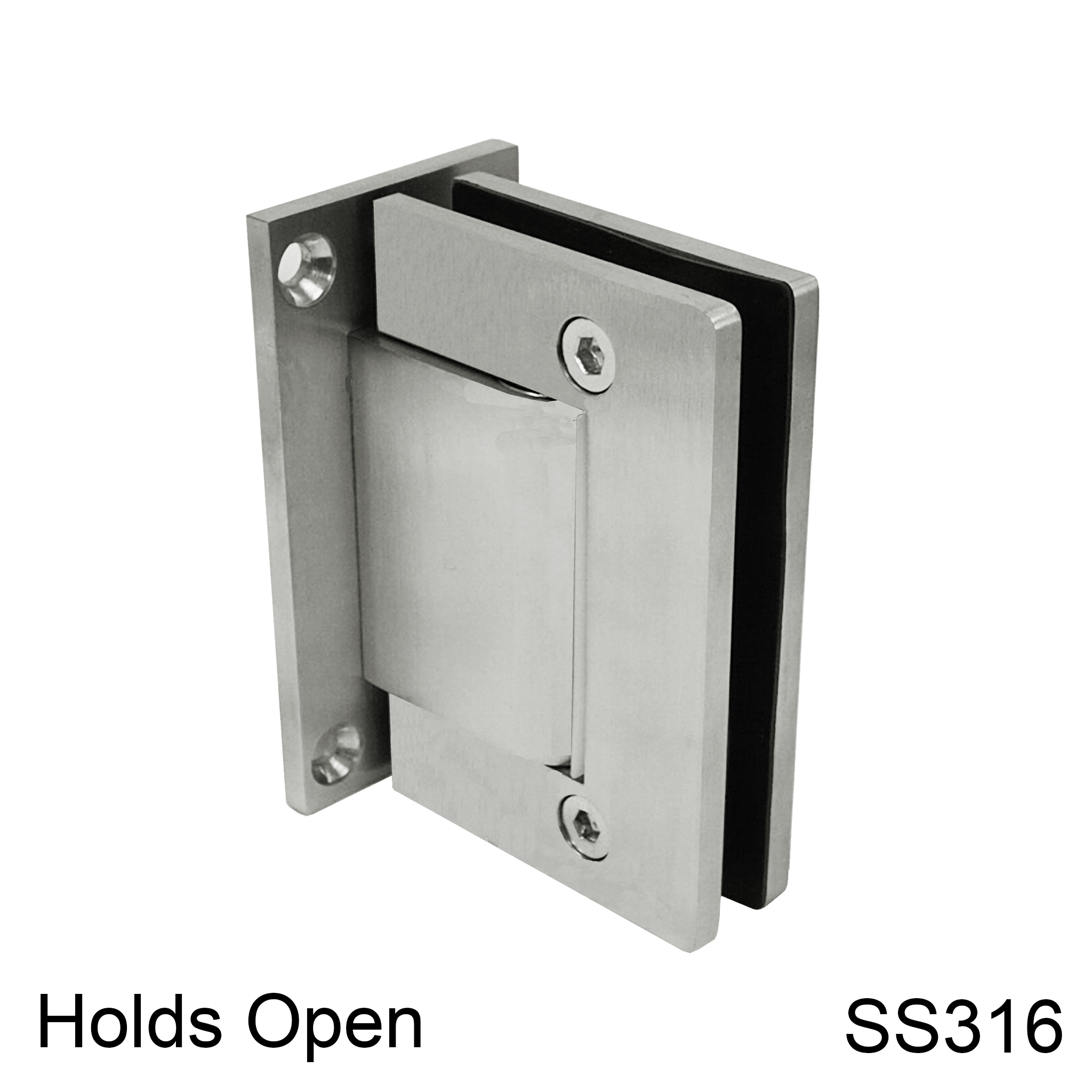

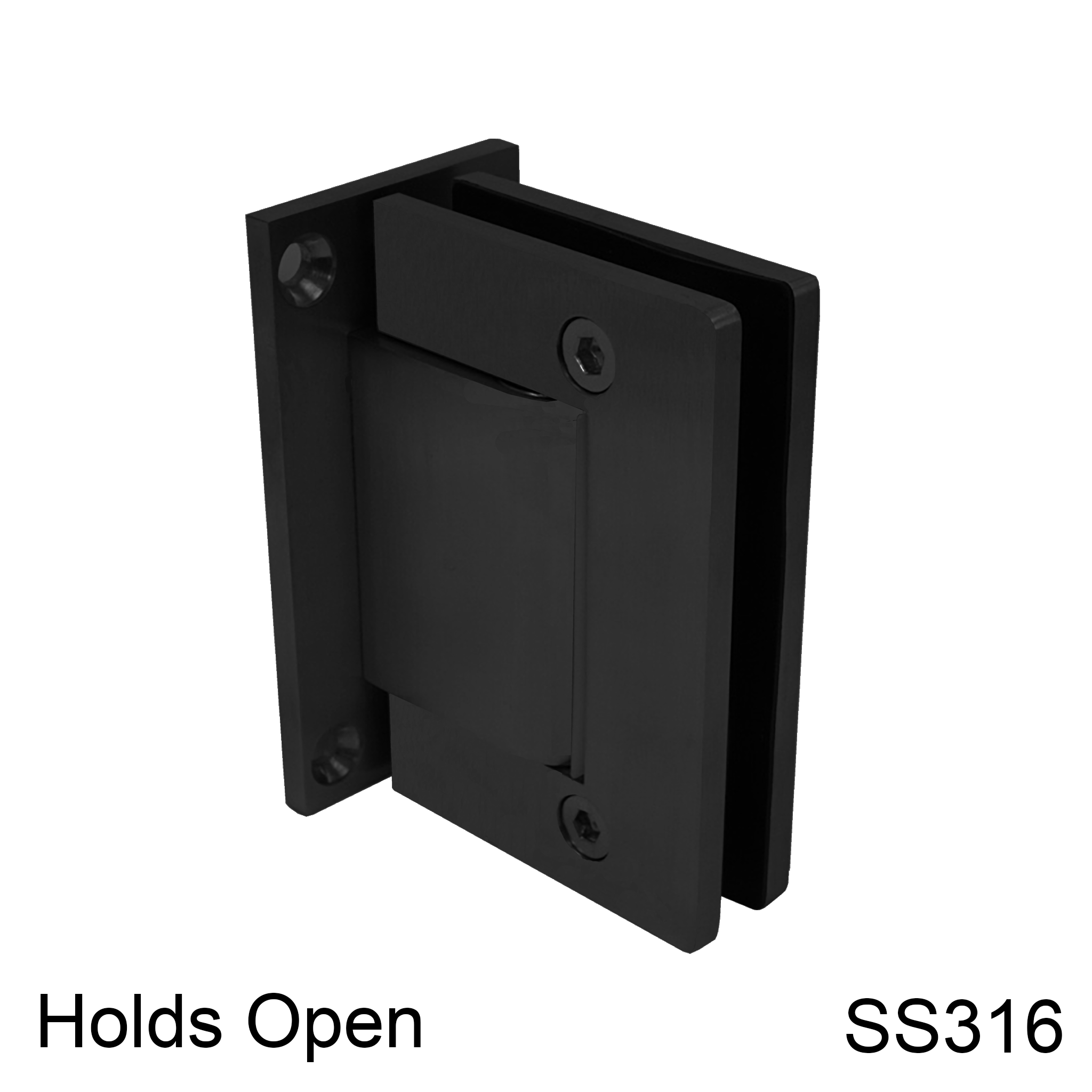

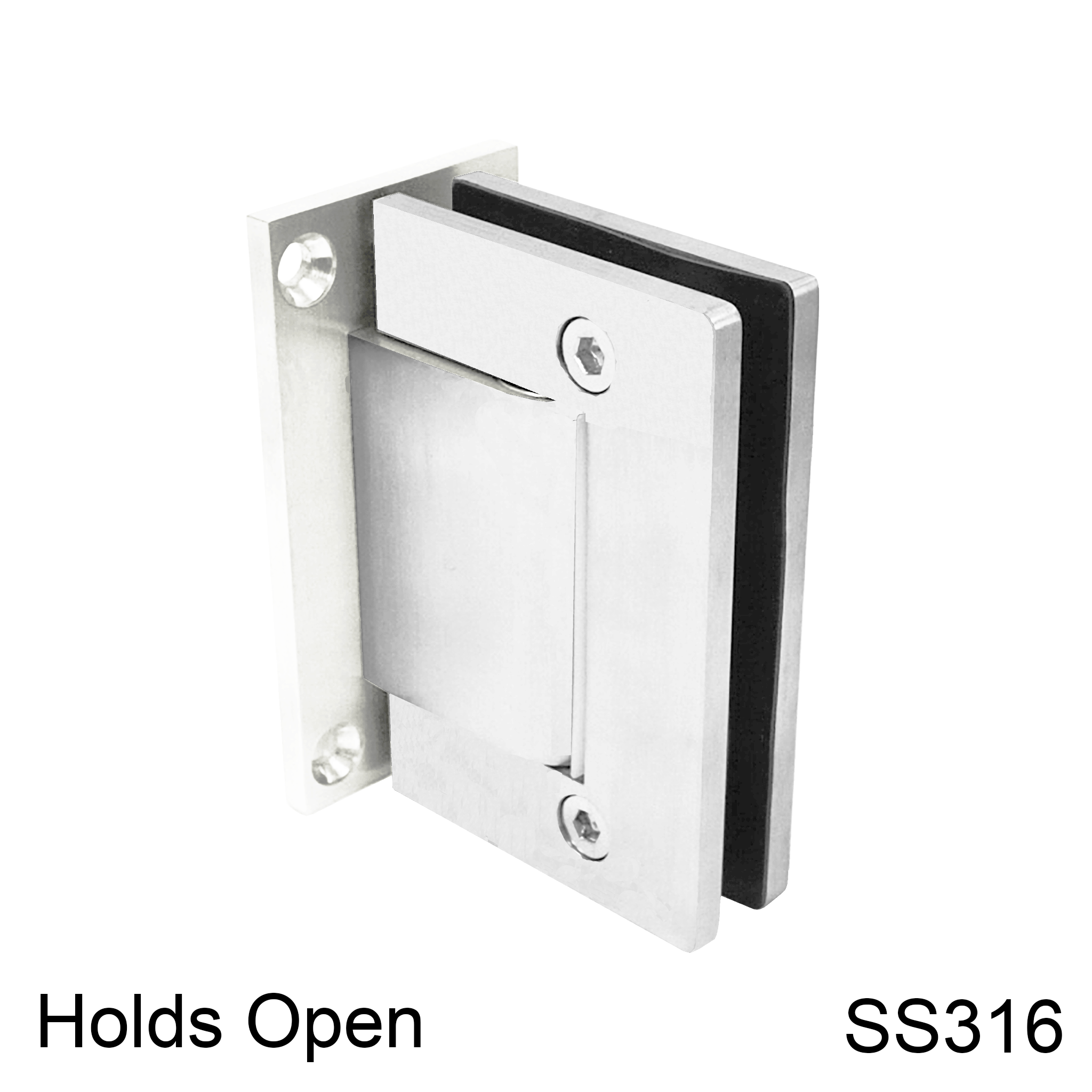

The GGH HULK Series Hydraulic Hinge offers a seamless solution for wall-to-glass installations, featuring an integrated soft-close function that eliminates the need for additional floor or top-mounted door closers. This model is designed with a 90° hold open feature, allowing doors to stay open securely when needed, perfect for easy access in high-traffic areas.

Crafted from SS316 for exceptional durability and corrosion resistance, this hinge is ideal for both indoor and outdoor use, including showers. With no cover plate required for floor closers, the floor finish remains intact, providing a clean, polished appearance. Sold in a box of two hinges.

[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]

More Product Information

Product Length: 3-1/4" (82.50mm)
Product Width: 2-3/16" (55mm)
Product Height: 4-5/16" (110mm)
Material: 316 Stainless Steel

Includes: Hinge set, gaskets, screws and Allen key
Gasket: Black Gaskets
Gasket Thickness: 1mm
Thread Size: M6 Threaded

Mounting Type: Wall to Glass
Glass Thickness Range: 5/16" (8mm) to 9/16" (14mm)
Glass Fabrication: See glass template for details

Maximum Glass Width: 39" (1000mm)
Maximum Glass Height: 86" (2200mm)
Maximum Load: 60 kg (132 lbs)

Glass Width Deduction: 3/8" (10mm) + handle-side deduction

Compatible With: Glass panels, U-channels, and door handles
Application: Wall-to-glass installations, main entrances, office entry doors, retail storefront doors, interior passage doors, lobby areas, hallways, and corridors

Compare To: PAN1H

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
