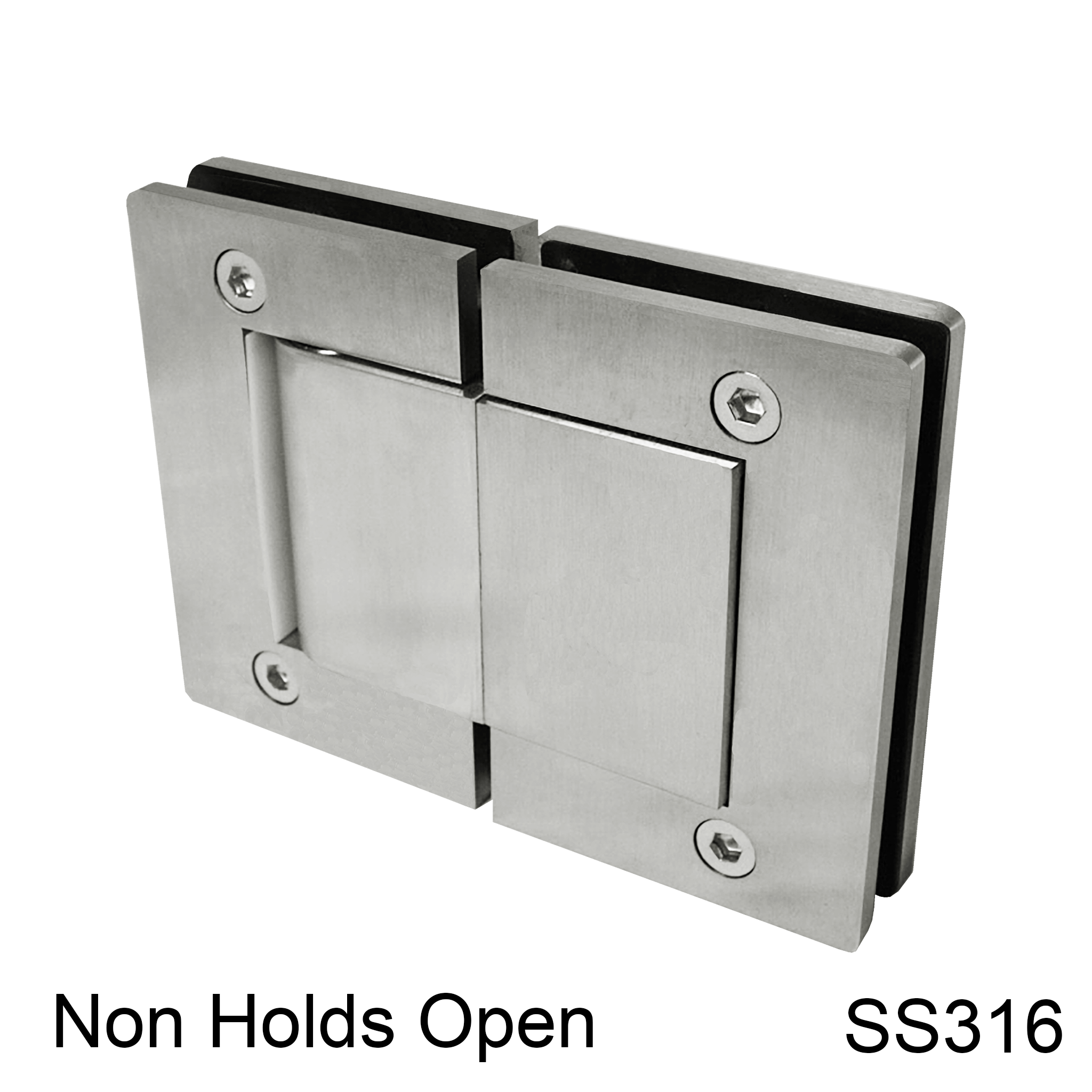

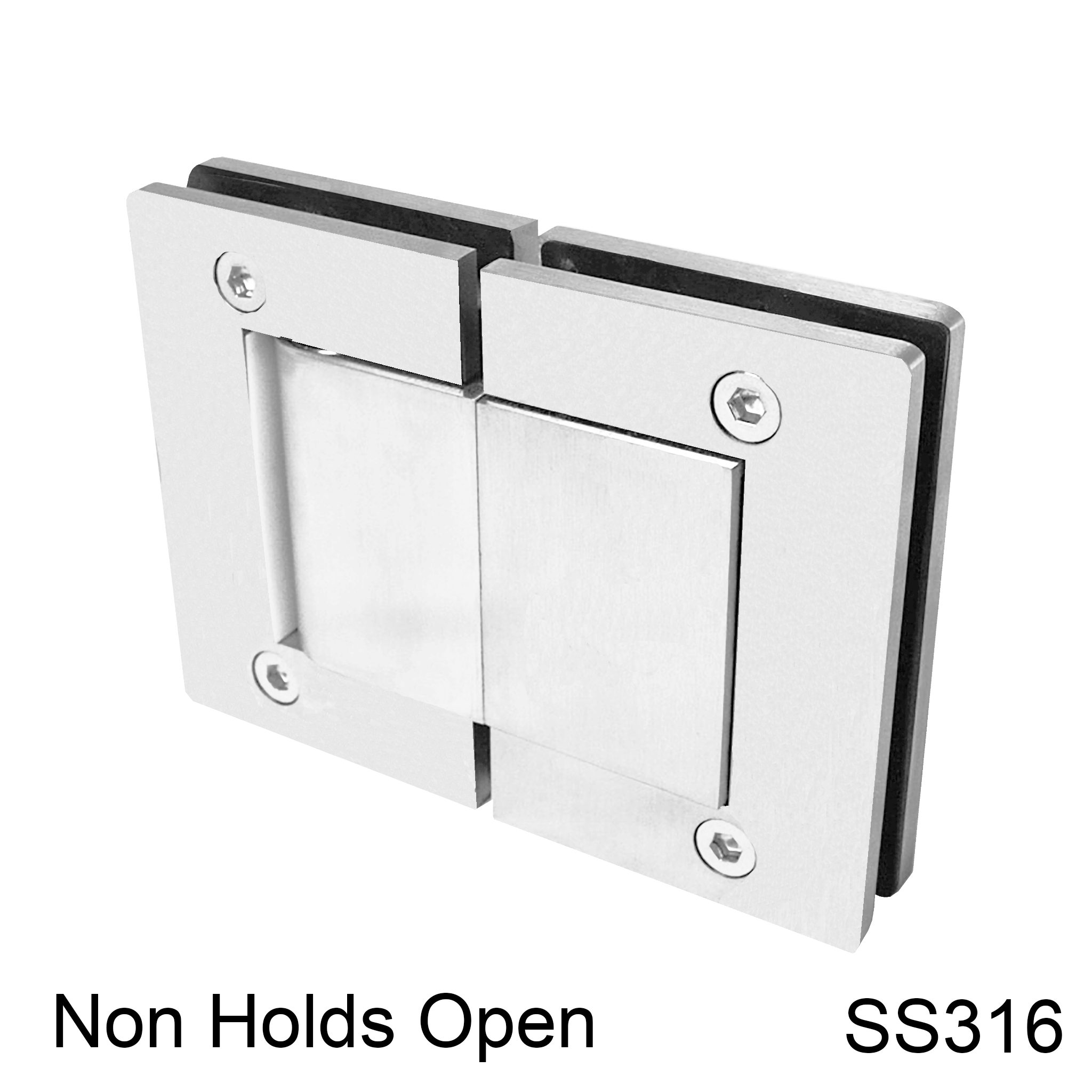

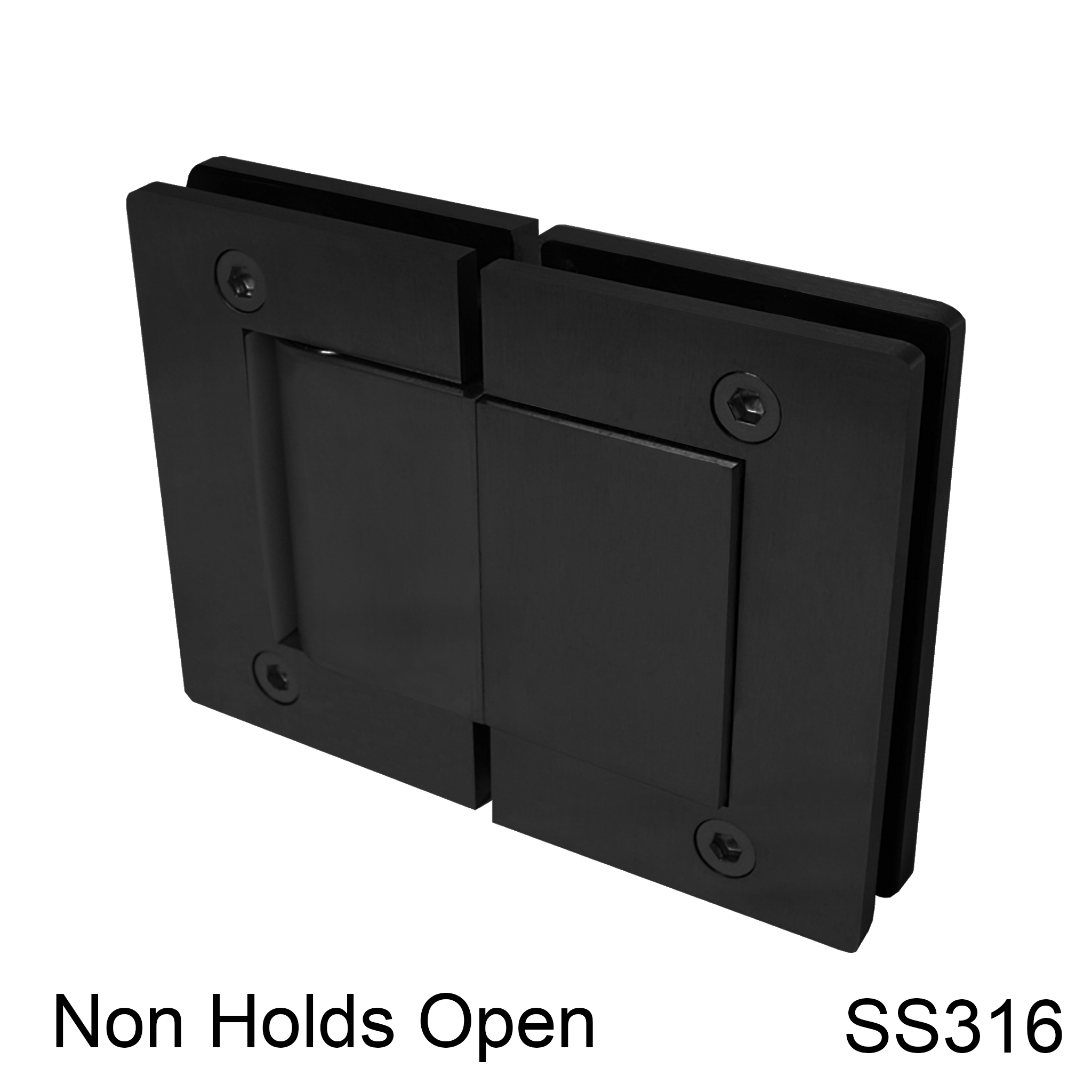

The GGH HULK Series Hydraulic Hinge provides an advanced soft-close solution for seamless glass-to-glass installations, integrating the closing function directly into the hinge without requiring any additional floor or ceiling components. This non-hold open model ensures smooth door operation without fixed open angles, making it perfect for settings where continuous door movement is desired.

Constructed from SS316, it delivers outstanding corrosion resistance and durability, performing reliably in both indoor and outdoor environments, including shower installations. The design also protects floor integrity by eliminating the need for a floor plate. Comes in a box of two.

[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]

More Product Information

Product Length: 5-7/8" (150mm)
Product Width: 15/16" (24mm)
Product Height: 4-5/16" (110mm)
Material: 316 Stainless Steel

Includes: Hinge set, gaskets, and Allen key
Gasket: Black Gaskets
Gasket Thickness: 1mm

Mounting Type: Glass to Glass
Glass Thickness Range: 5/16" (8mm) to 9/16" (14mm)
Glass Fabrication: See glass template for details

Maximum Glass Width: 39" (1000mm)
Maximum Glass Height: 86" (2200mm)
Maximum Load: 60 kg (132 lbs)

Compatible With: Glass panels, U-channels, and door handles
Application: Glass-to-glass installations, main entrances, office entry doors, retail storefront doors, interior passage doors, lobby areas, hallways, and corridors

Compare To: PAN2G

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
