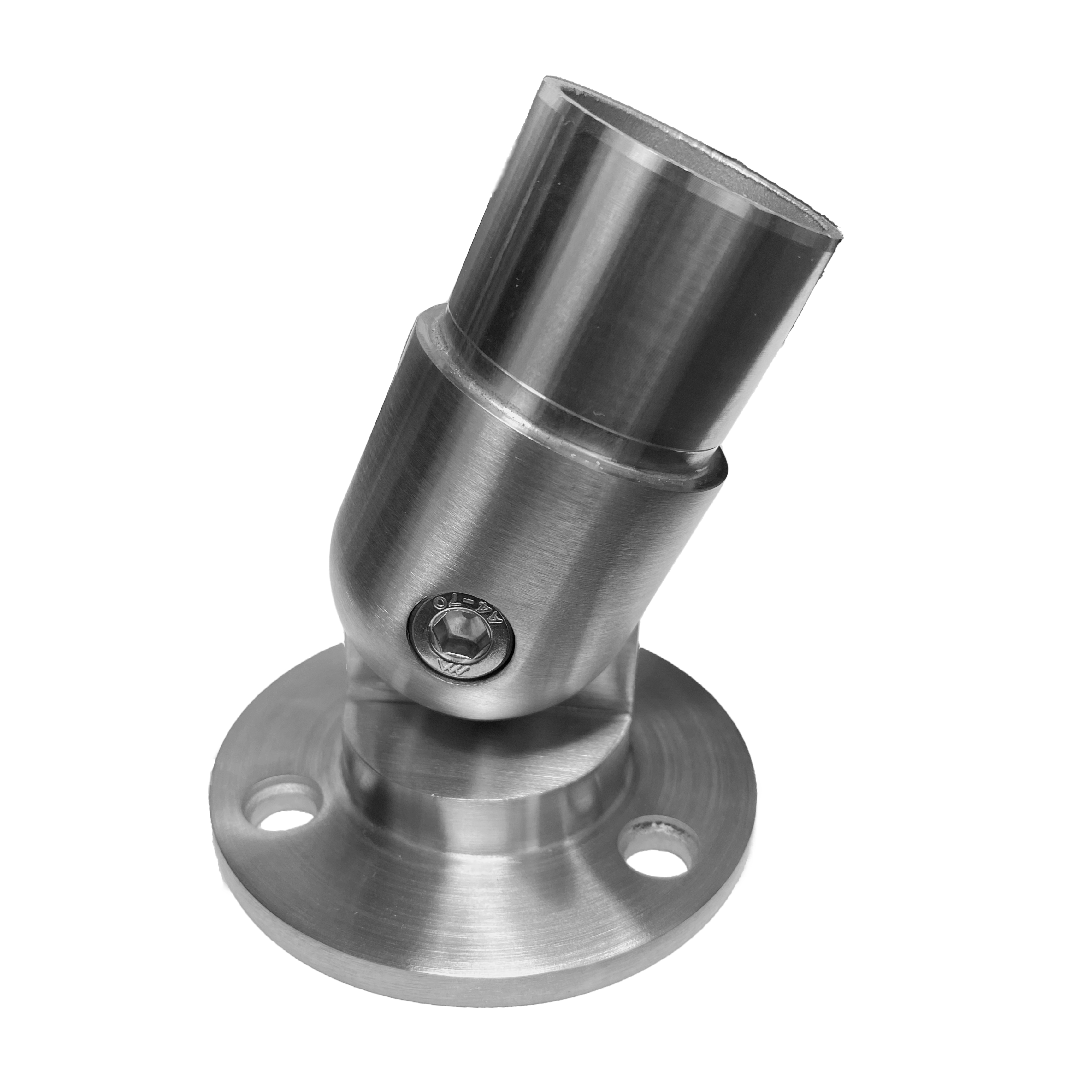

![[WF42.4ADJ] HRAIL Series GGH Handrail - Wall Mount Flange for 42.4mm Handrail - Adjustable](http://ggh-usa.com/cdn/shop/files/GGS-HRAIL-FLANGE-42.4RD-ADJ-BS.png?v=1774979171&width=3840)

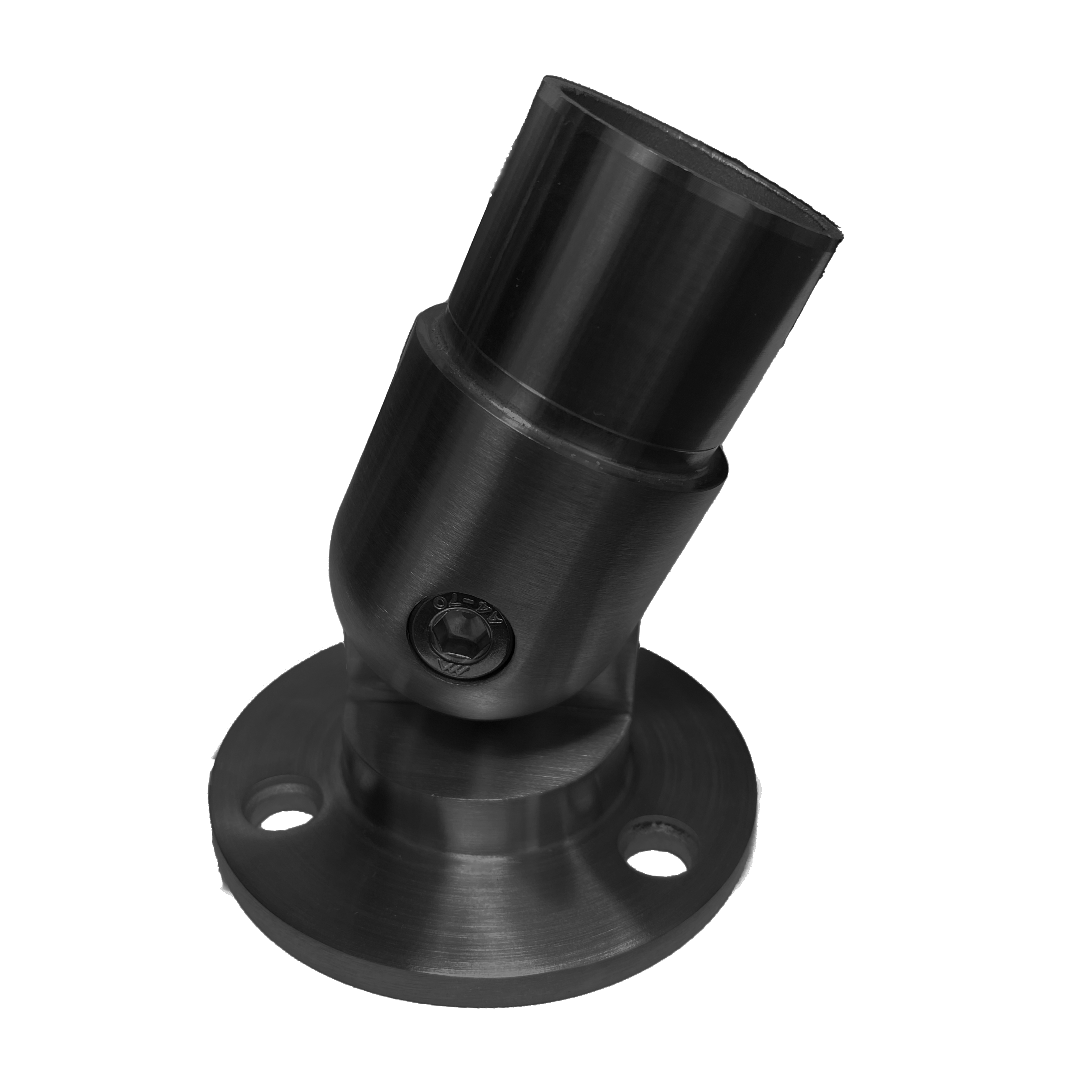

![[WF42.4ADJ] HRAIL Series GGH Handrail - Wall Mount Flange for 42.4mm Handrail - Adjustable](http://ggh-usa.com/cdn/shop/files/GGS-HRAIL-FLANGE-42.4RD-ADJ-BMB_0f9f3786-afe0-480d-81ab-50e601b03121.png?v=1774979171&width=3840)
Overview
The GGH 180° Adjustable Wall Mount Flange is designed for secure and flexible handrail installations, allowing precise angle adjustments. Made from high-grade 316 stainless steel, it offers excellent corrosion resistance and durability for both interior and exterior applications.
More Product Information
Material: 316 Stainless Steel
Base Plate Diameter: 3-1/8" (80mm)
Wall Plate Thickness: 1/4" (6mm)
Product Dimensions
Length: 3-1/8" (80mm)
Width: 3-1/8" (80mm)
Height: 3-3/4" (96mm)
Mounting Hole Size: 3/8" (9mm)
Adjustment: Tilt (Angular)
Rotation: 180°
Compatible With: 42.4mm handrail systems
Application:
Both Indoor & Outdoor
Typical Installations:
Stairs, balconies, mezzanines, patios, decks, terraces and ramps
Compare To: TH15AFBS / HR20PFBS
For technical inquiries: technical@ggh-usa.com
Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
| Height | 3-3/4 in. (96.00 mm) |
|---|---|
| Diameter | 3-1/8 in. (80.00 mm) |
| Weight | 1.88 lbs. (0.8520 kg) |
