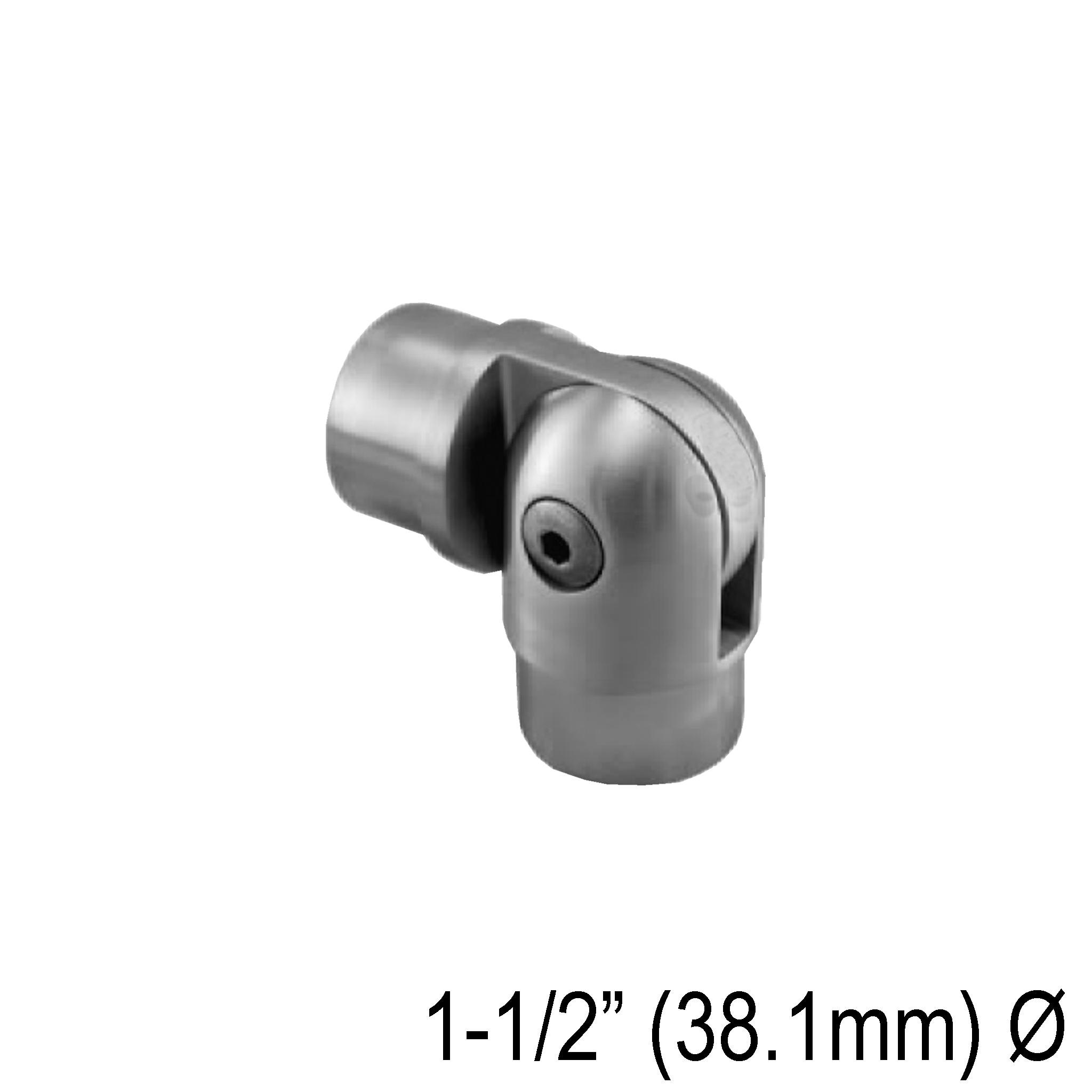

The GGH E38.1 Adjustable 90° Round Elbow for Handrail offers flexibility and precision for creating customized 90° turns in handrail systems. Made from high-quality Stainless Steel 316, this elbow ensures exceptional corrosion resistance, making it suitable for both exterior and interior applications. Its adjustable design allows for fine-tuning the angle, ensuring a secure and stable connection with 38.1mm Ø handrails.

More Product Information

Material: 316 Stainless Steel

Thickness: 1/16" (2mm)
Length: 3" (76.05mm)
Width: 1-1/2" (38.10mm)
Height: 2-15/16" (74.05mm)

Adjustment Type: Tilt (Angular)
Tilt Adjustment: Adjustable 180°

Compatible With: Handrail – 38.1mm

Installed With:
Handrail, handrail brackets, handrail connectors, saddles and end caps

Application: Handrail

Use: Both indoor & outdoor

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
