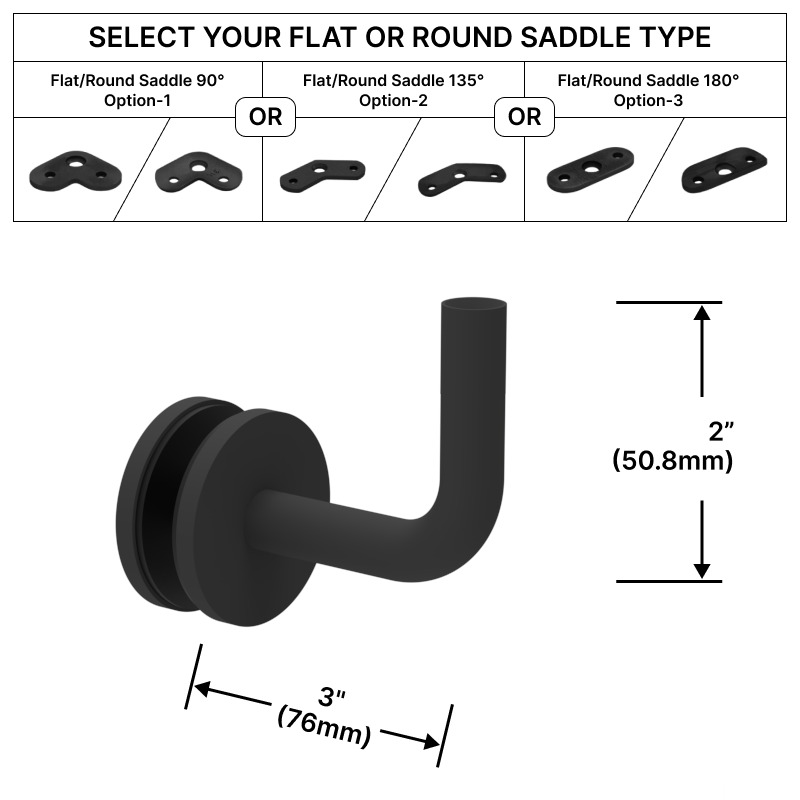

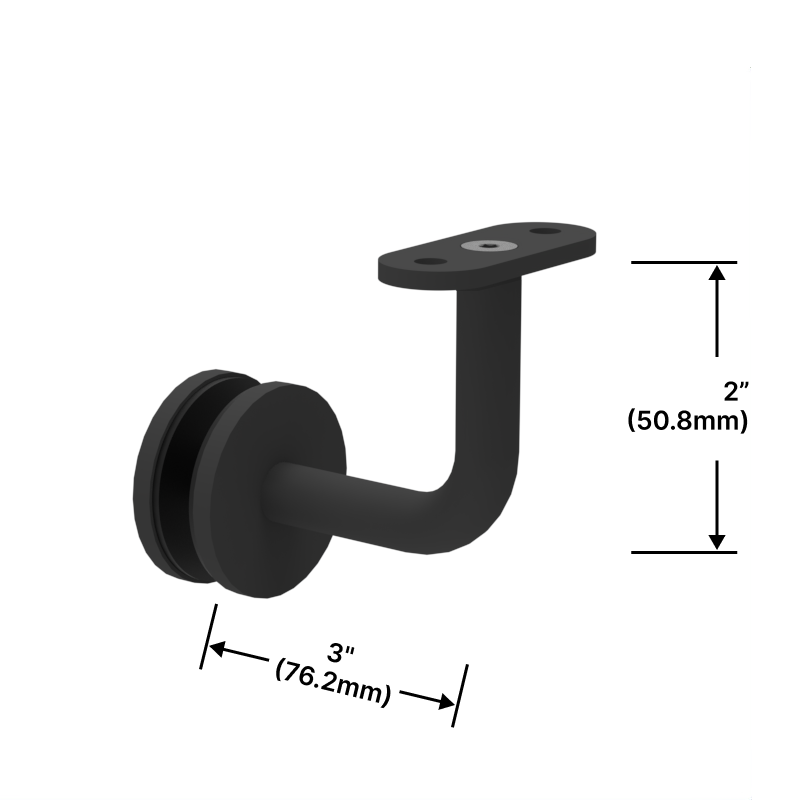

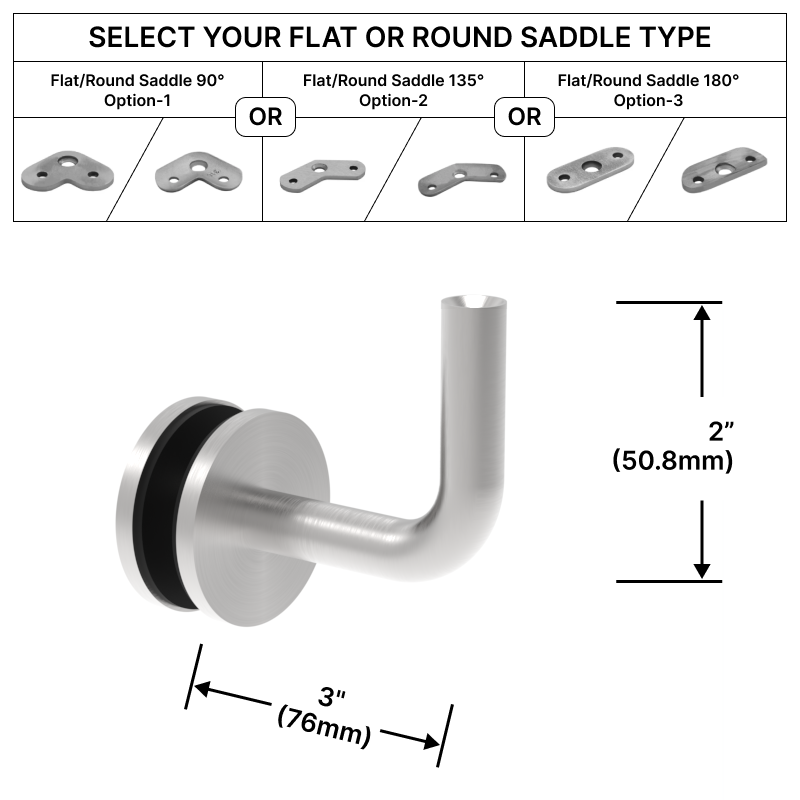

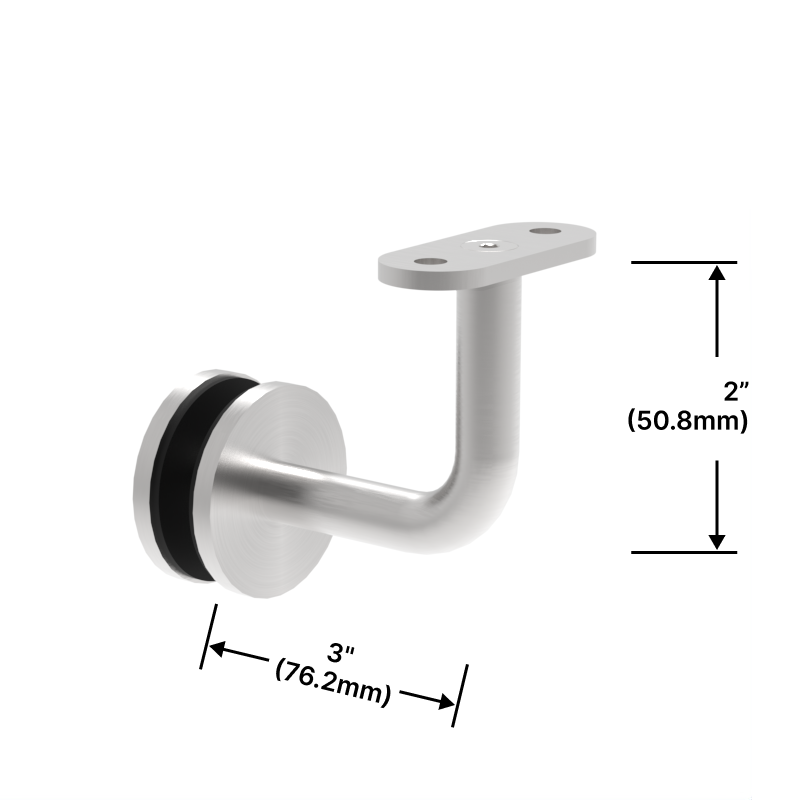

The GGH Handrail Bracket - Glass Mount is a durable and stylish solution for securing handrails to glass panels. Crafted from high-grade 316 stainless steel, it offers superior corrosion resistance, making it suitable for both interior and exterior applications.

More Product Information

Material: 316 Stainless Steel

Glass Thickness Range: 1/2" – 13/16" (12mm – 21mm)
Glass Fabrication: Requires 3/4" (19mm) diameter hole

Base Plate Diameter: 50mm

Product Dimensions
Product Length: 3-1/2" (88.20mm)
Product Width: 2" (50mm)
Product Height: 3" (75.80mm)

Thread Size: M8 Threaded

Includes: Saddle Mounting Screw, Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 2mm

Edge of Glass to Center of Product: 2-3/4" (70.20mm)

Installation Surface: Glass

Installed With: Handrail 40mm Square Saddle – 90°, 135° and 180°

Compatibility: 1-1/2", 1.9", or 2" (38, 48 or 51 mm) diameter handrail tubing through compatible saddles

Applications: Stairs, balconies, mezzanines, decks, patios, corridors, walkways, ramps and terraces

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
