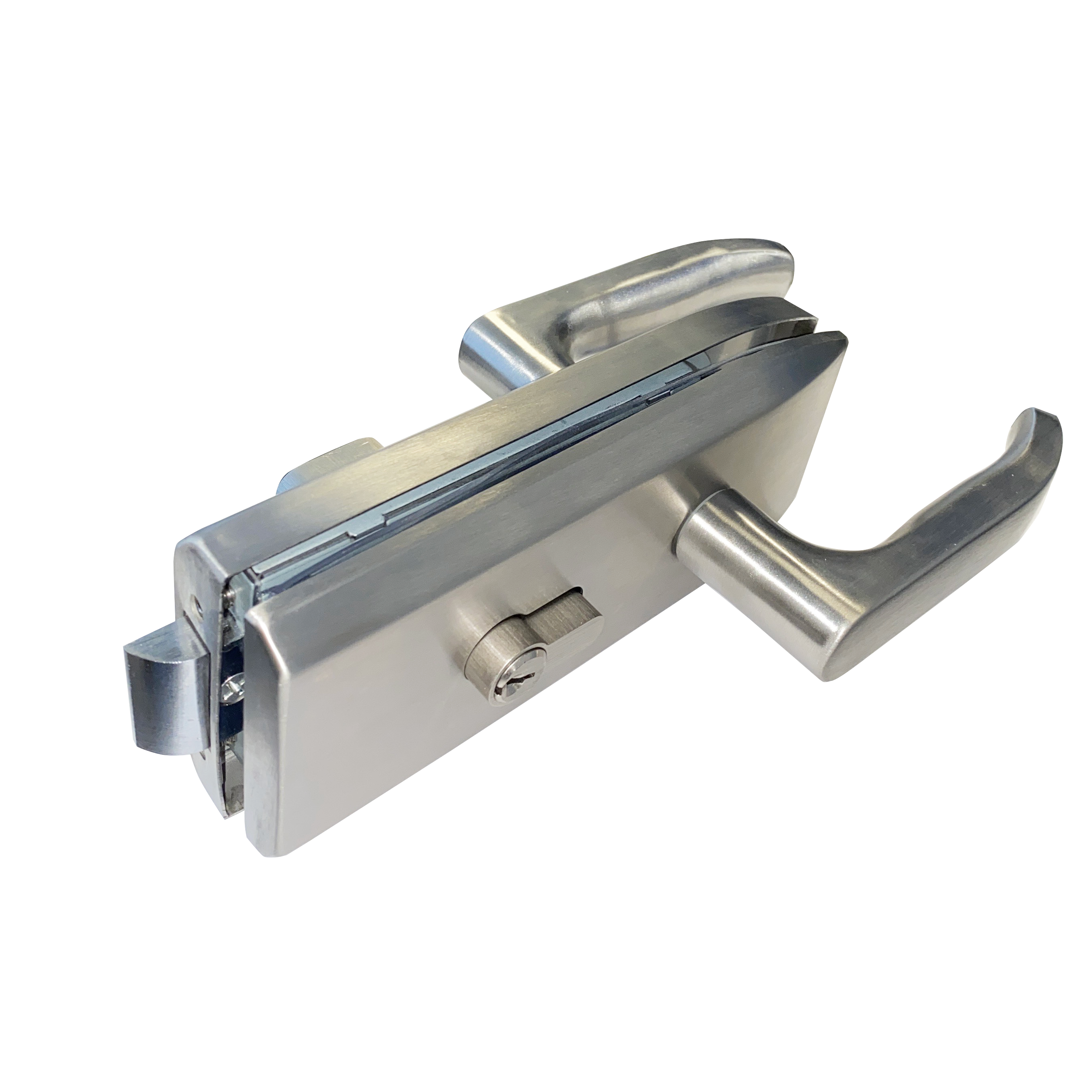

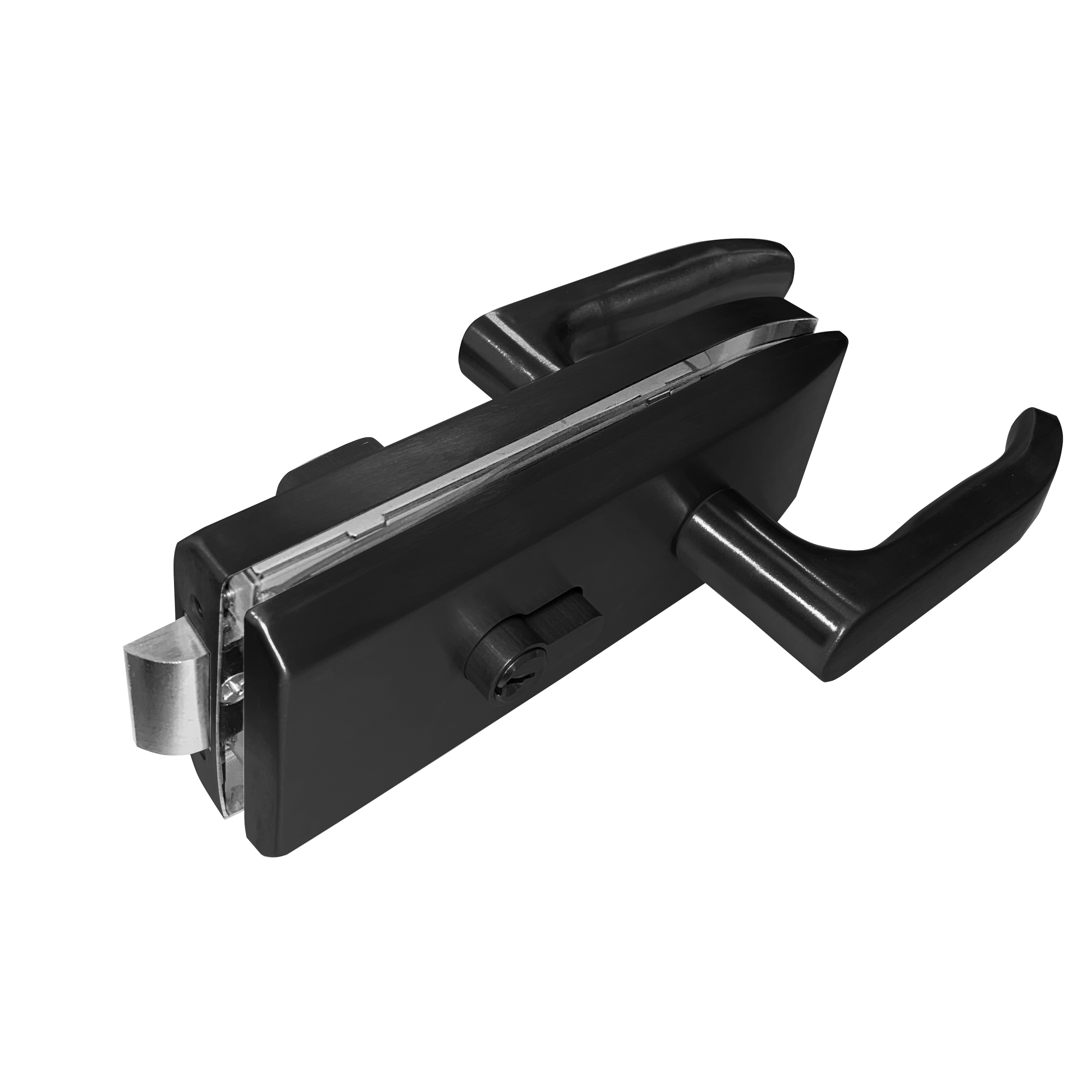

The GGH GDL Series Glass Door Lock is designed for glass-to-wall applications requiring keyed access and reliable door security. Supplied with a wall mount strike plate, this lock supports single and double door configurations while maintaining a clean appearance for pool gates, office cabins, residential glass doors, and commercial glass door systems.

More Product Information

Product Length: 9-1/2" (240.71mm)
Product Width: 5-1/8" (130.73mm)
Product Height: 2-15/16" (75mm)

Glass Specifications

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Tempered Glass
Glass Fabrication: See glass template for details

Mounting & Compatibility

Mounting Type: Glass Mount / Wall Mount
Gasket: Transparent Gaskets
Gasket Thickness: 1mm

Includes: Glass door lock with 3 keys, gaskeys, allen key, installation manual and wall mount strike plate

Compatible With: Wall mount strike plate, glass doors, single doors, and double doors

Application: Office cabins, residential glass doors, and commercial glass door systems

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
