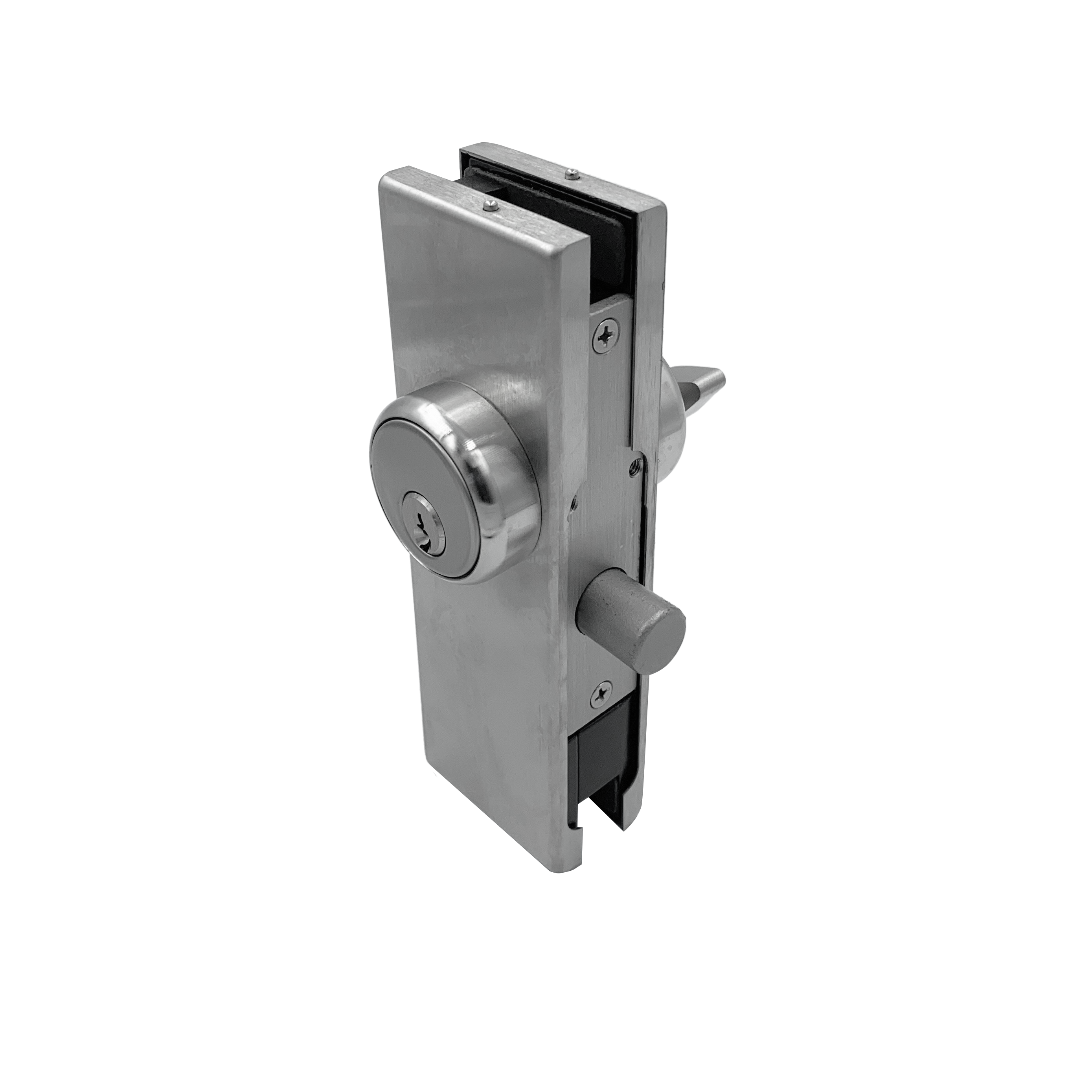

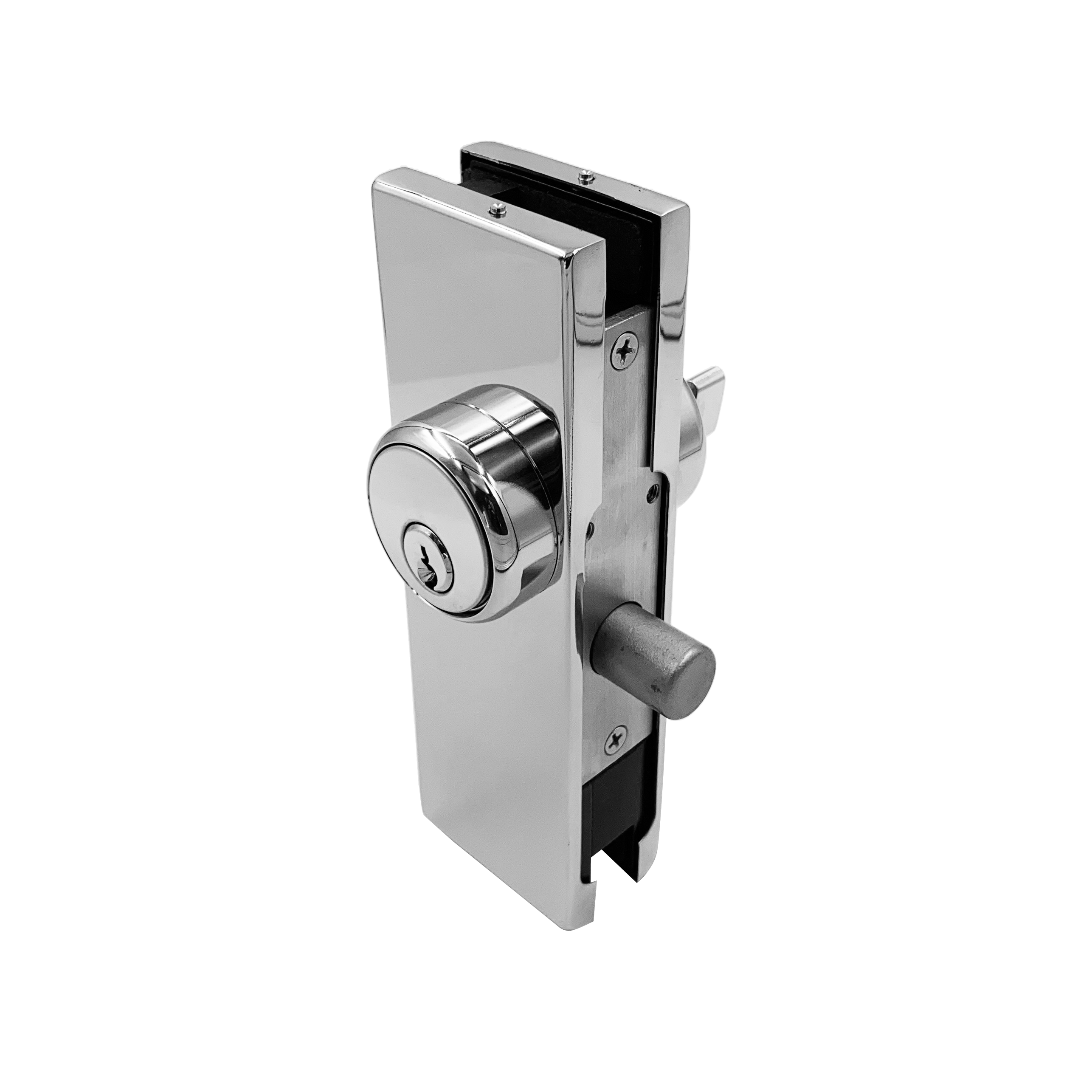

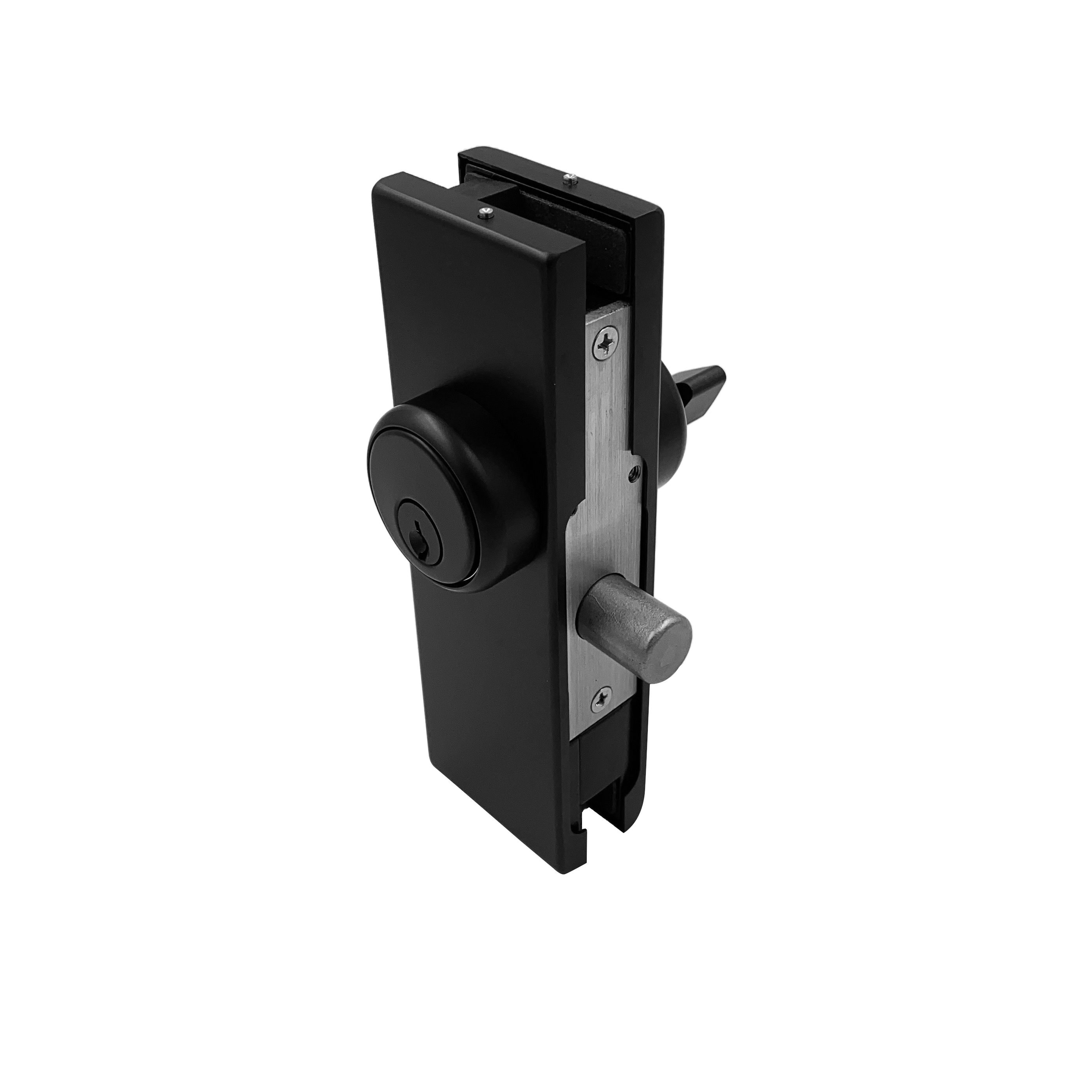

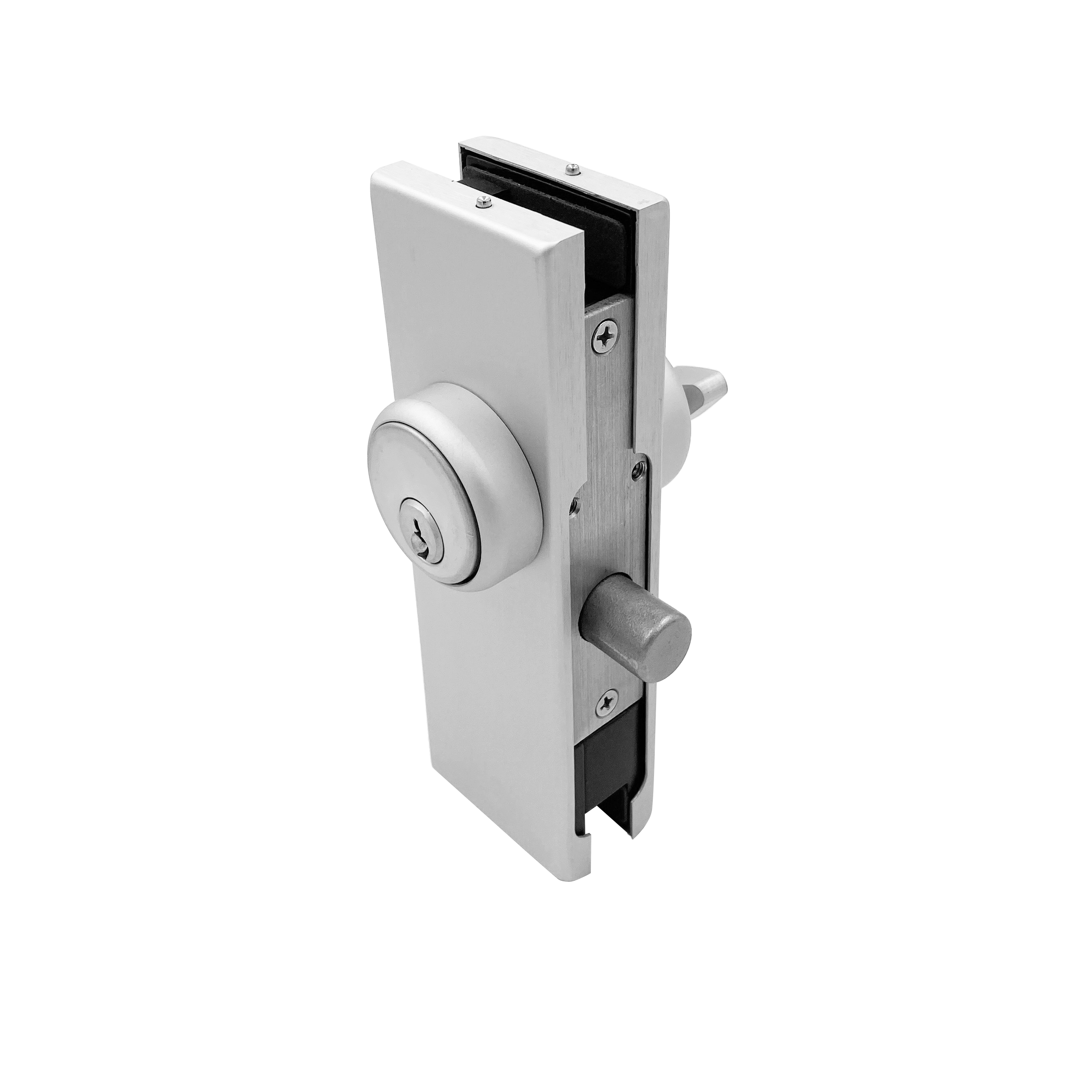

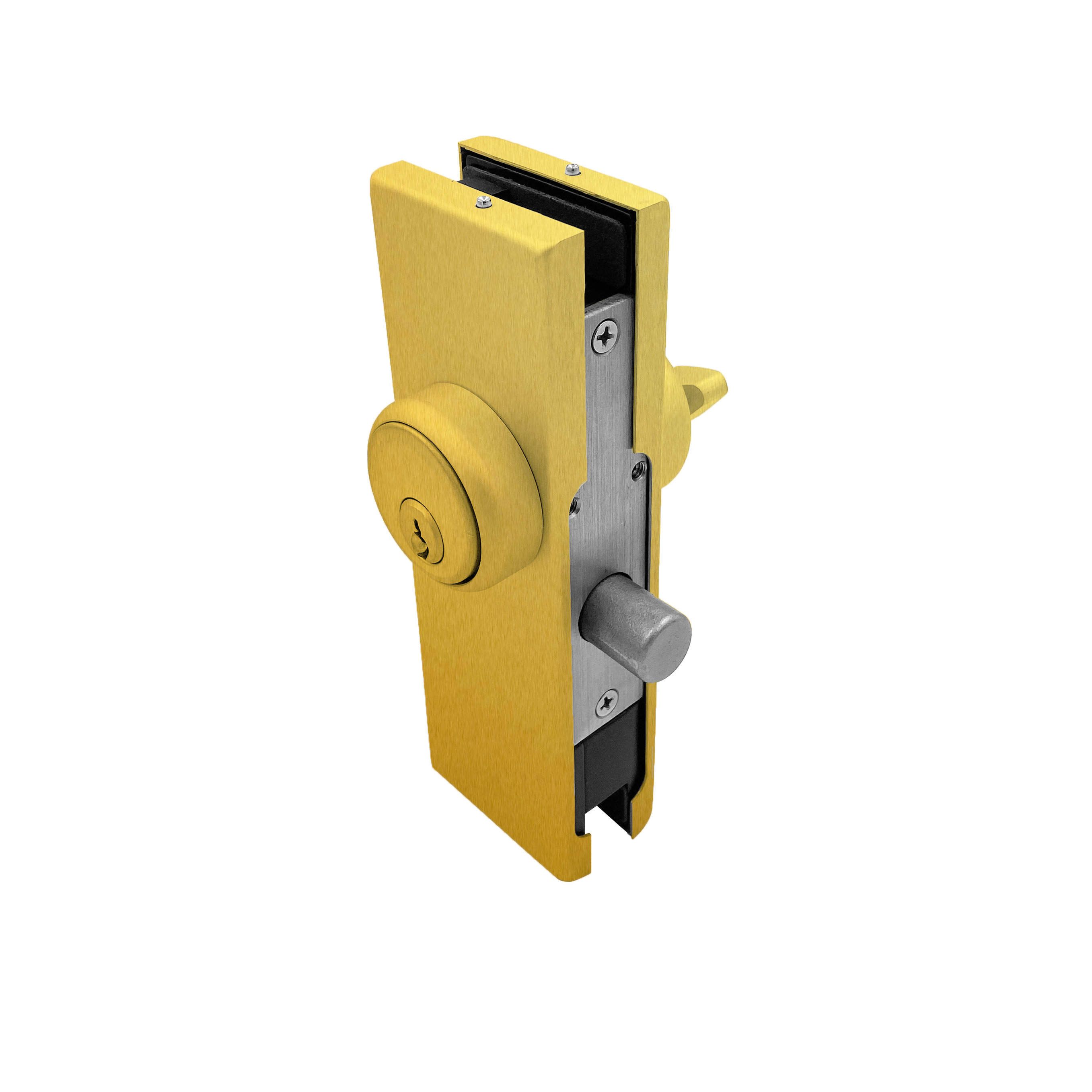

The GGH GDL Series Patch Lock is designed for frameless glass doors requiring keyed access and dependable security. Manufactured from stainless steel, this lock features an American-style cylinder and heavy-duty locking mechanism for reliable performance in commercial entrances, residential glass doors, and other frameless glass door applications.

More Product Information

Material: Stainless Steel

Product Length: 6-1/2" (164mm)
Product Width: 1-1/4" (31.60mm)
Product Height: 2-5/8" (66.50mm)

Glass Specifications

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See glass template for details

Mounting & Compatibility

Mounting Type: Glass Mount
Gasket: Black Gaskets
Gasket Thickness: 1.2mm

Includes: Glass door lock set with required screws, installation manual, gaskets, keys and allen key

Compatible With: Patch lock keepers, flat floor mount strike plates, and patch fittings

Application: Frameless glass doors, commercial entrances, and residential glass door systems

Compare To: PF205 / AMR205

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
