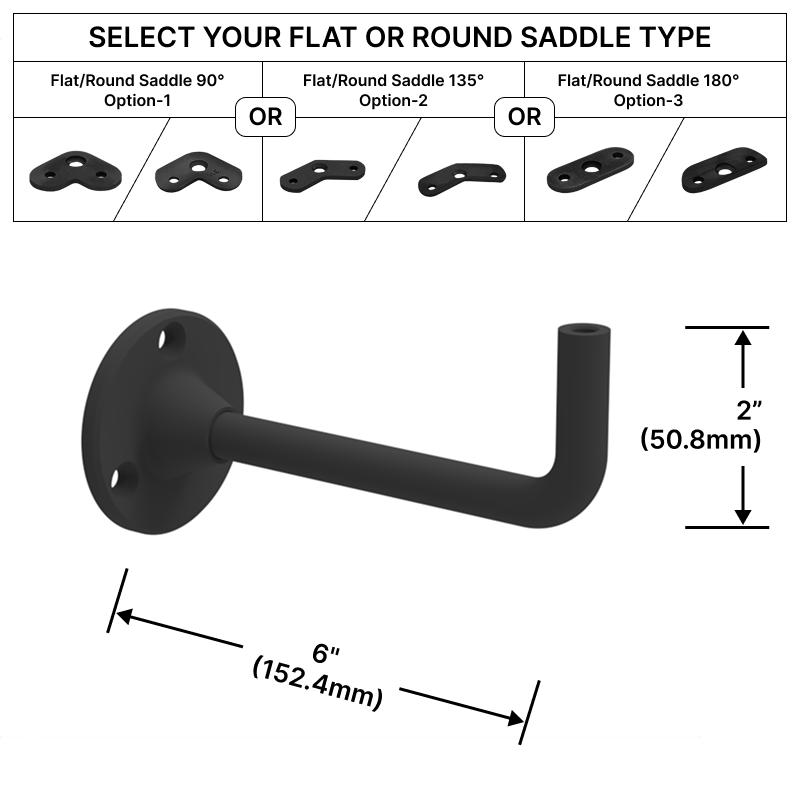

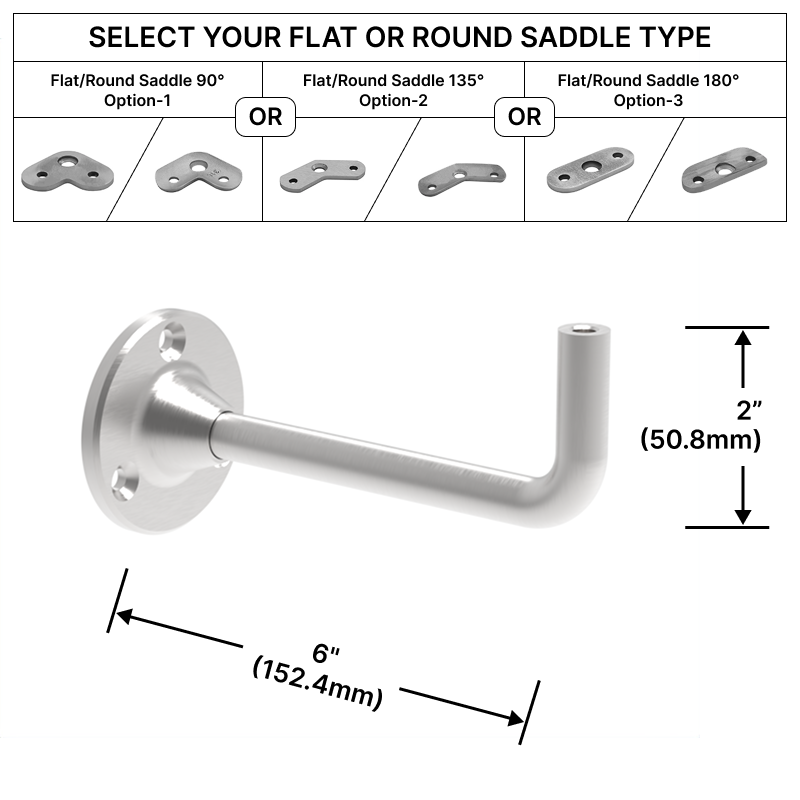

The GGH Extendable Handrail Bracket for wall mounting offers a 6" length with a round saddle and is designed for strength and durability. Made from high-grade 316 stainless steel, this bracket is ideal for both interior and exterior applications. The extendable design allows for horizontal adjustability up to 2 inches, ensuring a precise and secure fit for glass handrails.

More Product Information

Material: 316 Stainless Steel

Base Plate Diameter: 2-5/8" (68mm)
Product Length: 6-3/16" (158mm)
Product Width: 2-5/8" (68mm)
Product Height: 3-3/8" (85mm)

Mounting Fastener Size: M6 Hole
Adjustment Type: Extended Length Bracket
Distance to Outer Edge of Product: 2"
Edge to Center of Product: 6-3/16" (158mm)

Includes: Saddle Mounting Screw

Installation Surface: Wood, Wall

Installed With: Handrail 40mm Square Saddles and 42.4SAD 90°, 135° and 180° saddles
Compatibility: For 1-1/2", 1.9" or 2" (38mm, 48mm or 51mm) diameter handrail tubing through compatible saddles

Application: Both indoor and outdoor
Installed At: Stairs, Balcony, Mezzanine, Loft Edge, Patio, Deck, Outdoor Terrace, Entrance, Walkway, Ramp, Hallways, Corridors

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
