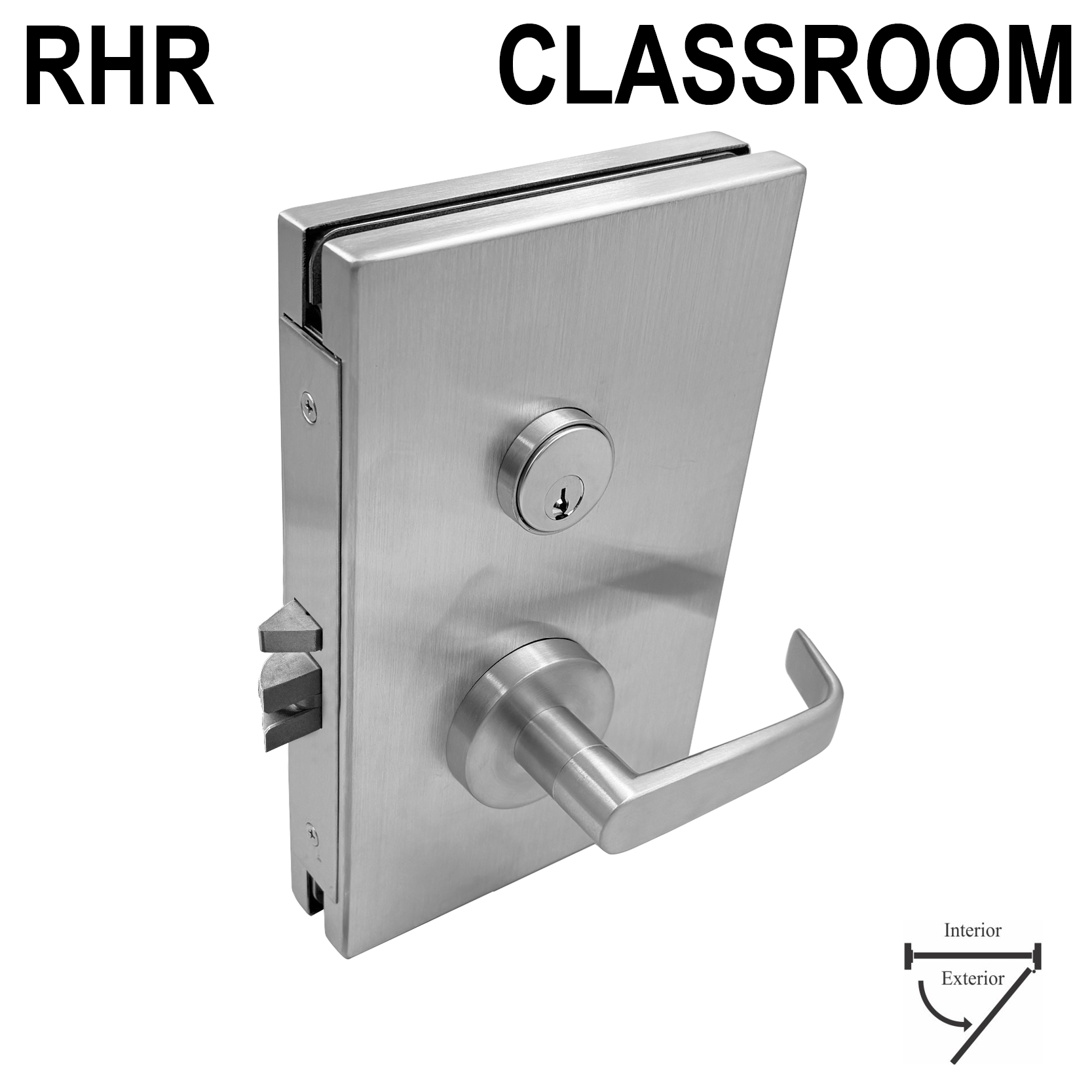

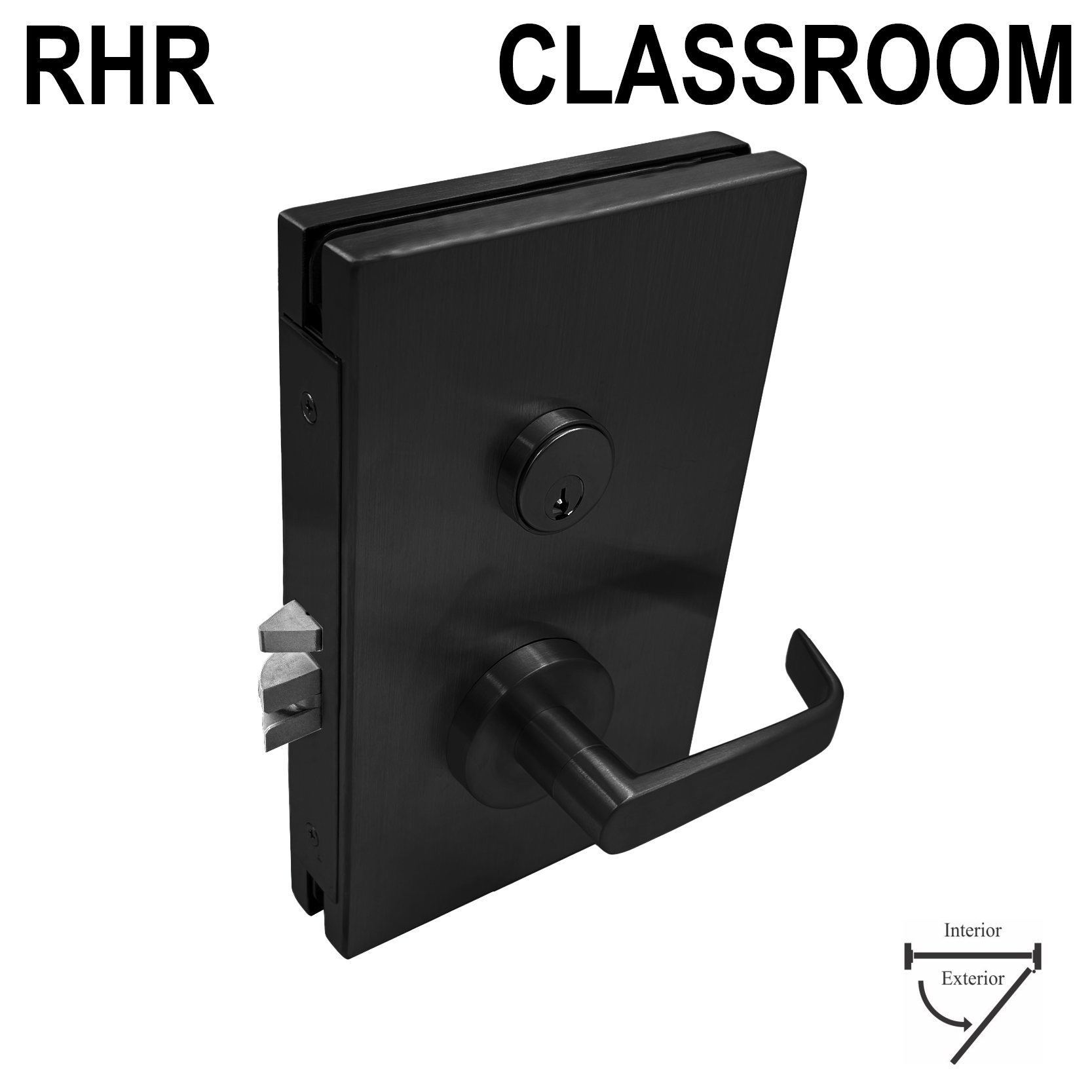

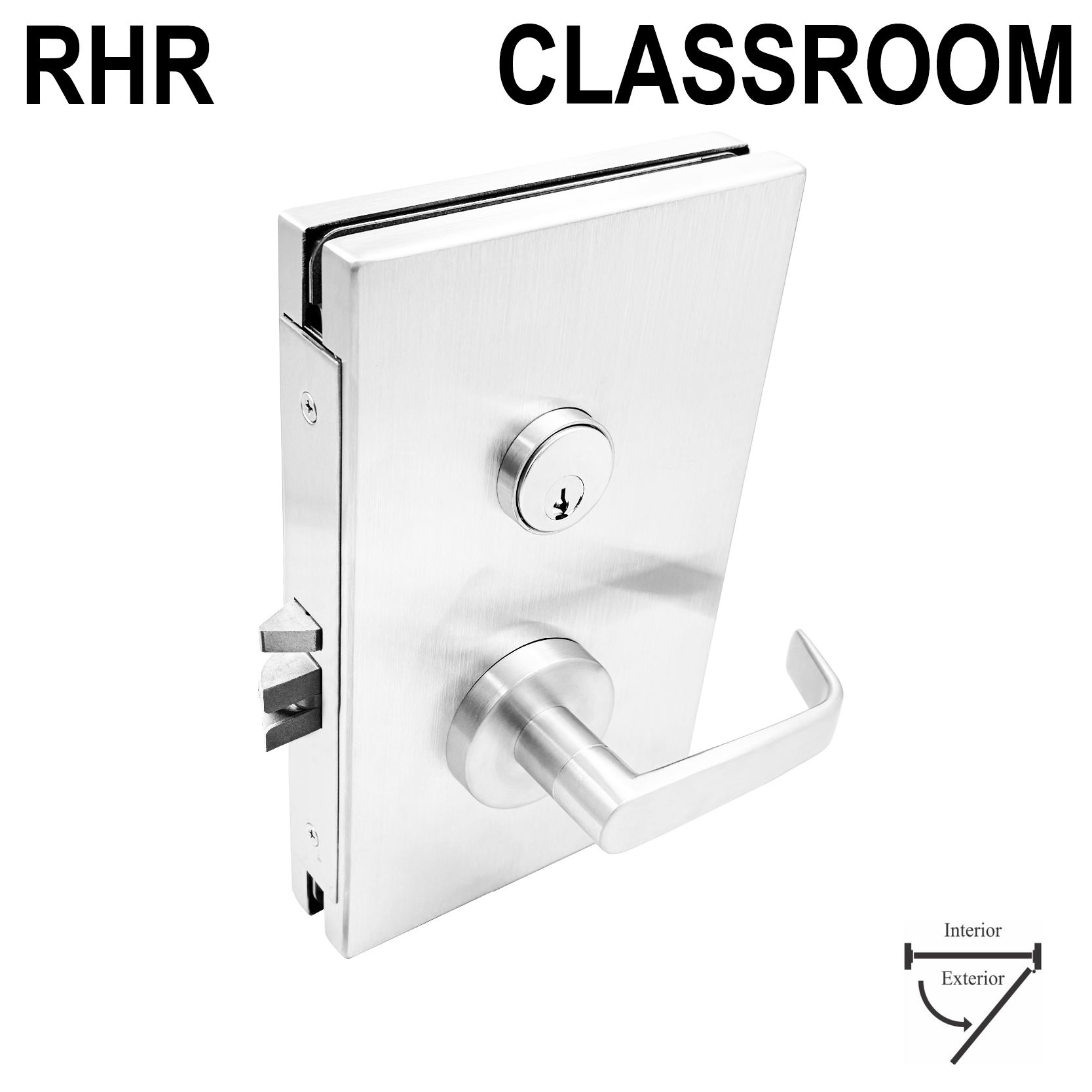

The GGH GDL Series Commercial Center Lock - Classroom Version offers a versatile and secure access solution for monolithic tempered glass doors. Ideal for use with electric strikes, these door locks are designed for educational and office spaces where controlled entry is essential, allowing for secure access from the outside while maintaining easy exit functionality on the inside.

This lock operates by allowing the latchbolt to be controlled from either side using a lever, with the option to lock the outside lever with a key. The key not only operates the latch but also unlocks the exterior lever as needed, while the inside lever remains functional at all times for convenient exit. The door opens outside with right hand side lever to open the door.

More Product Information

Material: Aluminum Body with 304 Stainless Steel Cover Plate

Product Length: 6-1/8" (154mm)
Product Width: 6-3/8" (162mm)
Product Height: 10-1/8" (258mm)

Includes: Commercial center lock set with required screws, installation manual, glass cutout and cork gaskets
Gasket: Cork Gaskets Attached
Gasket Thickness: 1mm

Mounting Type: Glass Mount
Glass Thickness Range: 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See glass template for details

Compatible With: 1/2" (12mm) monolithic tempered glass doors
Application: Classrooms, office partitions, interior glass doors, and controlled-access glass door systems

Compare To: CL610ERHR/DL611RE

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
