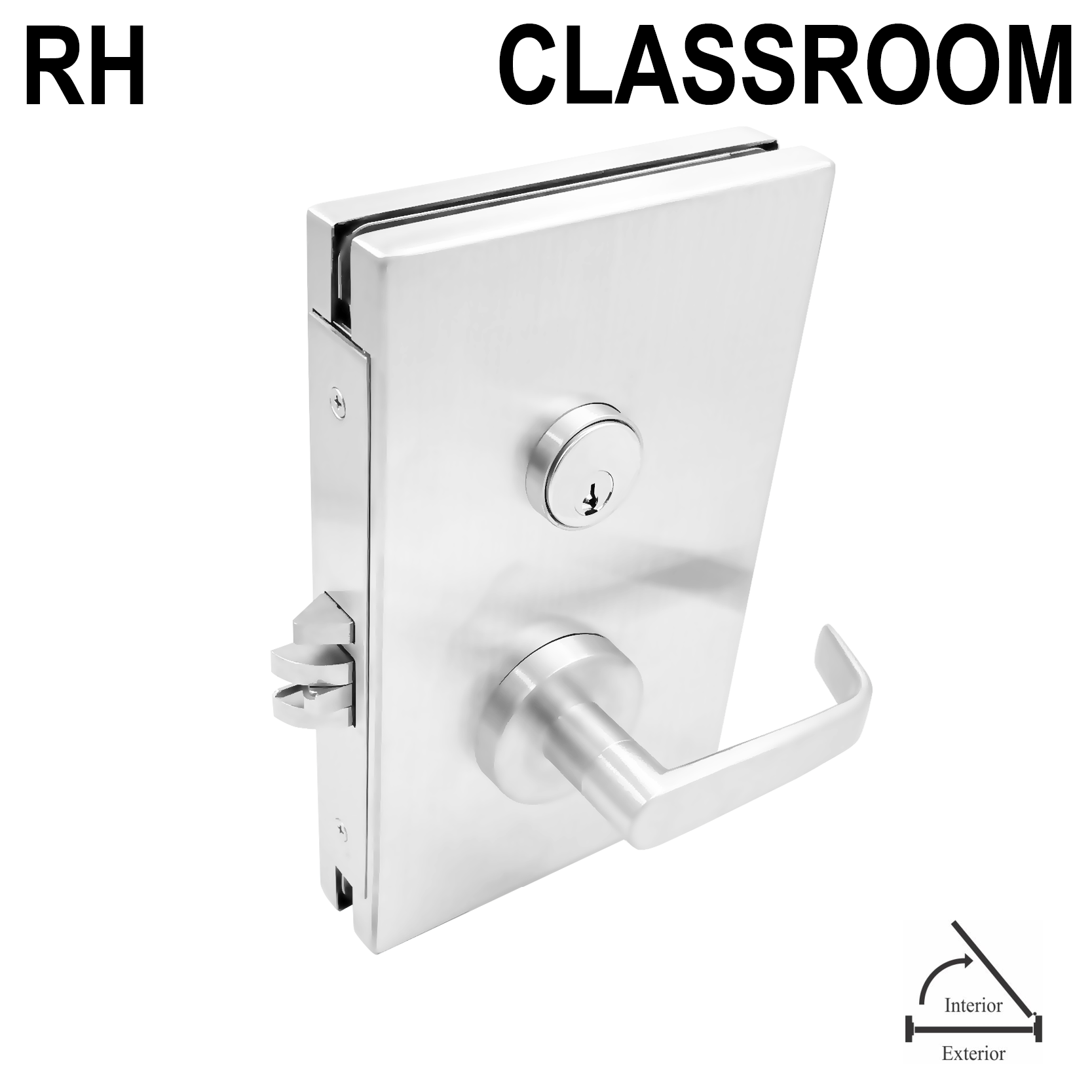

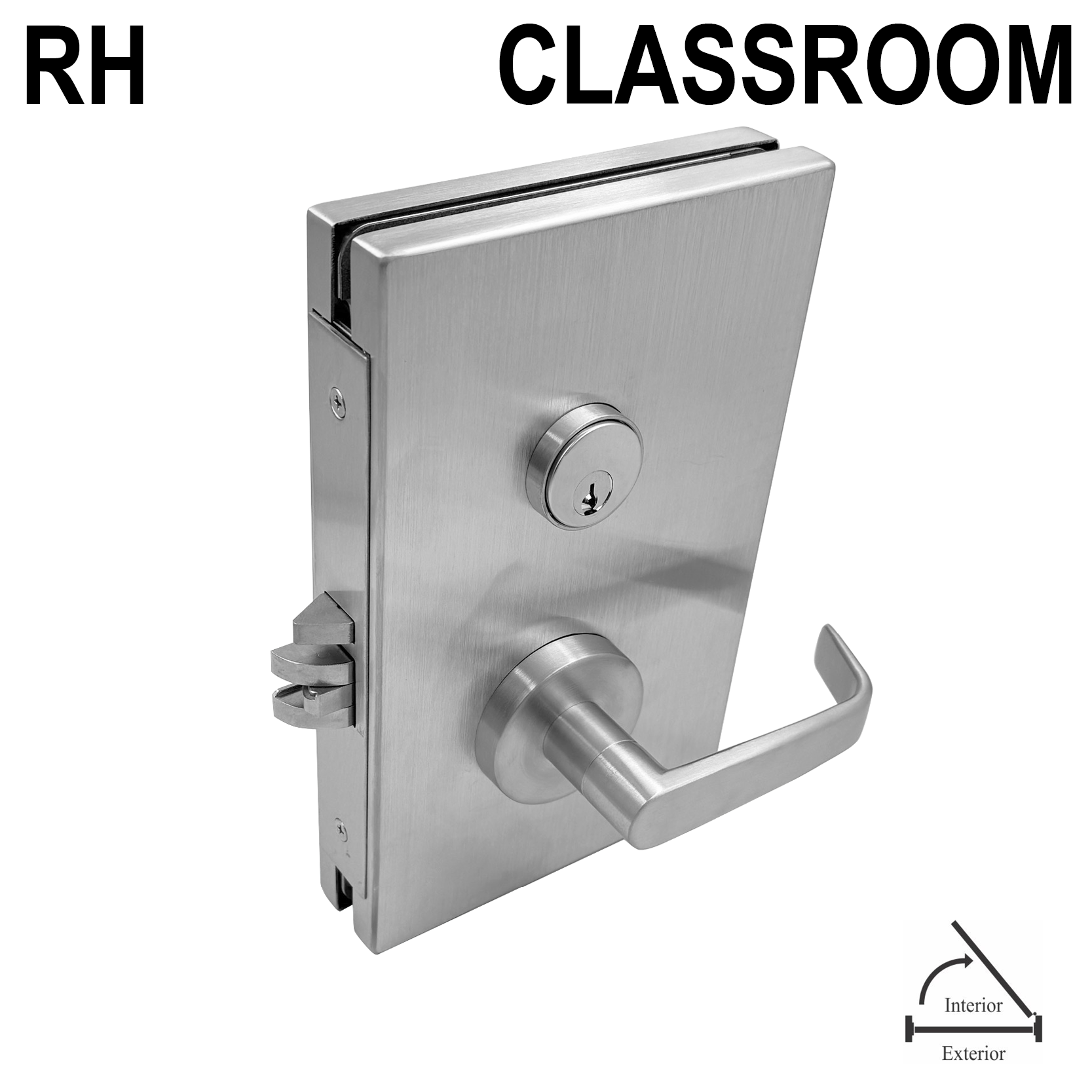

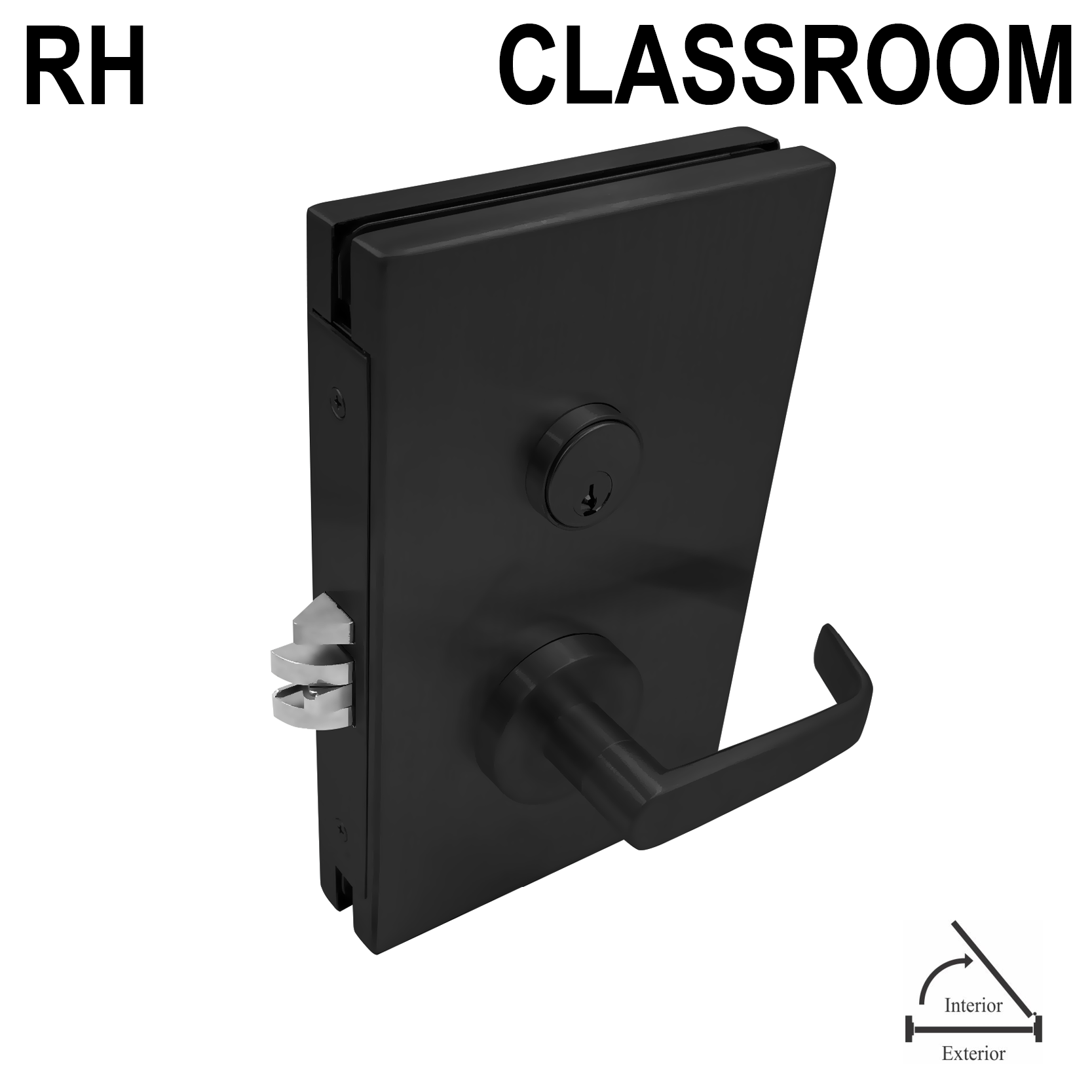

The GGH GDL Series Commercial Center Lock - Classroom Version is designed for controlled-access glass door applications where entry control is required from the exterior while maintaining simple exit from the interior. This inswing, right-hand model is suitable for classrooms, office partitions, and interior commercial glass door systems using compatible electric strikes.

More Product Information

Material: Aluminum Body with 304 Stainless Steel Cover Plate

Product Length: 6-1/8" (154mm)
Product Width: 6-3/8" (162mm)
Product Height: 10-1/8" (258mm)

Includes: Commercial center lock set with required screws, installation manual, glass cutout and cork gaskets
Gasket: Cork Gaskets Attached
Gasket Thickness: 1mm

Mounting Type: Glass Mount
Glass Thickness Range: 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See glass template for details

Compatible With: 1/2" (12mm) monolithic tempered glass doors
Application: Classrooms, office partitions, interior glass doors, and controlled-access glass door systems

Compare To: CL610ERH/DL610RE

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
