Overview

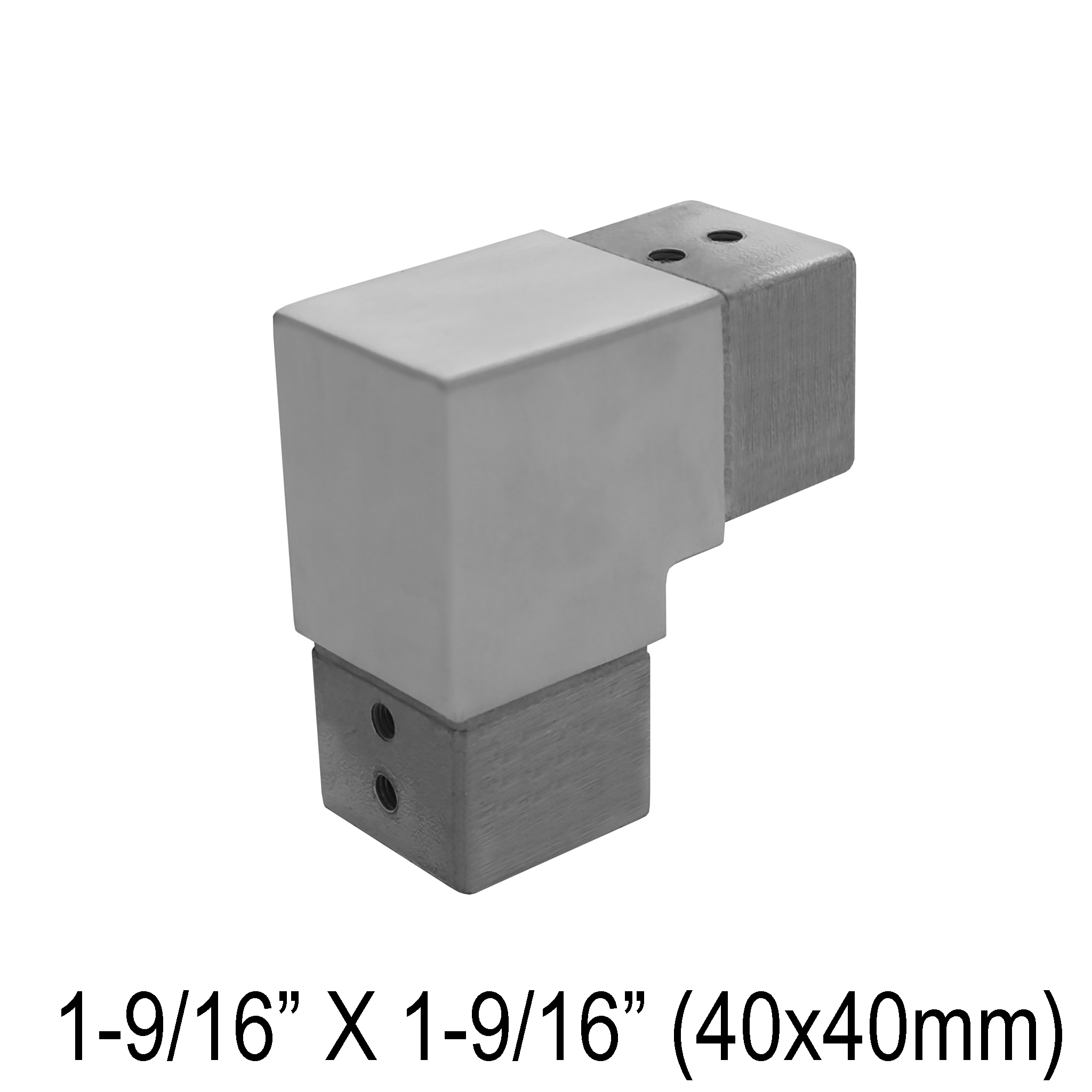

The GGH CE40 Fixed 90° Vertical Connector is designed for precise right-angle connections in square caprail systems. Made from high-quality Stainless Steel 316, it provides exceptional durability and corrosion resistance, making it ideal for both indoor and outdoor applications.
More Product Information
Product Width: 3-1/8" (80mm)
Product Height: 3-1/8" (80mm)
Product Length: 1-9/16" (40mm)
Material: 316 Stainless Steel
For technical inquiries: technical@ggh-usa.com
Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary
| Length | 3-1/8 in. (80.00 mm) |
|---|---|
| Width | 3-1/8 in. (80.00 mm) |
| Height | 1-5/8 in. (40.00 mm) |
| Weight | 0.99 lbs. (0.4496 kg) |
