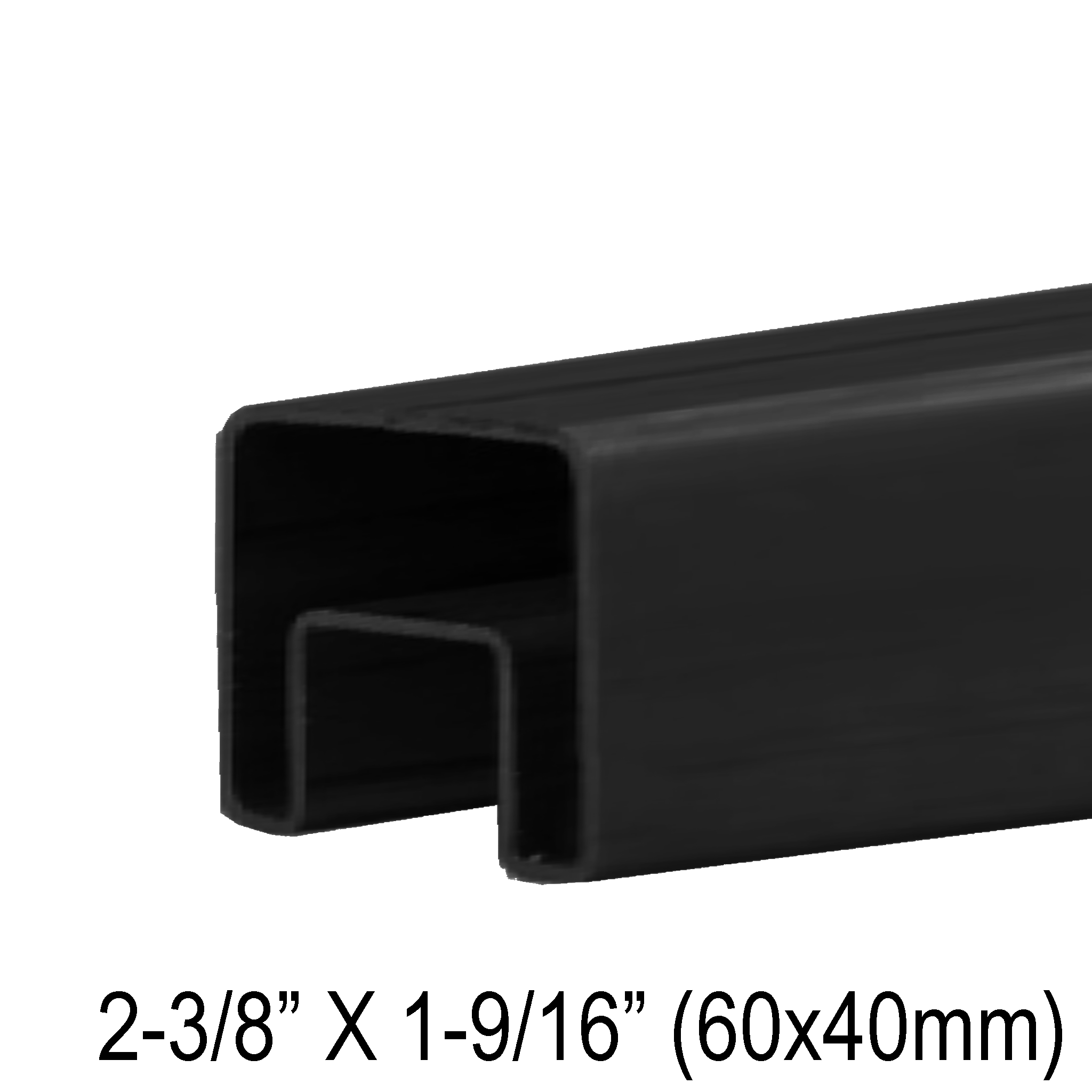

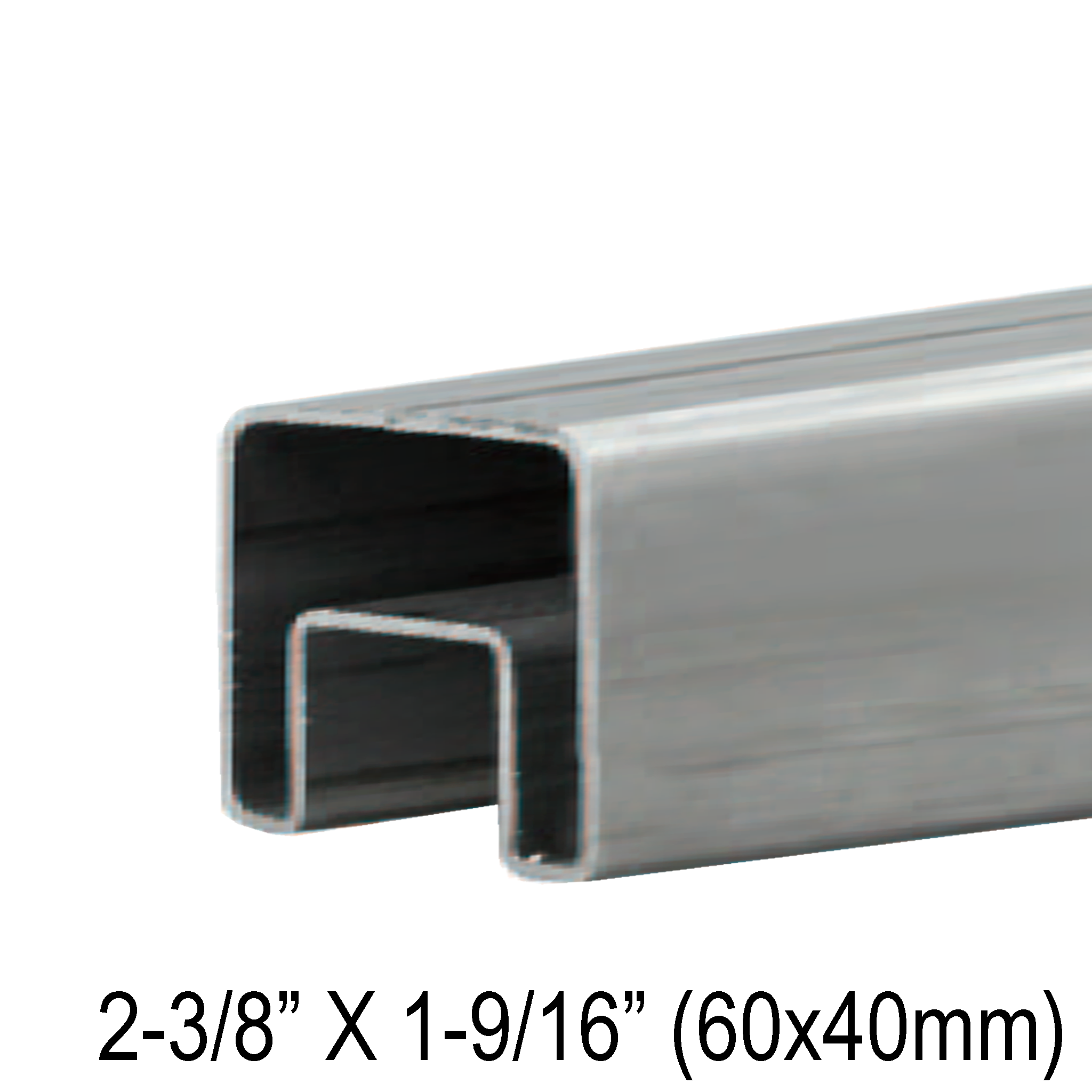

![[CR60X40] CRAIL Series GGH Caprail - 19' - 60 X 40mm Rectangle (SS316)](http://ggh-usa.com/cdn/shop/files/GGS-CAPRAIL-60X40SQ-BS.png?v=1774977340&width=3840)
![[CR60X40] CRAIL Series GGH Caprail - 19' - 60 X 40mm Rectangle (SS316)](http://ggh-usa.com/cdn/shop/files/GGS-CAPRAIL-60X40SQ-MB.png?v=1774977340&width=3840)
Overview
The CR60X40 Caprail is a premium rectangular handrail solution, crafted from high-gauge 316 stainless steel for superior corrosion resistance and durability. Designed for both interior and exterior applications, this caprail provides structural support and a sleek, modern aesthetic.
More Product Information
Product Length: 19'
Product Width: 2-3/8" (60.00mm)
Product Height: 1-5/8" (40.00mm)
Material: 316 Stainless Steel
Rubber Material: EPDM
Rubber Thickness: 1mm
Glass Thickness Range: 3/8" (10mm) to 7/8" (21mm)
Glass Type: Tempered Glass
Compare To: SC20PS10/SRF20PS
For technical inquiries: technical@ggh-usa.com
Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
| Length | 228 in. (5791.20 mm) |
|---|---|
| Width | 2-3/8 in. (60.00 mm) |
| Height | 1-5/8 in. (40.00 mm) |
| Weight | 32.24 lbs. (14.6235 kg) |
