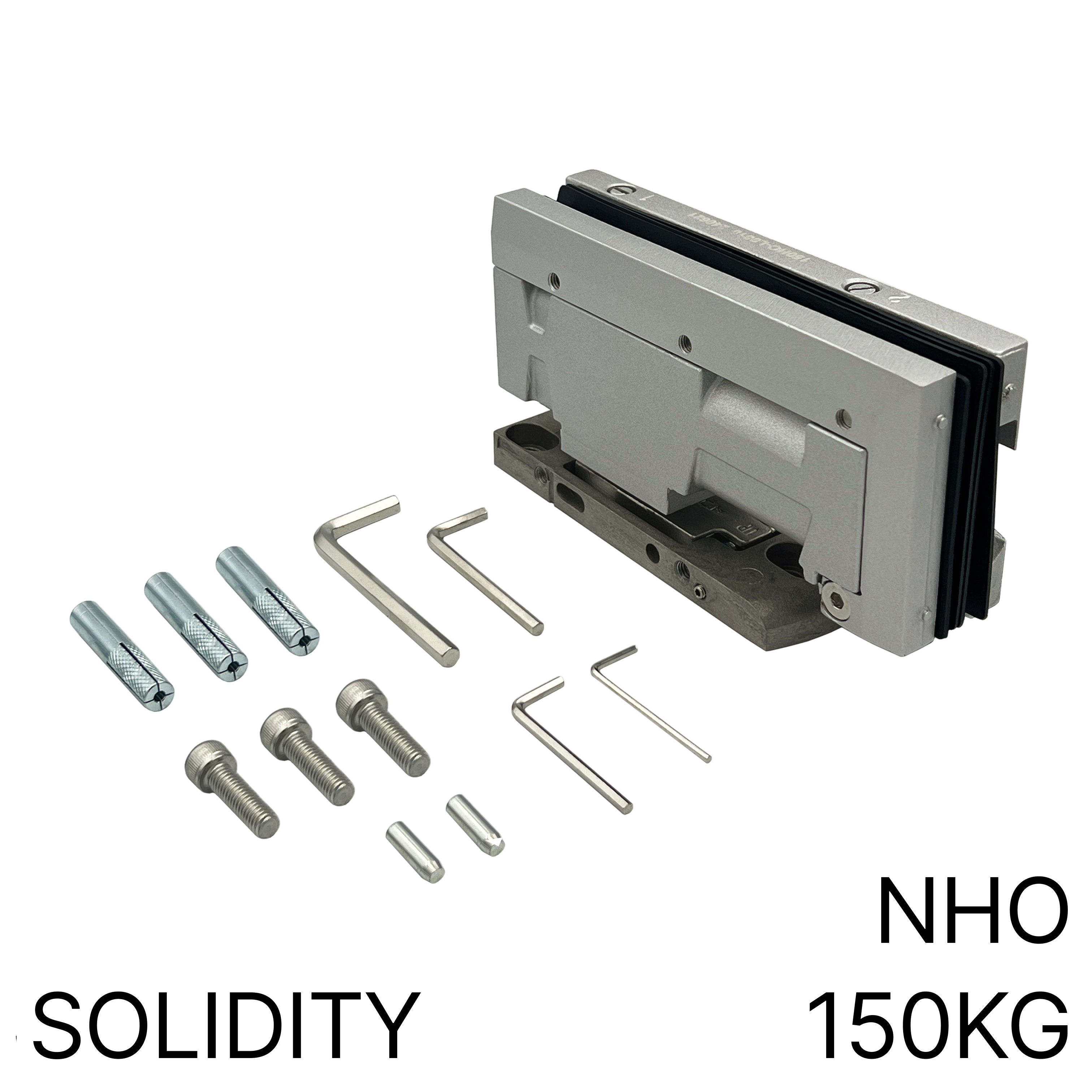

The GGH SOL Series Hydraulic Bottom Patch Fitting is a top-tier solution for commercial doors, office partitions, interior fit-ups, wine rooms, and more. It is designed for seamless integration with our Patch & Transom fittings & Commercial Ladder Pulls. Engineered for high-performance and durability, this fitting supports 10mm (3/8") and 12mm (1/2") glass and features precise manufacturing tolerances of 0.005mm to 0.01mm. It is cycle-tested for up to 500,000 open/close operations, ensuring reliability in high-traffic areas.

The system offers two adjustable speed settings with a Non Hold Open function to ensure the glass door closes safely and securely upon closing. It is designed to handle a maximum door weight of 150KGs (330 LBs) and a door width of up to 48" (1219.2mm). The bottom plate allows for convenient adjustment, ensuring flexibility during installation.

More Product Information

Material: 316 Stainless Steel (Cover Plate)

Glass Thickness Range: 10mm (3/8") and 12mm (1/2")
Glass Type: Monolithic Tempered Glass
Glass Fabrication: Notch / Patch Cutout Required

Maximum Door Weight: 150kg (330 lbs)
Maximum Door Width: 48" (1219mm)
Maximum Door Height: 102" (2591mm)

Tested Cycles: 500,000

Includes: Allen Keys, Anchors, Screws
Gasket Material: EPDM
Gasket Thickness: 1.5mm

Function: Provides controlled closing for large glass doors without hold-open positioning

Installed With: Top Patch with Pivot Insert, Patch Pivot, Ladder Pull, Glass Door Lock, Commercial U-Channel

Application: Commercial interiors, office doors, partitions, high-traffic entryways

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
