GGH’s Solidity Series Hydraulic Bottom Patch Fitting is a top-tier solution for commercial doors, office partitions, interior fit-ups, wine rooms, and more. It is designed for seamless integration with our Patch & Transom fittings & Commercial Ladder Pulls. Engineered for high-performance and durability, this fitting supports 10mm (3/8") and 12mm (1/2") glass and features precise manufacturing tolerances of 0.005mm to 0.01mm. It is cycle-tested for up to 500,000 open/close operations, ensuring reliability in high-traffic areas.

More Product Information

Material: 316 Stainless Steel (Cover Plate)

Glass Thickness Range: 10mm (3/8") and 12mm (1/2")
Glass Type: Monolithic Tempered Glass
Glass Fabrication: Notch / Patch Cutout Required

Maximum Door Weight: 100kg (220 lbs)
Maximum Door Width: 39-3/8" (1000mm)
Maximum Door Height: 102" (2591mm)

Tested Cycles: 500,000

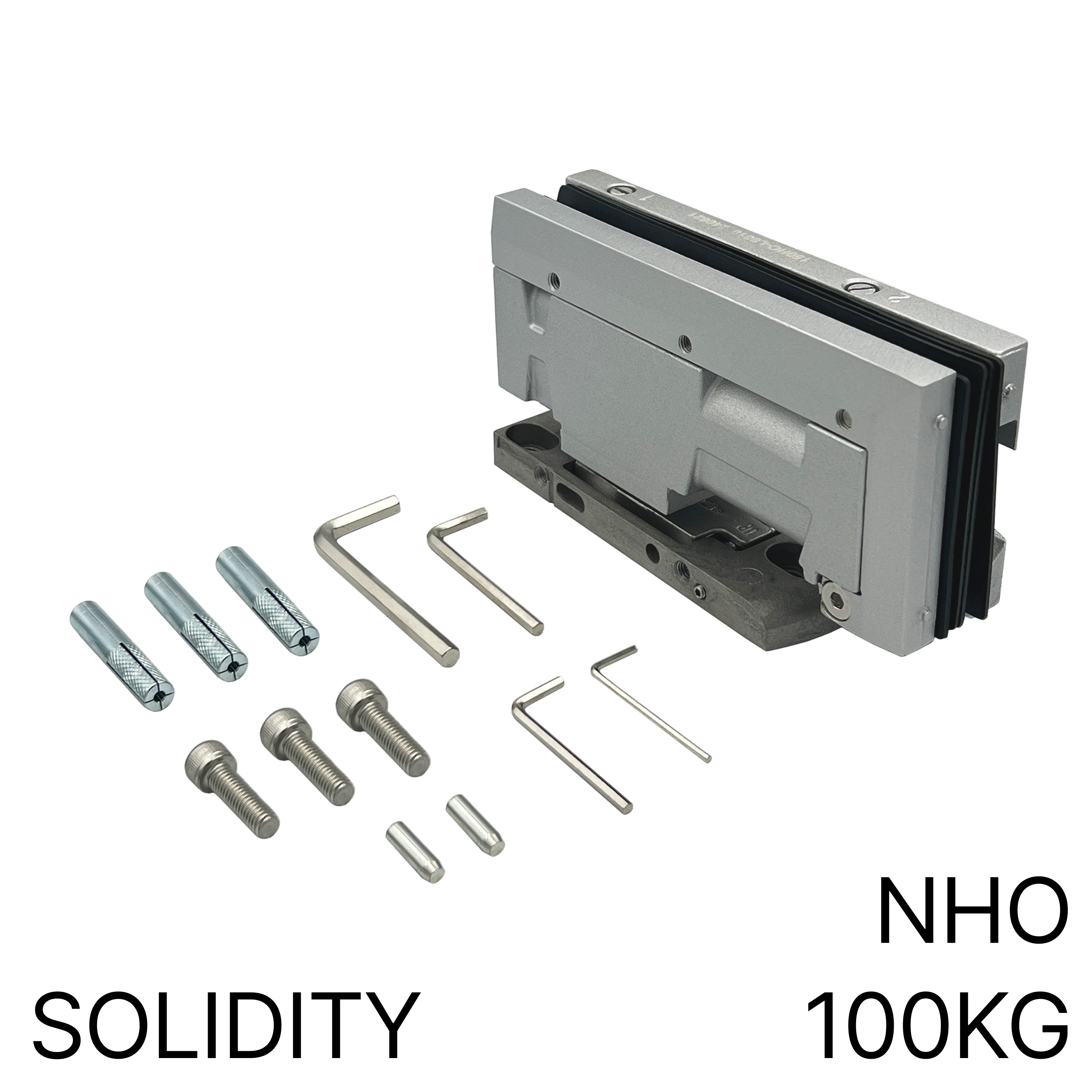

Includes: Cover Plates, Allen Keys, Anchors, Screws
Gasket Material: EPDM
Gasket Thickness: 1.5mm

Function: Provides controlled hydraulic closing for glass doors without hold-open positioning

Installed With: Top Patch with Pivot Insert, Patch Pivot, Ladder Pull, Glass Door Lock, Commercial U-Channel

Application: Offices, commercial entry doors, partitions, interior doors
