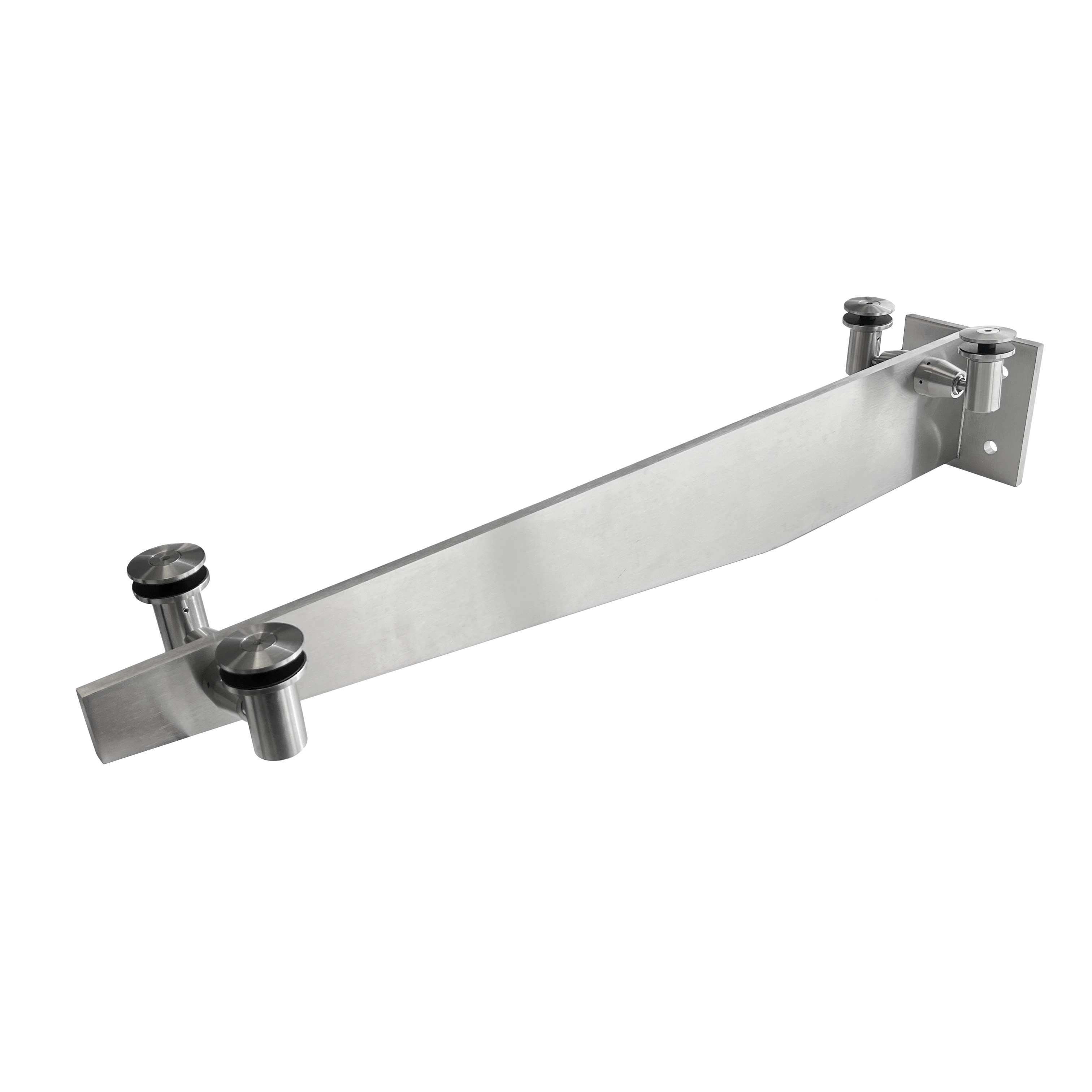

The Glass Canopy Bracket offers a minimalist and stylish solution for supporting glass awnings. Designed with a 36" protrusion, it provides a seamless and modern look while requiring minimal framing and support. This bracket is ideal for creating a protective canopy over entranceways, walkways, patios, and more, providing both shelter and an aesthetic upgrade to any space.

Material: 316 Stainless Steel

Product Length (Projection): 36" (913.70mm)
Product Width: 6" (152.00mm)
Product Height: 6" (152.00mm)

Glass Thickness Range: 1/2" (12mm)
Glass Type: Tempered Monolithic or Laminated Glass
Glass Fabrication: 3/4" (19mm) Diameter Hole

Mounting Type: Wall Mount

Includes: Glass Canopy Bracket, 4 Arm Connectors, Gaskets, Screws
Gasket Material: EPDM
Gasket Thickness: 1.5mm

Advantages:

It serves as a transitional zone, effortlessly bridging the interior and exterior spaces, making it an ideal choice for commercial areas like shopping malls and office buildings. he glass panels can be tailored in color, transparency, and texture, enabling architects to craft distinctive and visually captivating designs.
Provides protection from rain, snow, and sunlight, making outdoor areas usable year-round, perfect for cafes, restaurants, and recreational areas.
Contributes to energy efficiency by allowing natural light to reduce reliance on artificial lighting and regulating temperature with low emissivity glass.

Applications:
Ideal for architectural designs, including entranceways, walkways, patios, and commercial spaces such as cafes and offices. Offers a sleek, modern look while protecting from the elements.

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
